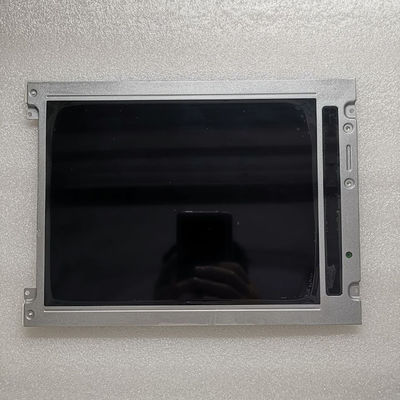

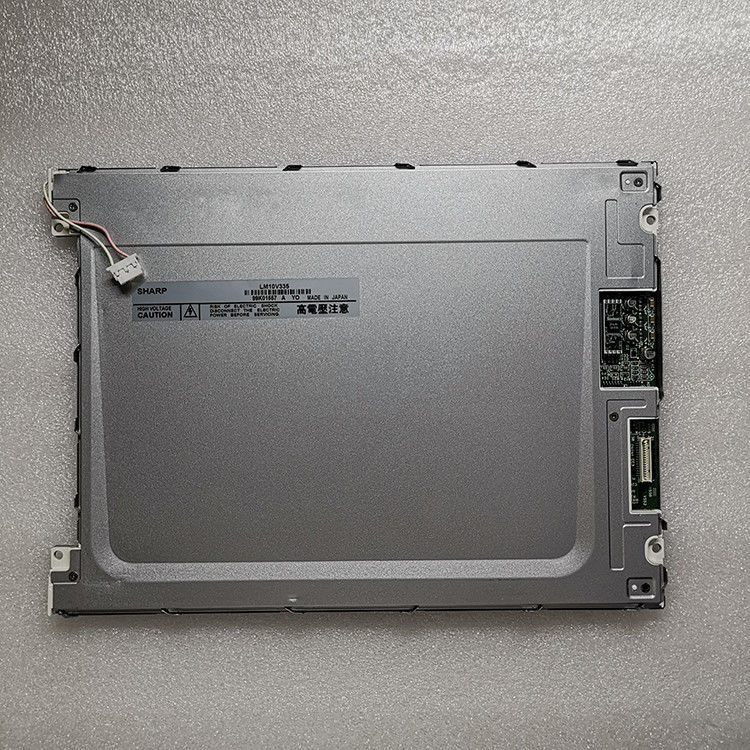

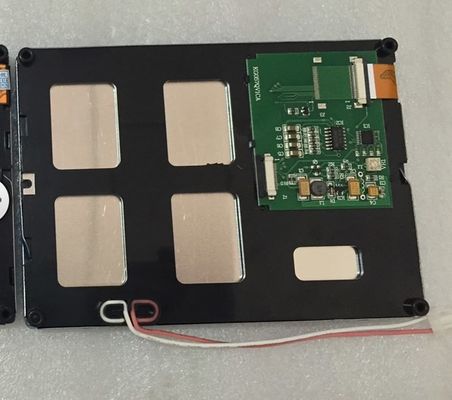

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LM10V335 |
|---|---|---|---|
| Brightness: | 70 Cd/m² (Typ.) | Panel Size: | 10.4INCH |
| Pixel Format: | RGB Vertical Stripe | Bezel Opening: | 215.2(W)×162.4(H) Mm |
| Lamp Type: | 1 Pcs CCFL , 25K Hours , Without Driver | Signal Interface: | Parallel Data (8-bit) , 31 Pins Connector |
| Resolution: | 640(RGB)×480, VGA, 76PPI | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Detail : | Manufacturer | SHARP | Model Name | LM10V335 |
|---|---|---|---|---|
| Panel Type | CSTN-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -25 ~ 60 °C |
| Vibration Level | - | RoHS |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] | |
| Physical Size : | Active Viewing | 211.18(W)×158.38(H) mm | Overall Dim. | 264(W)×193.6(H) mm |
| Bezel Opening | 215.2(W)×162.4(H) mm | Overall Depth | 8.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Detail : | Mass | 450g (Typ.) | Surface | - |
| Basic Information : | Luminance | 70 cd/m² (Typ.) | Contrast Ratio | 30 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 220/80 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 30/30/25/15 (Typ.)(CR≥5) | Operating Mode | STN, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.275; Wy:0.320 | Support Color | Color |
| Color Temperature | 9154K | White Uniformity | - |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 25K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 5.5mA (Typ.) | Input Voltage | 510V (Typ.) | ||
| Frequency | 20/70KHz (Min./Max.) | Turn-on Voltage | 760/1300V (Max.)(Ta=+25/0℃) | |||
| Consumption | 2.8W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
| Signal Electrical : | Input Current | 210/320mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.05/1.60W (Typ./Max.) | Signal Interface | Parallel Data (8-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9B-31P-1V | 1 pcs | 1.0 mm | 31 pins | ||
LM10V335 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.18(W)×158.38(H) mm, outline size of 264(W)×193.6(H)×8.5(D) mm, viewing area size of 215.2(W)×162.4(H) mm, net weight of 450g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM10V335 can provides 70 cd/m² display brightness 30:1 transimissive contrast ratio, 30/30/25/15 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 220/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 25K hours, external backlight driver is additionally needed.
