Product Details:
|
| Panel Model: | LM32010P | Panel Size: | 4.7inch |
|---|---|---|---|
| Panel Brand: | Sharp | Lamp Type: | 1 Pcs CCFL , Without Driver |
| Brightness: | 80 Cd/m² (Typ.) | Resolution: | 320×240, QVGA, 84PPI |
| Signal Interface: | Parallel Data (4-bit) , 12 Pins Connector | Environment: | Operating Temp.: 0 ~ 45 °C ; Storage Temp.: -25 ~ 60 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LM32010P | FSTN-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 45 °C | -25 ~ 60 °C | - |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 80 cd/m² (Typ.) | STN, Black/White (Negative), Transmissive | 12:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | - | 400 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | Monochrome | - |
| Screen Size : | 4.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320×240, QVGA | Rectangle | 0.300×0.300 mm | 0.300×0.300 mm [84PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 95.97×71.97 mm | 100.0×76.0 mm | 148×107 mm | 8.0 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 140g (Typ.) | - | - | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 10.0mA (Typ.) | 170/240mW (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel Data (4-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| molex | 52103-1217 | 1 pcs | 12 pins | 1.0 mm | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | - | 1 pcs | - | - | |
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Wire | - | ||||

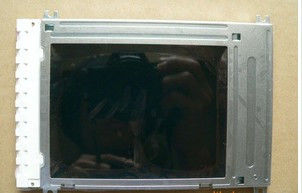

LM32010P supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 95.97(W)×71.97(H) mm, outline size of 148(W)×107(H) mm, viewing area size of 100.0(W)×76.0(H) mm, net weight of 140g (Typ.). As a STN, Black/White (Negative), Transmissive LCM product, LM32010P can provides 80 cd/m² display brightness 12:1 transimissive contrast ratio , and response time of 400 (Typ.)(Tr+Td) ms., thus presenting a palette of Monochrome colors.
