Product Details:
|
| Diagonal Size: | 4.7 Inch | Model: | LM32018T |
|---|---|---|---|
| Luminance: | 150 Cd/m² (Typ.) | Outline Dim.: | 145(H)×93(V) Mm |
| Pixel Format: | 320×240 [QVGA] 84PPI | Light Source: | CCFL [1 Pcs] , W/O Driver |
| Environment: | Operating Temperature: 0 ~ 45 °C ; Storage Temperature: -25 ~ 60 °C | Operating Mode: | STN, Blue Mode (Negative), Transmissive |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Pixel Features : | Number of Pixel | 320×240 [QVGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.300×0.300 mm | Pixel Pitch(W×H) | 0.300×0.300 mm [84PPI] | |
| Physical Size : | Active Viewing | 95.97(W)×71.97(H) mm | Overall Dim. | 145(W)×93(H) mm |
| Bezel Opening | 100.0(W)×75.0(H) mm | Overall Depth | 7.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes | |||
| Other Detail : | Mass | 115g | Surface | - |
| Basic Information : | Luminance | 150 cd/m² (Typ.) | Contrast Ratio | 6 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 220/215 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 25/25/15/25 (Typ.)(CR≥4) | Operating Mode | STN, Blue mode (Negative), Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | - | |
| Lamp Electrical : | Input Current | 5.0±1mA | Input Voltage | 230±23V | ||
| Frequency | - | Turn-on Voltage | 800V (Max.) | |||
| Consumption | 1.15W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
| Signal Electrical : | Input Current | 1.3/7.2mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 144/216mW (Typ./Max.) | Signal Interface | Parallel Data (8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 52207-1217 | 1 pcs | 1.0 mm | 12 pins | ||

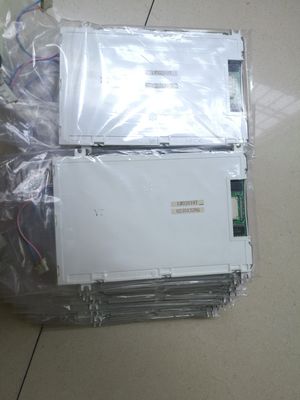

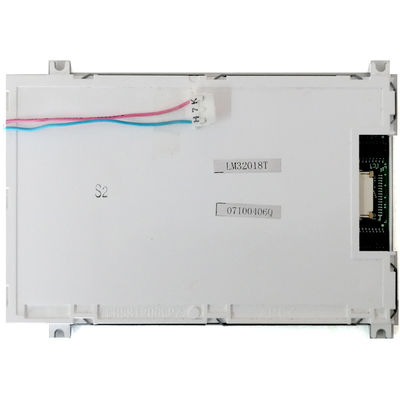

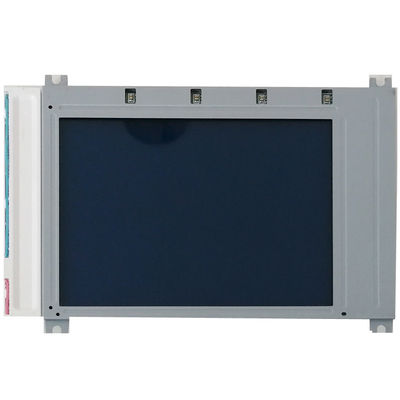

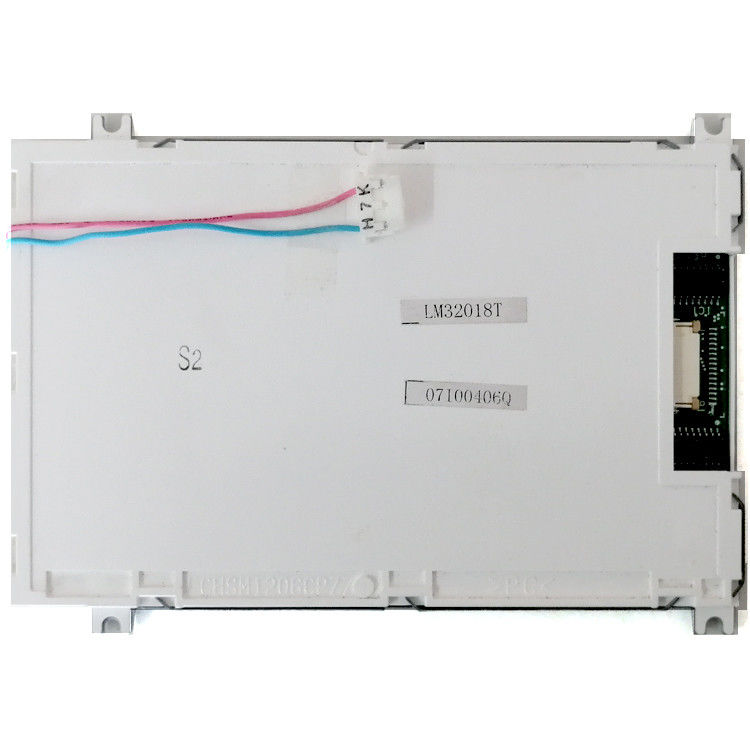

LM32018T supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 95.97(W)×71.97(H) mm, outline size of 145(W)×93(H) mm, viewing area size of 100.0(W)×75.0(H) mm, net weight of 115g. As a STN, Blue mode (Negative), Transmissive LCM product, LM32018T can provides 150 cd/m² display brightness 6:1 transimissive contrast ratio, 25/25/15/25 (Typ.)(CR≥4) (L/R/U/D) viewing angle , and response time of 220/215 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
