Product Details:
|

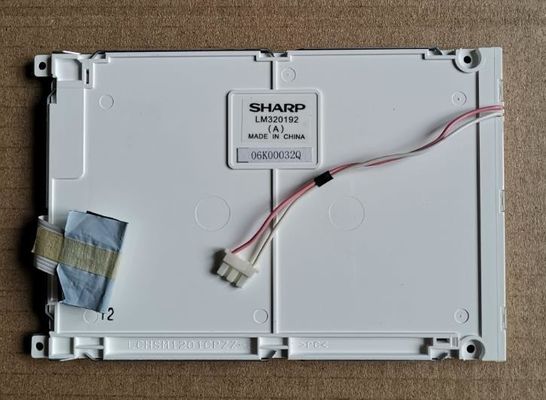

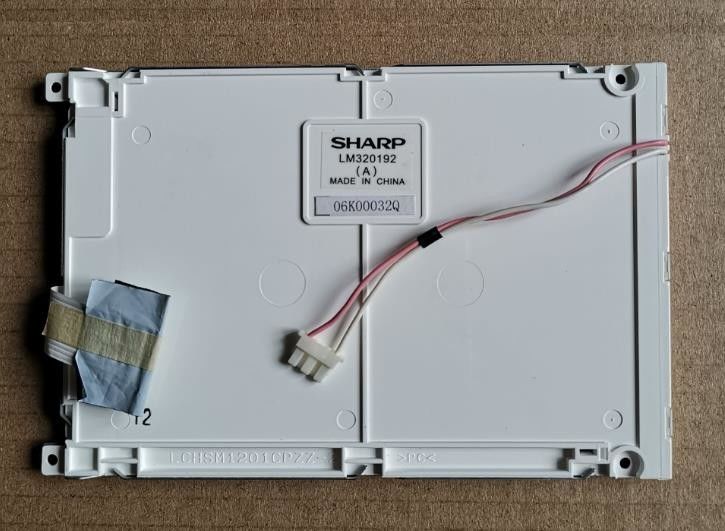

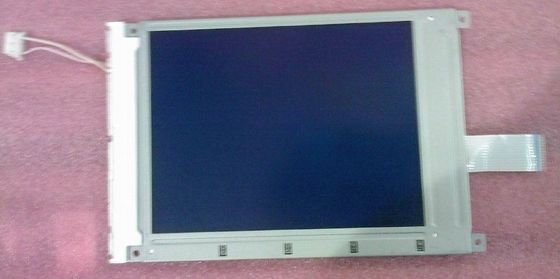

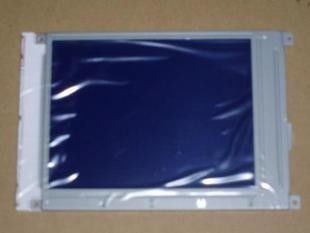

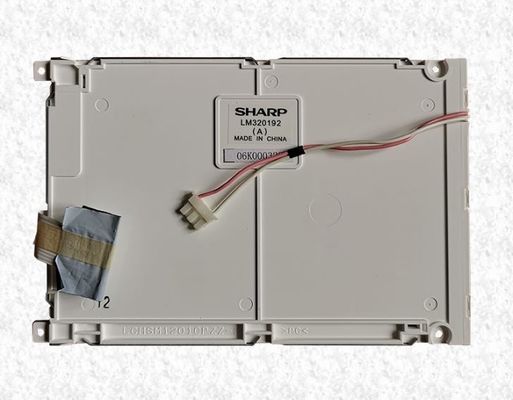

| Model: | LM320192 | Brand: | Sharp |
|---|---|---|---|
| Luminance: | 120 Cd/m² (Typ.) | Diagonal Size: | 5.7 Inch |
| Interface Type: | Parallel Data (4-bit) , 12 Pins FPC | Pixel Format: | 320×240 [QVGA] 70PPI |
| Environment: | Operating Temperature: 0 ~ 45 °C ; Storage Temperature: -25 ~ 60 °C | Light Source: | CCFL [1 Pcs] , 15K Hours , W/O Driver |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 120 cd/m² (Typ.) | STN, Blue mode (Negative), Transmissive | 6:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 40/40/25/40 (Typ.)(CR≥4) | - | 220/215 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | Monochrome | - |
| Panel Size : | 5.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320×240, QVGA | Rectangle | 0.360×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 115.17×86.37 mm | - | 166×109 mm | 9.2 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| - | - | - | Embeded Touch | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 205g (Typ.) | - | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | - | 1 pcs | 15K(Typ.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 4.0±1mA | 280/290/310V (Min./Typ./Max.) | 1.3W (Typ.) | ||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 1.2/1.8mA (Typ./Max.) | 5.0V (Typ.) | 82/123mW (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel Data (4-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 1.25 mm | 12 pins | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
