Product Details:
|
| Panel Size: | 5.7INCH | Panel Model: | LM32019P |
|---|---|---|---|
| Brightness: | 70 Cd/m² (Typ.) | Bezel Opening: | 121.0(W)×91.6(H) Mm |
| Resolution: | 320×240, QVGA, 70PPI | Signal Interface: | Parallel Data (4-bit) , 12 Pins FPC |
| Environment: | Operating Temp.: 0 ~ 45 °C ; Storage Temp.: -25 ~ 60 °C | Lamp Type: | 1 Pcs CCFL , 15K Hours , Without Driver |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Info : | Panel Brand | SHARP | Panel Model | LM32019P |
|---|---|---|---|---|
| Diagonal Size | 5.7" | Application | ||
| Panel Type | FSTN-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 45 °C | Storage Temp. | -25 ~ 60 °C |
| Basic Information : | Brightness | 70 cd/m² (Typ.) | Contrast Ratio | 10:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 25/25/15/30 (Typ.)(CR≥4) | Optical Mode | STN, Black/White (Negative), Transmissive | |
| Viewing Direction | - | Response Time | 350/170 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | Monochrome |
| Color Temperature | - | White Uniformity | 1.30/1.50 (Typ./Max.)(5 points) |
| Pixel Features : | Pixel Format | 320×240 [QVGA] | Dot Pitch | 0.360×0.360 mm (H×V) |
|---|---|---|---|---|
| Configuration | Rectangle | Pixel Pitch | 0.360×0.360 mm (H×V) [70PPI] | |
| Mechanical Size : | Display Area | 115.17×86.37 mm (H×V) | Bezel Area | 121.0×91.6 mm (H×V) |
| Outline Dim. | 166×109 mm (H×V) | Outline Depth | 7.5 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (3-Φ3.0, 1-Φ2.8) | |||
| Other Features : | Weight | 160g (Typ.) | Surface | - |
| Signal Systerm : | Parallel Data (4-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 1.2mA (Typ.) | ||
| Consumption | 46/70mW (Typ./Max.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 1.25 mm | 12 pins | 1 pcs | ||||
| Back-light Features: | Lamp Shape | - | Lamp Type | CCFL | Life Time | 15K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 290±29V | Current Input | 5.0±1mA | ||
| Frequency | 20/60KHz (Min./Max.) | Kick-off Voltage | 900V (Max.)(Ta=+25℃) | |||
| Consumption | 1.45W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL | |

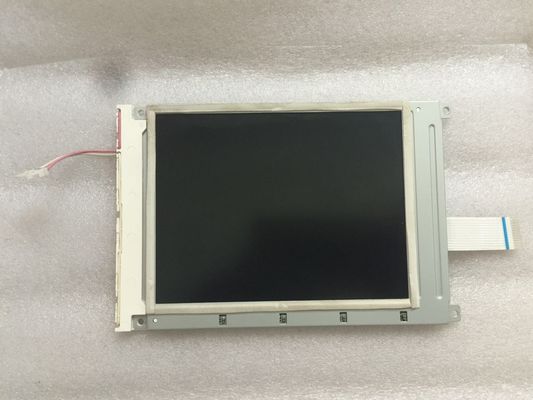

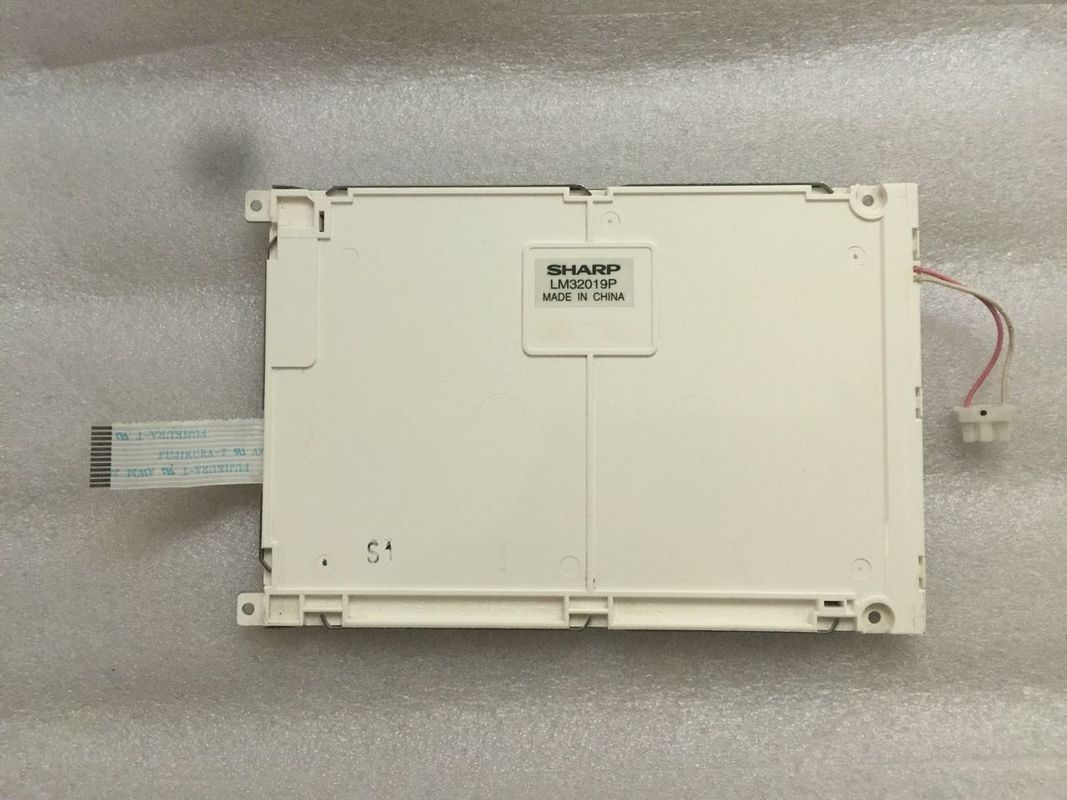

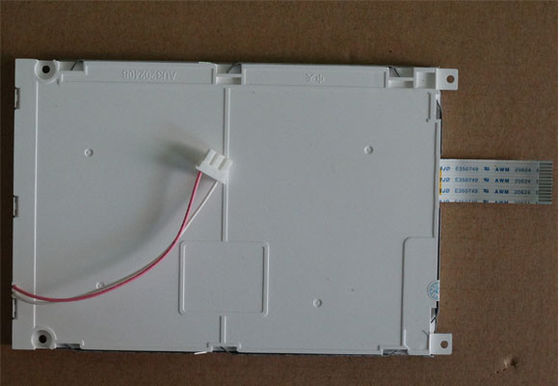

LM32019P supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 115.17(W)×86.37(H) mm, outline size of 166(W)×109(H) mm, viewing area size of 121.0(W)×91.6(H) mm, net weight of 160g (Typ.). As a STN, Black/White (Negative), Transmissive LCM product, LM32019P can provides 70 cd/m² display brightness 10:1 transimissive contrast ratio, 25/25/15/30 (Typ.)(CR≥4) (L/R/U/D) viewing angle , and response time of 350/170 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed.
