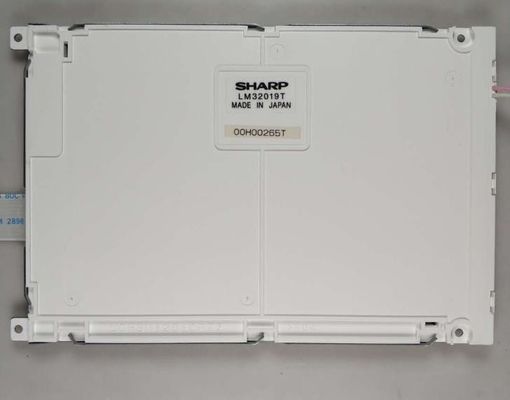

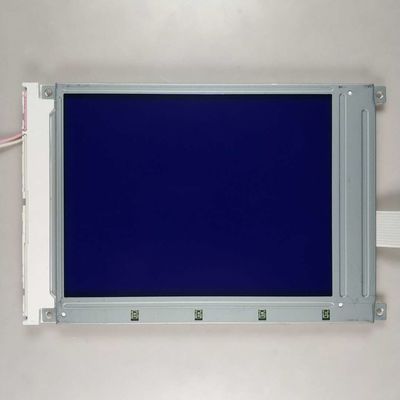

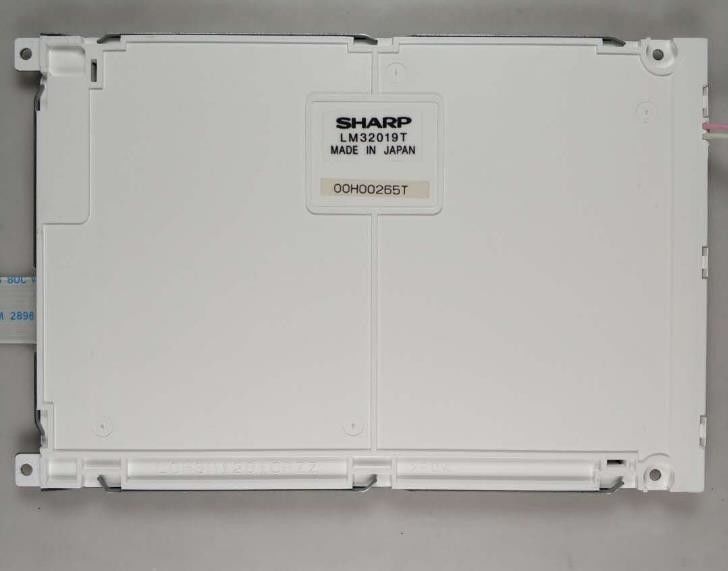

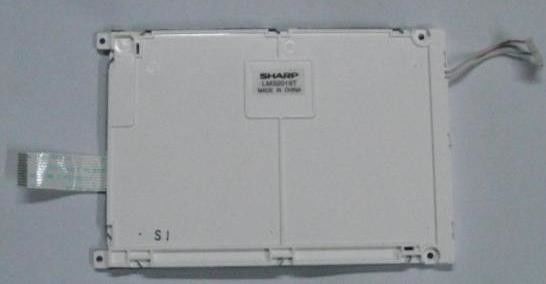

Product Details:
|
| Model: | LM32019T | Diagonal Size: | 5.7 Inch |
|---|---|---|---|
| Brand: | SHARP | Luminance: | 100 Cd/m² (Typ.) |
| Pixel Format: | 320×240 [QVGA] 70PPI | Viewing Angle: | 40/40/25/40 |
| Interface Type: | Parallel Data (4-bit) , 12 Pins FPC | Environment: | Operating Temperature: 0 ~ 45 °C ; Storage Temperature: -25 ~ 60 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Luminance | 100 cd/m² (Typ.) | Contrast Ratio | 6 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 190/210 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 40/40/25/40 (Typ.)(CR≥2) | Operating Mode | STN, Blue mode (Negative), Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
| Color Temperature | - | White Uniformity | 1.30/1.50 (Typ./Max.)(5 points) |
| Pixel Features : | Number of Pixel | 320×240 [QVGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.360×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.17(W)×86.37(H) mm | Overall Dim. | 166(W)×109(H) mm |
| Bezel Opening | 121.0(W)×91.6(H) mm | Overall Depth | 7.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (3-Φ3.0, 1-Φ2.8) | |||
| Other Detail : | Mass | 160g (Typ.) | Surface | - |
| Signal Electrical : | Input Current | 1.2/1.8mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 82/123mW (Typ./Max.) | Signal Interface | Parallel Data (4-bit) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 1.25 mm | 12 pins | ||||
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 15K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 4.0±1mA | Input Voltage | 280±28V | ||
| Frequency | 20/60KHz (Min./Max.) | Turn-on Voltage | 650V (Max.)(Ta=+25℃) | |||
| Consumption | 1.40W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
LM32019T supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 115.17(W)×86.37(H) mm, outline size of 166(W)×109(H)×7.5(D) mm, viewing area size of 121.0(W)×91.6(H) mm, net weight of 160g (Typ.). As a STN, Blue mode (Negative), Transmissive LCM product, LM32019T can provides 100 cd/m² display brightness 6:1 transimissive contrast ratio, 40/40/25/40 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 190/210 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 15K hours, external backlight driver is additionally needed. LM32019T utilizes Parallel Data (4-bit) as it's signal inputting systerm, which connected by 12 pins FPC with power supply voltage of 5.0V (Typ.).
