Product Details:
|
| Panel Size: | 5.5INCH | Panel Model: | LM32C04P |
|---|---|---|---|
| Brightness: | 170 Cd/m² (Typ.) | Signal Interface: | Parallel Data (8-bit) , 20 Pins Connector |
| Lamp Type: | 2 Pcs CCFL , Without Driver | Resolution: | 320(RGB)×240, QVGA, 72PPI |
| Panel Type: | CSTN-LCD, LCM | Environment: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 65 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Screen Size : | 5.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.116×0.348 mm | 0.348×0.348 mm [72PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 111.36×83.52 mm | 115.6×87.6 mm | 149.2×116.4 mm | 24.8 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 320g (Typ.) | - | - | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Direct light type | - | 2 pcs | - | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 340±40V | 7.0±1mA | 4.8/6.1W (Typ./Max.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 20/60KHz (Min./Max.) | 1100/1400V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | S3B-XH-A | 1 pcs | 3 pins | 2.5 mm | BLL-3PINS-LNH | |
| JST | S3B-XH-A | 1 pcs | 3 pins | 2.5 mm | BLL-3PINS-HNL | |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 170 cd/m² (Typ.) | STN, Normally Black | 20:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | - | 150/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8558K | Color | X:0.290; Y:0.300 |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 24.7mA (Typ.) | 420/620mW (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel Data (8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Kyocera Elco | 00-6200-207-032-800 | 1 pcs | 20 pins | 1.0 mm | ||

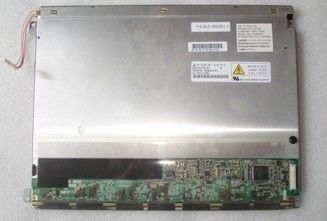

LM32C04P supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 111.36(W)×83.52(H) mm, outline size of 149.2(W)×116.4(H) mm, viewing area size of 115.6(W)×87.6(H) mm, net weight of 320g (Typ.). As a STN, Normally Black LCM product, LM32C04P can provides 170 cd/m² display brightness 20:1 transimissive contrast ratio , and response time of 150/50 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Direct light type, external backlight driver is additionally needed.
