Product Details:
|
| Panel Model: | LM32K10 | Panel Brand: | Sharp |
|---|---|---|---|
| Resolution: | 320×240, QVGA, 84PPI | Panel Size: | 4.7INCH |
| Brightness: | 50 Cd/m² (Typ.) | Signal Interface: | Parallel Data (4-bit) , 12 Pins Connector |
| Environment: | Operating Temp.: 0 ~ 45 °C ; Storage Temp.: -25 ~ 60 °C | Lamp Type: | 1 Pcs CCFL , Without Driver |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 50 cd/m² (Typ.) | STN, Black/White (Positive) | 10:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| - | - | 100/150 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | Monochrome | - |
| Panel Size : | 4.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320×240, QVGA | Rectangle | 0.300×0.300 mm | 0.300×0.300 mm [84PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 95.97×71.97 mm | 100.0×76.0 mm | 148×96 mm | 8.0 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 140g (Typ.) | - | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 12.5mA (Typ.) | 5.0V (Typ.) | - | ||||
| Voltage for Display Signals : | 192/288mW (Typ./Max.) | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel Data (4-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| molex | 52103-1217 | 1 pcs | 1.0 mm | 12 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | - | 1 pcs | - | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 5.0±1mA | 250±25V | 1.25W (Typ.) | ||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Wire | No | ||||

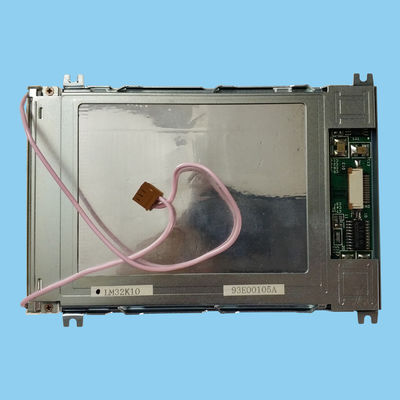

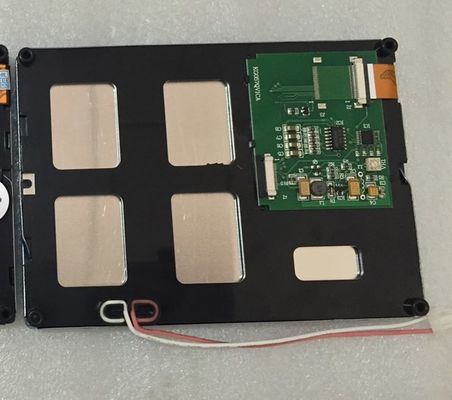

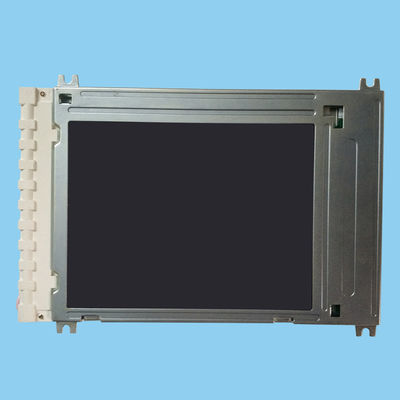

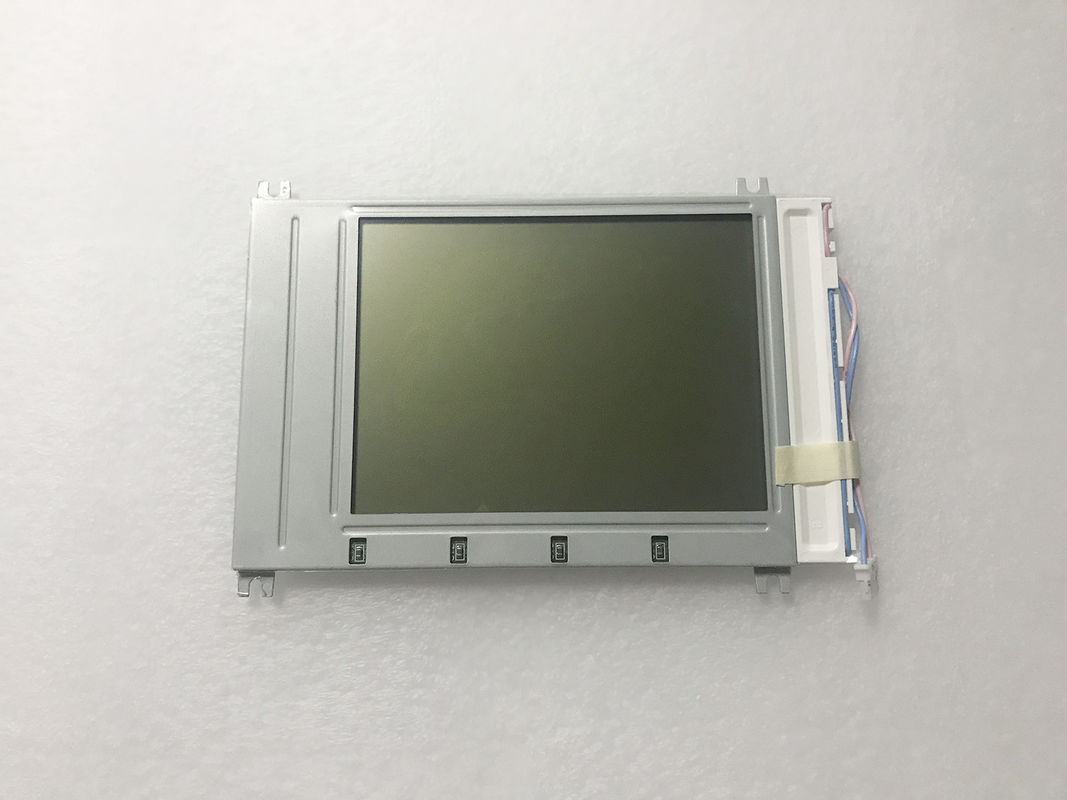

LM32K10 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 95.97(W)×71.97(H) mm, outline size of 148(W)×96(H) mm, viewing area size of 100.0(W)×76.0(H) mm, net weight of 140g (Typ.). As a STN, Black/White (Positive) LCM product, LM32K10 can provides 50 cd/m² display brightness 10:1 transimissive contrast ratio , and response time of 100/150 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
