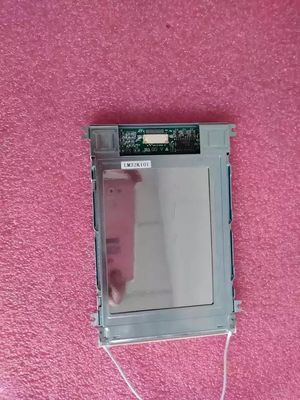

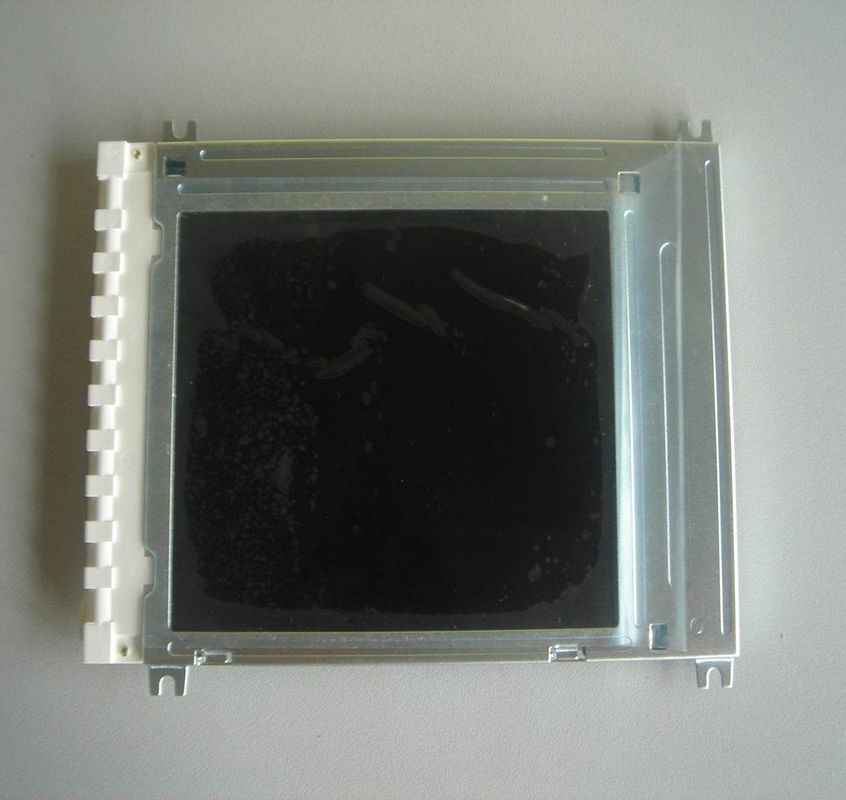

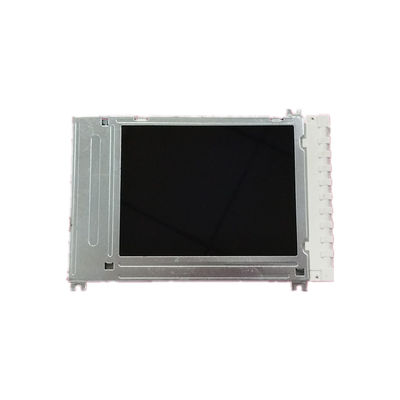

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LM32K101 |
|---|---|---|---|
| Luminance: | 50 Cd/m² (Typ.) | Screen Size: | 4.7 Inch |
| Signal Type: | Parallel Data (4-bit) , Connector | Pixel Number: | 320×240 (QVGA) 84PPI |
| Backlight: | 1 Pcs CCFL , No Driver | Max. Ratings: | Storage Temp.: -25 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Brand | SHARP | Model | LM32K101 |
|---|---|---|---|---|
| Type | LCM DSTN-LCD | Used For | ||
| Screen Size | 4.7" | Alias | - | |
| Environment : | Storage Temp. | -25 ~~ 70 °C | Operating Temp. | -10 ~~ 60 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 320×240, QVGA | Dot Pitch(mm) | 0.300×0.300 (H×V) |
|---|---|---|---|---|
| Pixel Format | Rectangle | Pixel Pitch(mm) | 0.300×0.300 (H×V) [84PPI] | |
| Mechanical Size : | Active Area(mm) | 95.97(H) × 71.97(V) | Bezel Area(mm) | 100.0(H) × 76.0(V) |
| Outline Dim.(mm) | 148(H) × 107(V) | Depth(mm) | 7.0/8.0 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 140g (Typ.) | Treatment | - |
| Basic Information : | Luminance(cd/m²) | 50 (Typ.) | Contrast Ratio | 10:1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | - | Display Mode | STN, Black/White mode, Transflective | |
| Best View on | - | Response(ms) | 750 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | - | Display Colors | Monochrome |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
LM32K101 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 95.97(W)×71.97(H) mm, outline size of 148(W)×107(H)×8(D) mm, viewing area size of 100.0(W)×76.0(H) mm, net weight of 140g (Typ.). As a STN, Black/White mode, Transflective LCM product, LM32K101 can provides 50 cd/m² display brightness 10:1 transimissive contrast ratio, 10:1 (Typ.) reflective contrast ratio , and response time of 750 (Typ.)(Tr+Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
