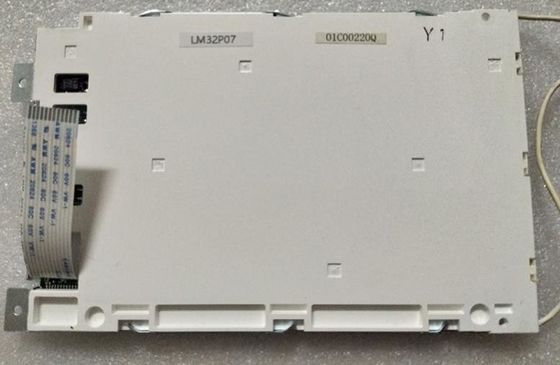

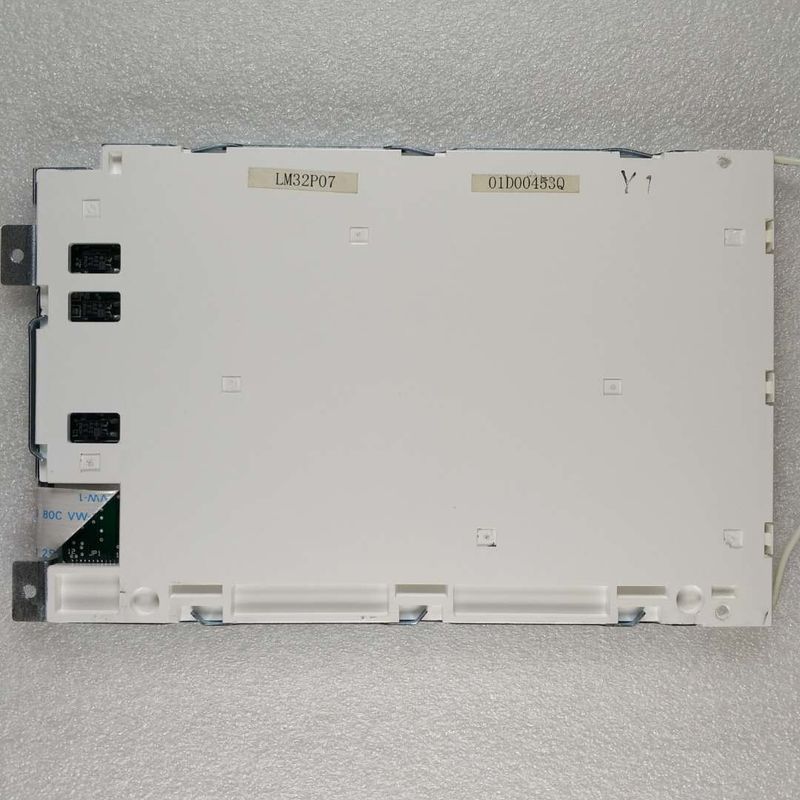

Product Details:
|
| Panel Model: | LM32P07 | Panel Size: | 5.7INCH |
|---|---|---|---|
| Resolution: | 320×240, QVGA, 70PPI | Brightness: | 60 Cd/m² (Typ.) |
| Viewing Angle: | 35/20/50/25 | Lamp Type: | 1 Pcs CCFL , 10K Hours , Without Driver |
| Signal Interface: | Parallel Data (4-bit) , 12 Pins FPC | Environment: | Operating Temp.: 0 ~ 45 °C ; Storage Temp.: -25 ~ 60 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Pixel Features : | Resolution | 320×240, QVGA | Dot Pitch(mm) | 0.360×0.360 (H×V) |
|---|---|---|---|---|
| Pixel Format | Rectangle | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] | |
| Mechanical Size : | Active Area(mm) | 115.17(H) × 86.37(V) | Bezel Area(mm) | 121.0(H) × 91.6(V) |
| Outline Dim.(mm) | 170(H) × 110(V) | Depth(mm) | 8.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes | |||
| Other Spec : | Weight | 220g | Treatment | - |
| Backlight Features: | Shape | - | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 10K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 275±25V | Current Supply | 5.0±1.0mA | ||
| Frequency | - | Startup Voltage | 780V (Max.) | |||
| Consumption | 1.375W (Typ.) | |||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 2 pins | |||||
| Backlight Driver : | No | |||||
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 7.0mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 167/206mW (Typ./Max.) | |||||
| Signal Type : | Parallel Data (4-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 12 pins | 1.25 mm | ||||
| Basic Information : | Luminance(cd/m²) | 60 (Typ.) | Contrast Ratio | 18:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 35/20/50/25 (Typ.)(CR≥4) | Display Mode | STN, Black/White (Negative), Transmissive | |
| Best View on | - | Response(ms) | 70/80 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | - | Display Colors | Monochrome (1-bit) |
LM32P07 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 115.17(W)×86.37(H) mm, outline size of 170(W)×110(H) mm, viewing area size of 121.0(W)×91.6(H) mm, net weight of 220g. As a STN, Black/White (Negative), Transmissive LCM product, LM32P07 can provides 60 cd/m² display brightness 18:1 transimissive contrast ratio, 35/20/50/25 (Typ.)(CR≥4) (L/R/U/D) viewing angle , and response time of 70/80 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
