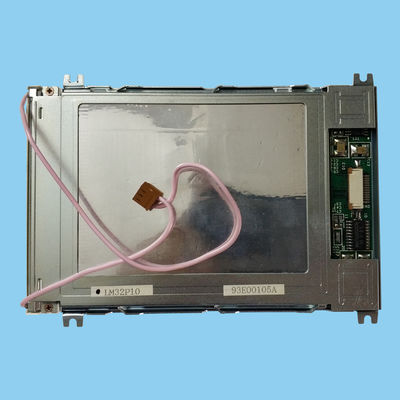

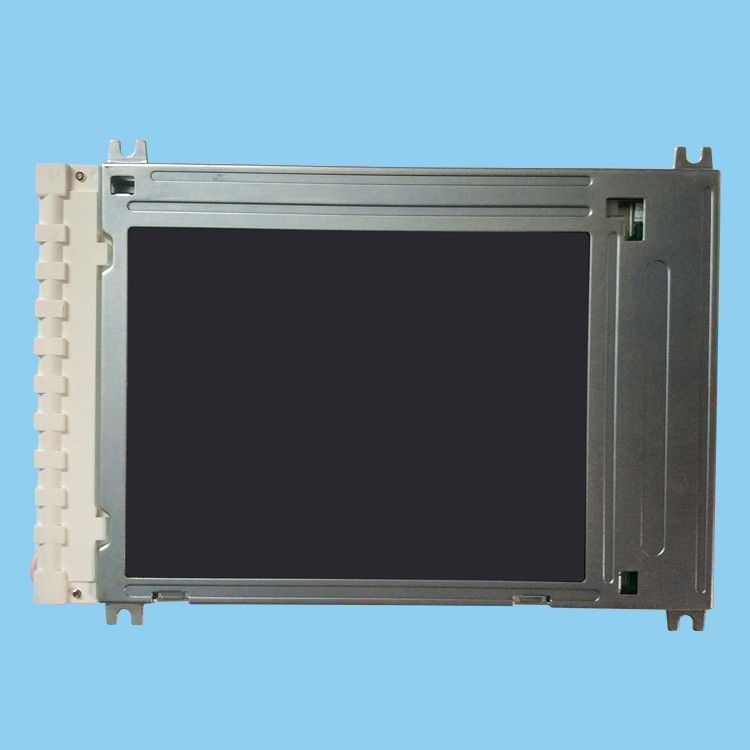

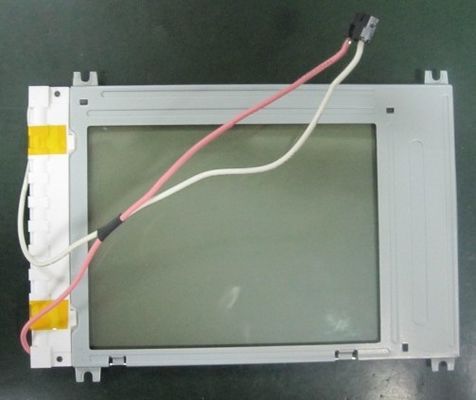

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LM32P10 |
|---|---|---|---|
| Luminance: | 70 (Typ.)(cd/m²) | Screen Size: | 4.7 Inch |
| Signal Type: | Parallel Data (1ch, 4-bit) , 12 Pins Connector | Backlight: | 1 Pcs CCFL , No Driver |
| Outline(mm): | 148 × 107 × 8 (H×V×D) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 45 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Luminance | 70 cd/m² (Typ.) | Contrast Ratio | 18 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 200/200 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | - | Operating Mode | STN, Black/White (Negative), Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
| Signal Electrical : | Input Current | 9/7mA (Typ.)(IDD/IEE) | Input Voltage | 5.0/-20.0V (Typ.)(VDD/VEE) | ||
|---|---|---|---|---|---|---|
| Consumption | 185/370mA (Typ.) | Signal Interface | Parallel Data (1ch, 4-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 52103-1217 | 1 pcs | 1.0 mm | 12 pins | ||
| Pixel Features : | Number of Pixel | 320×240 [QVGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.300×0.300 mm | Pixel Pitch(W×H) | 0.300×0.300 mm [84PPI] | |
| Physical Size : | Active Viewing | 95.98(W)×71.97(H) mm | Overall Dim. | 148(W)×107(H) mm |
| Bezel Opening | 100.0(W)×76.0(H) mm | Overall Depth | 8.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-R1.6) on up, down slugs | |||
| Other Detail : | Mass | 140g (Typ.) | Surface | - |
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | - | |
| Lamp Electrical : | Input Current | 5.0±1.0mA | Input Voltage | 250±25V | ||
| Consumption | 1.25W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Wire | ||
| Backlight Driver : | No | |||||
LM32P10 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 95.98(W)×71.97(H) mm, outline size of 148(W)×107(H)×8(D) mm, viewing area size of 100.0(W)×76.0(H) mm, net weight of 140g (Typ.). As a STN, Black/White (Negative), Transmissive LCM product, LM32P10 can provides 70 cd/m² display brightness 18:1 transimissive contrast ratio , and response time of 200/200 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
