Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LM5Q32 |
|---|---|---|---|
| Brightness: | 120 Cd/m² (Typ.) | Resolution: | 320(RGB)×240, QVGA, 80PPI |
| Panel Size: | 5.0" | Lamp Type: | 1 Pcs CCFL , 15K Hours , Without Driver |
| Signal Interface: | Parallel Data (8-bit) , 20 Pins Connector | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 65 °C |
| Highlight: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Brightness | 120 cd/m² (Typ.) | Contrast Ratio | 30:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 35/35/15/25 (Typ.)(CR≥5) | Optical Mode | STN, Normally Black, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 150/50 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.290; Wy:0.300 | Color Numbers | Color |
| Color Temperature | 8558K | White Uniformity | - |
| Pixel Features : | Pixel Format | 320(RGB)×240 [QVGA] | Dot Pitch | 0.105×0.315 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.315×0.315 mm (H×V) [80PPI] | |
| Mechanical Size : | Display Area | 100.8×75.6 mm (H×V) | Bezel Area | 103.4×78.3 mm (H×V) |
| Outline Dim. | 134×113 mm (H×V) | Outline Depth | 10.5 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Other Features : | Weight | 150g (Typ.) | Surface | - |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 720V (Typ.) | Current Input | 4.0±1mA | ||
| Frequency | 30/80KHz (Min./Max.) | Kick-off Voltage | 1280/1600V (Max.)(Ta=+25/0℃) | |||
| Consumption | 2.9W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL | |
| Signal Systerm : | Parallel Data (8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 3/5mA (Typ./Max.) | ||
| Consumption | 310/400mW (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| FCI | SFR20R-1ST | 0.8 mm | 20 pins | 1 pcs | ||

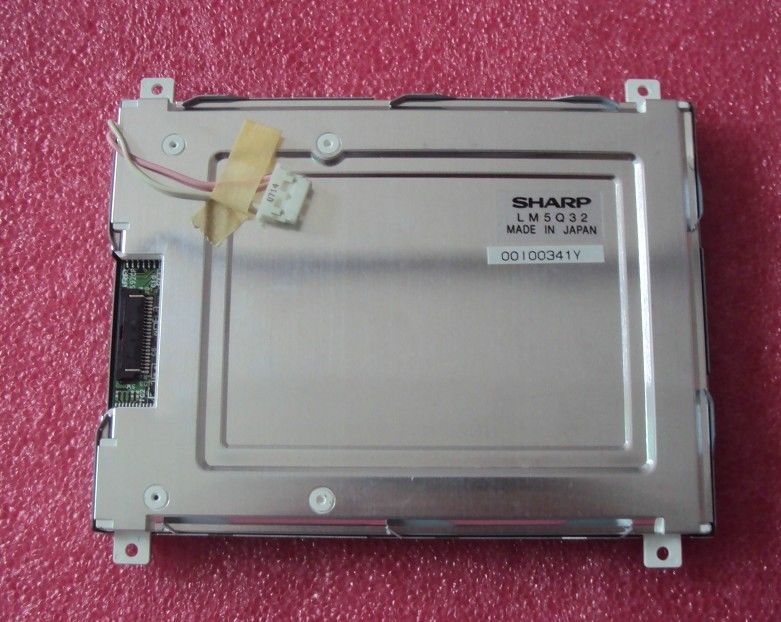

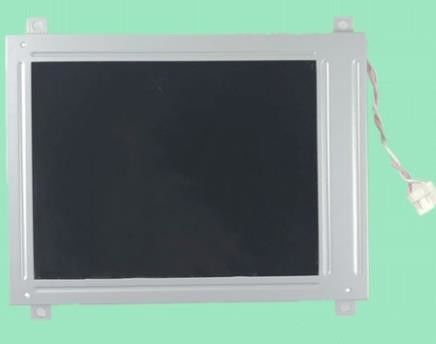

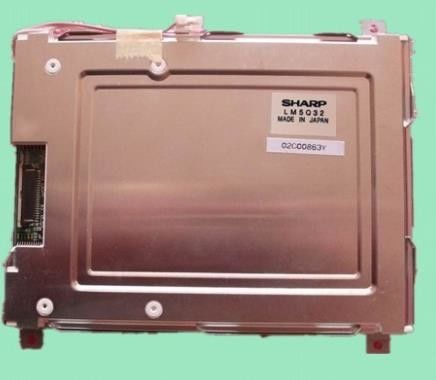

LM5Q32 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 100.8(W)×75.6(H) mm, outline size of 134(W)×113(H)×10.5(D) mm, viewing area size of 103.4(W)×78.3(H) mm, net weight of 150g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM5Q32 can provides 120 cd/m² display brightness 30:1 transimissive contrast ratio, 35/35/15/25 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 150/50 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 15K hours, external backlight driver is additionally needed.
