Product Details:
|
| Brand: | Sharp | Model: | LM5Q32R |
|---|---|---|---|
| Luminance: | 120 Cd/m² (Typ.) | Diagonal Size: | 5.0INCH |
| Light Source: | CCFL [1 Pcs] , 15K Hours , W/O Driver | Pixel Format: | 320(RGB)×240 [QVGA] 80PPI |
| Interface Type: | Parallel Data (8-bit) , 20 Pins Connector | Environment: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 65 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Screen Size : | 5.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.105×0.315 mm | 0.315×0.315 mm [80PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 100.8×75.6 mm | 103.4×78.3 mm | 134×113 mm | 10.5 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 150g (Typ.) | - | - | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 120 cd/m² (Typ.) | STN, Normally Black, Transmissive | 30:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 35/35/15/25 (Typ.)(CR≥5) | 150/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8558K | Color | X:0.290; Y:0.300 |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 3/5mA (Typ./Max.) | 310/400mW (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel Data (8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| FCI | SFR20R-1ST | 1 pcs | 20 pins | 0.8 mm | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 15K(Min.) | 1 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 720V (Typ.) | 4.0±1mA | 2.9W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 30/80KHz (Min./Max.) | 1280/1600V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-LNH | |

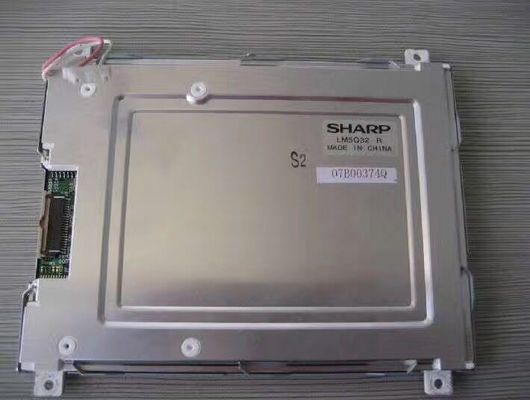

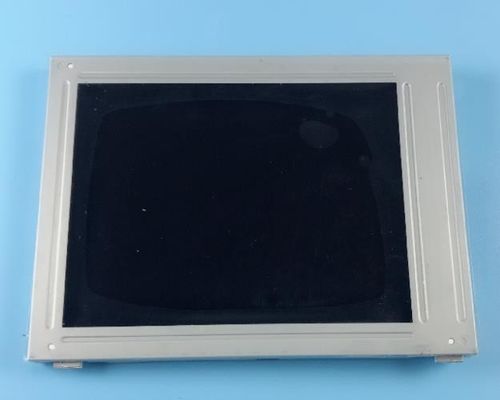

LM5Q32R supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 100.8(W)×75.6(H) mm, outline size of 134(W)×113(H)×10.5(D) mm, viewing area size of 103.4(W)×78.3(H) mm, net weight of 150g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM5Q32R can provides 120 cd/m² display brightness 30:1 transimissive contrast ratio, 35/35/15/25 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 150/50 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 15K hours, external backlight driver is additionally needed.
