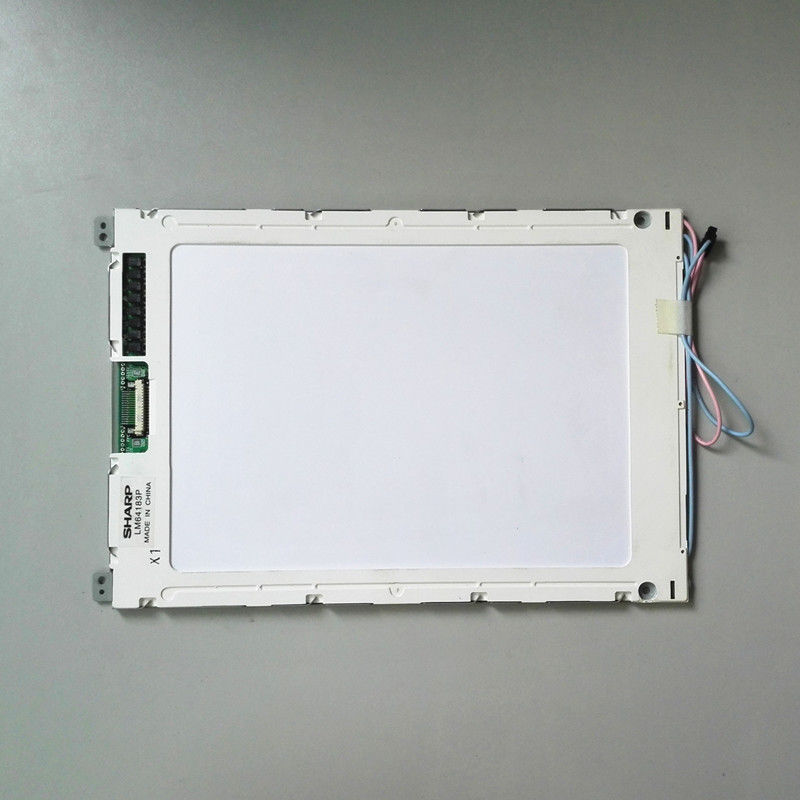

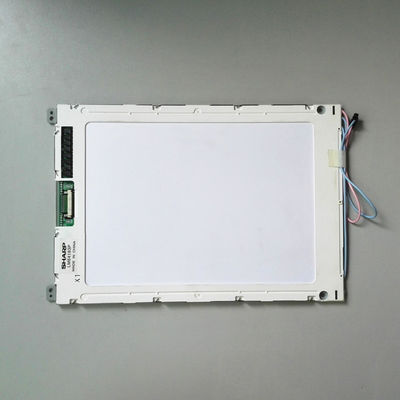

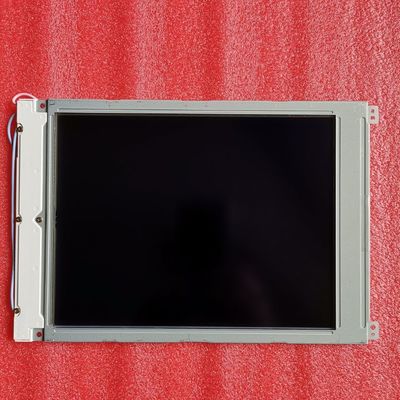

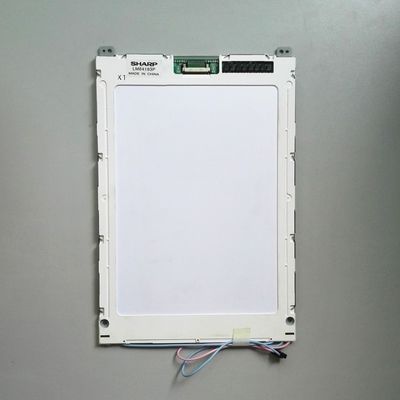

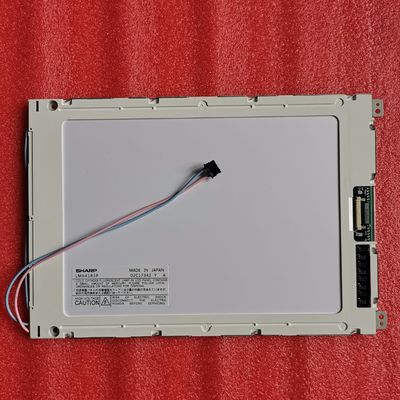

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LM64183P |
|---|---|---|---|
| Pixel Format: | Rectangle | Panel Type: | FSTN-LCD, LCM |
| Screen Size: | 9.4" | Resolution: | 640×480, VGA, 84PPI |
| Brightness: | 70 Cd/m² (Typ.) | Lamp Type: | 1 Pcs CCFL , 10K Hours , Without Driver |
| Signal Interface: | Parallel Data (4-bit) , 15 Pins Connector | Environment: | Operating Temp.: 0 ~ 45 °C ; Storage Temp.: -25 ~ 60 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LM64183P | FSTN-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 45 °C | -25 ~ 60 °C | - |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 70 cd/m² (Typ.) | STN, Black/White (Negative), Transmissive | 11:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 20/25/25/15 (Typ.)(CR>4) | - | 350/200 (Typ.)(Tr+/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | Monochrome | - |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Bottom side) | - | 1 pcs | 10K(Min.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 5.0mA (Typ.) | 360V (Typ.) | 1.8W (Typ.) | ||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| MITSUMI | M63M83-04 | 1 pcs | 2.5 mm | 4 pins | BLL-4PINS-LNNH | |
| Panel Size : | 9.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640×480, VGA | Rectangle | 0.30×0.30 mm | 0.30×0.30 mm [84PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 191.97×143.97 mm | 201.4×153.4 mm | 260×174 mm | 7.0 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (4-Φ3.5) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 340g (Typ.) | - | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 24mA (Typ.) | 5.0V (Typ.) | 380/580mW (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel Data (4-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| molex | 53261-1510 | 1 pcs | 1.25 mm | 15 pins | ||
LM64183P supports display 640×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 191.97(W)×143.97(H) mm, outline size of 260(W)×174(H) mm, viewing area size of 201.4(W)×153.4(H) mm, net weight of 340g (Typ.). As a STN, Black/White (Negative), Transmissive LCM product, LM64183P can provides 70 cd/m² display brightness 11:1 transimissive contrast ratio, 20/25/25/15 (Typ.)(CR>4) (L/R/U/D) viewing angle , and response time of 350/200 (Typ.)(Tr+/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 10K hours, external backlight driver is additionally needed. LM64183P utilizes Parallel Data (4-bit) as it's signal inputting systerm, which connected by 15 pins Connector with power supply voltage of 5.0V (Typ.).
