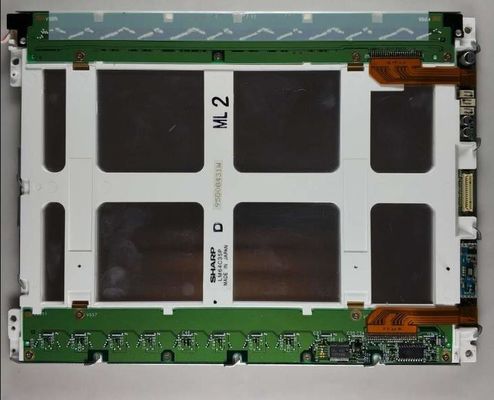

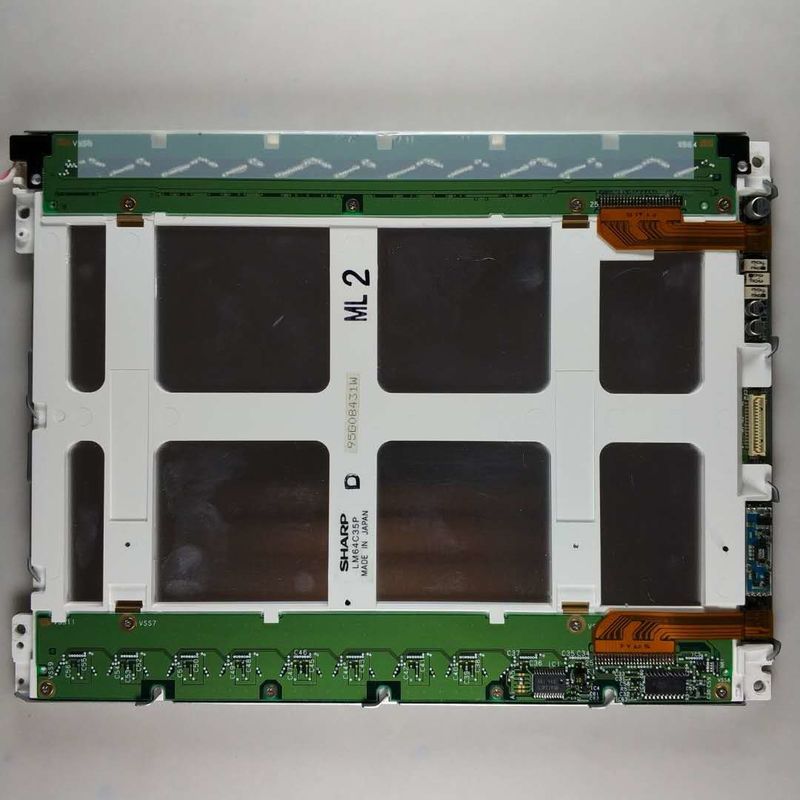

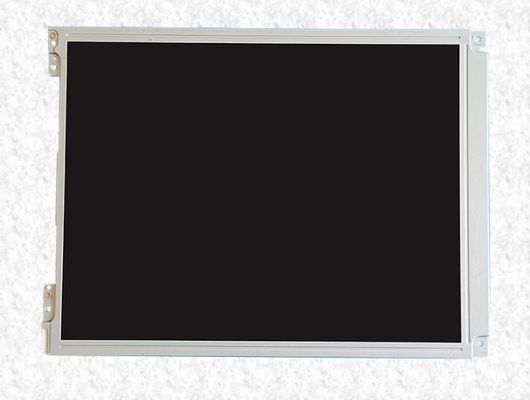

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LM64C35P |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Panel Type: | CSTN-LCD, LCM |
| Resolution: | 640(RGB)×480, VGA, 76PPI | Panel Size: | 10.4" |
| Lamp Type: | 1 Pcs CCFL , Without Driver | Environment: | Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -25 ~ 60 °C |
| Highlight: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Detail : | Manufacturer | SHARP | Model Name | LM64C35P |
|---|---|---|---|---|
| Panel Type | CSTN-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 40 °C | ST Temperature | -25 ~ 60 °C |
| Vibration Level | - | RoHS |
| Signal Electrical : | Input Current | 160/240mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.8/1.32W (Typ./Max.) | Signal Interface | Parallel Data (8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9B-31P-1V | 1 pcs | 1.0 mm | 31 pins | ||
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 242.5(W)×179.4(H) mm |
| Bezel Opening | 215.2(W)×162.4(H) mm | Overall Depth | 11.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes | |||
| Other Detail : | Mass | 500g (Typ.) | Surface | - |
| Basic Information : | Luminance | - | Contrast Ratio | 30 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 220/80 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | - | Operating Mode | STN, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.275; Wy:0.320 | Support Color | Color |
| Color Temperature | 9154K | White Uniformity | - |
LM64C35P supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 242.5(W)×179.4(H) mm, viewing area size of 215.2(W)×162.4(H) mm, net weight of 500g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM64C35P can provides 30:1 transimissive contrast ratio , and response time of 220/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
