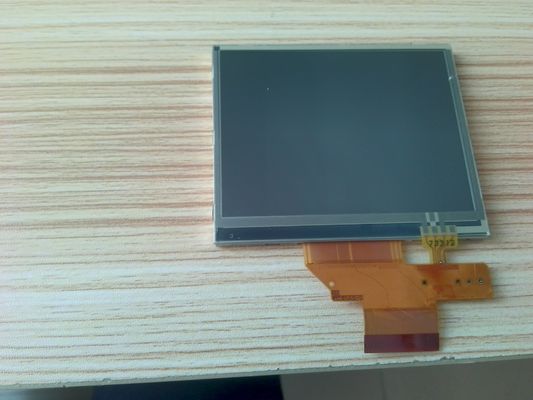

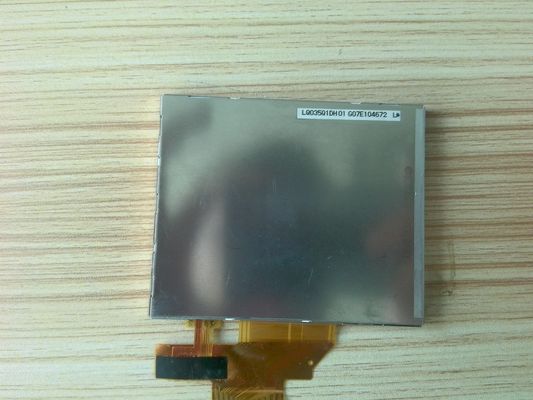

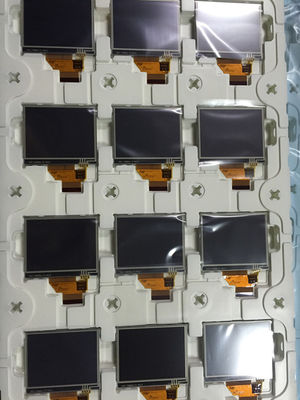

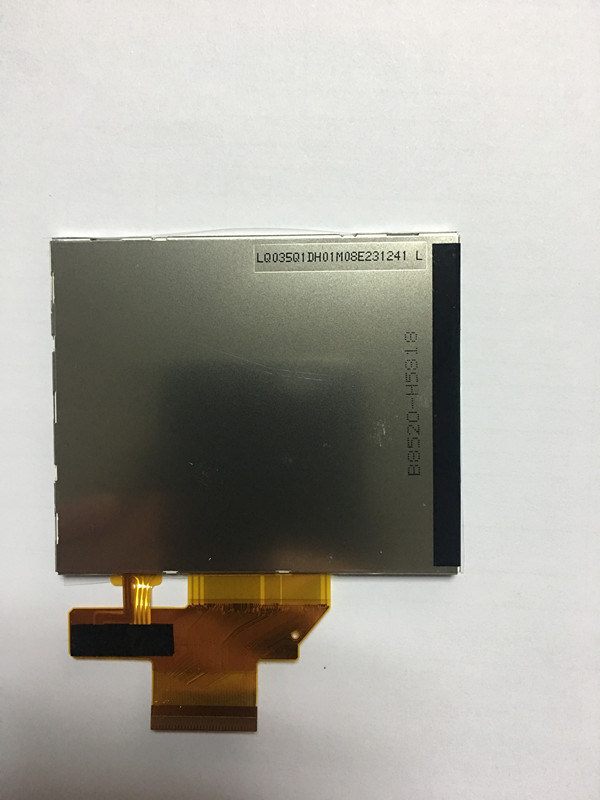

Product Details:
|
| Model Name: | LQ035Q1DH01 | Screen Size: | 3.5 Inch |
|---|---|---|---|
| Luminance: | 400 (Typ.)(cd/m²) | Backlight: | 7S1P WLED , No Driver |
| Signal Type: | Parallel RGB (1 Ch, 6-bit) + SPI , 67 Pins FPC | Pixel Number: | 320(RGB)×240 (QVGA) 115PPI |
| Viewing Angle: | 45/45/20/55 (Typ.) | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -10 ~ 70 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Panel Size : | 3.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.0735×0.2205 mm | 0.2205×0.2205 mm [115PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 70.56×52.92 mm | - | 76.9×63.9 mm | 4.5±0.2 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| - | - | - | 4-wire Resistive Touch | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 43.0g (Typ.) | Antiglare, Hard coating (2H) | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 7S1P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 22.4/24.5V (Typ./Max.) | 448mW (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.35/8.5mA (Typ.)(IVDDIO/IVCI) | 3.3/3.3V (Typ.)(VDDIO/VCI) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 6-bit) + SPI | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.3 mm | 67 pins | ||||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/20/55 (Typ.)(CR≥10) | 6 o'clock | 30/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6551K | 262K (6-bit) | X:0.310; Y:0.340 |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
