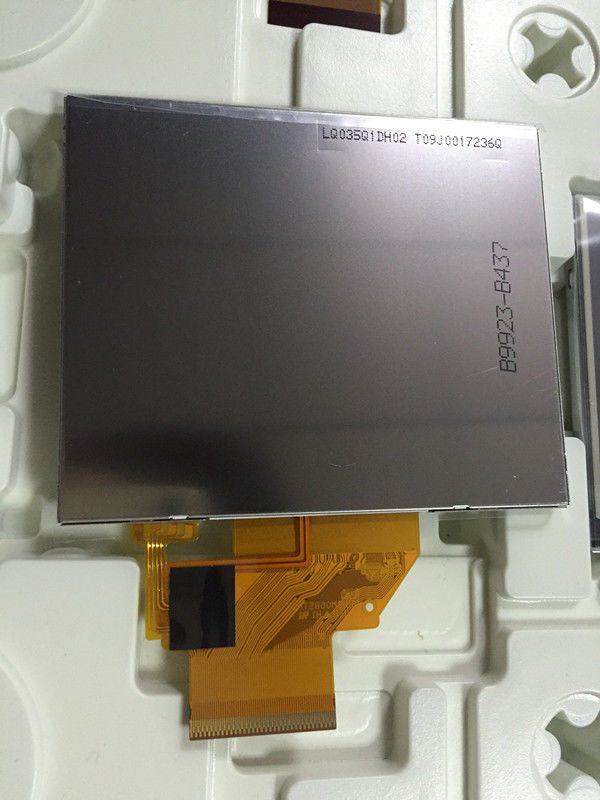

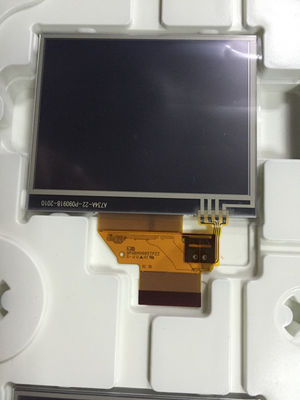

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ035Q1DH02 |
|---|---|---|---|
| Luminance: | 400 (Typ.)(cd/m²) | Arrangement: | RGB Vertical Stripe |
| Screen Size: | 3.5 Inch | Backlight: | 7S1P WLED , No Driver |
| Active Area(mm): | 70.56 × 52.92 (H×V) | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -10 ~ 70 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Info : | Panel Brand | SHARP | Panel Model | LQ035Q1DH02 |
|---|---|---|---|---|
| Diagonal Size | 3.5" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 70 °C | Storage Temp. | -30 ~ 85 °C |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/55 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 30/30 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.340 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6551K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| Pixel Features : | Pixel Format | 320(RGB)×240 [QVGA] | Dot Pitch | 0.0735×0.2205 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2205×0.2205 mm (H×V) [115PPI] | |
| Mechanical Size : | Display Area | 70.56×52.92 mm (H×V) | Bezel Area | 71.16×53.52 mm (H×V) |
| Outline Dim. | 76.9×63.9 mm (H×V) | Outline Depth | 4.5±0.2 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | 1 point | TP Signal | - |
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch | |
| Other Features : | Weight | 43.0g (Typ.) | Surface | Antiglare, Hard coating (2H) |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) + SPI | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 1.8/3.3V (Typ.)(VDDIO/VCI) | Current Input | 0.003/8.0mA (Typ.)(IVDDIO/IVCI) | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.3 mm | 67 pins | 1 pcs | ||||
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 7S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 22.4/24.5V (Typ./Max.) | Current Input | 24mA (Typ.) | ||
| Consumption | 538mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
LQ035Q1DH02 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.56(W)×52.92(H) mm, outline size of 76.9(W)×63.9(H)×4.7(D) mm, viewing area size of 71.16(W)×53.52(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 43.0g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ035Q1DH02 can provides 400 cd/m² display brightness 300:1 transimissive contrast ratio, 45/45/20/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 48% (NTSC). This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
