Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ035Q3DG03 |
|---|---|---|---|
| Brightness: | 450 Cd/m² (Typ.) | Panel Size: | 3.5INCH |
| Lamp Type: | 3S2P WLED , 50K Hours , Without Driver | Resolution: | 320(RGB)×240, QVGA, 115PPI |
| Signal Interface: | Parallel RGB (1 Ch, 8-bit) + SPI , 50 Pins FPC | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Screen Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.0735×0.2205 mm | 0.2205×0.2205 mm [115PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 70.56×52.92 mm | 71.6×54.0 mm | 76.9×63.9 mm | 4.7±0.2 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 42.0g (Typ.) | - | Antiglare | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/3.3V (Typ.)(VDDIO/VCI) | 0.35/13.0mA (Typ.)(IDDIO/ICI) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDID | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 8-bit) + SPI | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | DRGB-50P1C8B-040A | |||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | 3S2P | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 9.45/10.2V (Typ./Max.) | 40/60mA (Typ./Max.) | 756/1224mW (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 60/60/40/60 (Typ.)(CR≥10) | 30/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6551K | 16.7M (8-bit) | X:0.310; Y:0.340 |

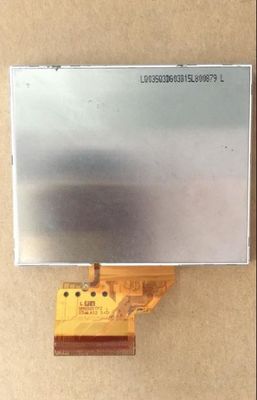

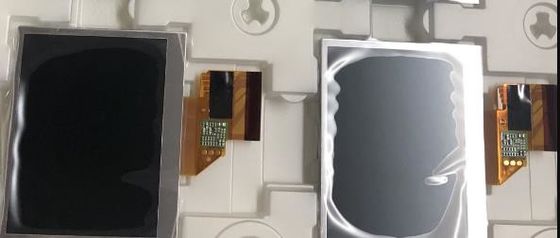

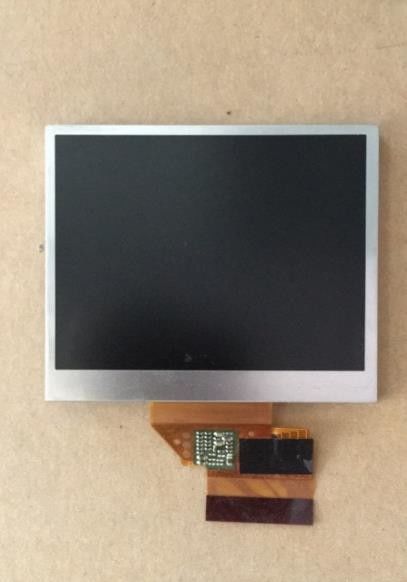

LQ035Q3DG03 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.56(W)×52.92(H) mm, outline size of 76.9(W)×63.9(H)×4.9(D) mm, viewing area size of 71.6(W)×54.0(H) mm, with surface treament of Antiglare, net weight of 42.0g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ035Q3DG03 can provides 450 cd/m² display brightness 300:1 transimissive contrast ratio, 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/30 (Typ.)(Tr/Td) ms.
