Product Details:
|
| Model: | LQ035Q3DW02 | Diagonal Size: | 3.5 Inch |
|---|---|---|---|
| Type: | A-Si TFT-LCD , LCM | Configuration: | RGB Vertical Stripe |
| Luminance: | 450 Cd/m² (Typ.) | Light Source: | WLED [7S1P] , W/O Driver |
| Pixel Format: | 320(RGB)×240 [QVGA] 115PPI | Environment: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Detail : | Manufacturer | SHARP | Model Name | LQ035Q3DW02 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 3.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 70 °C | ST Temperature | -25 ~ 70 °C |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0735×0.2205 mm | Pixel Pitch(W×H) | 0.2205×0.2205 mm [115PPI] | |
| Physical Size : | Active Viewing | 70.56(W)×52.92(H) mm | Overall Dim. | 76.9(W)×63.9(H) mm |
| Bezel Opening | - | Overall Depth | 3.5 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | 33.0g (Typ.) | Surface | Antiglare |
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 7S1P | Life | - | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 22.4/24.5V (Typ./Max.) | ||
| Consumption | 448mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 15/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | ASV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.340 | Support Color | 262K (6-bit) |
| Color Temperature | 6551K | White Uniformity | - |
| Signal Electrical : | Input Current | 0.55/9.5mA (Typ.)(IDDIO/ICI) | Input Voltage | 3.3/3.3V (Typ.)(VDDIO/VCI) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.3 mm | 67 pins | ||||

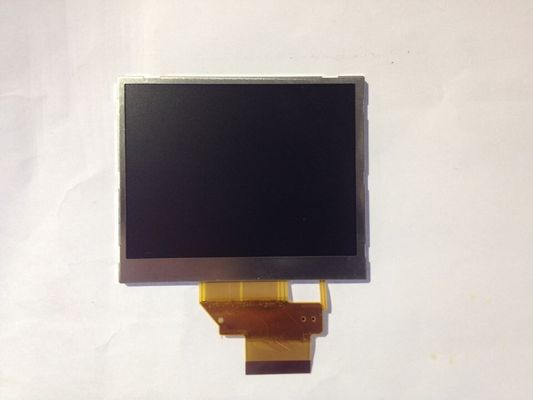

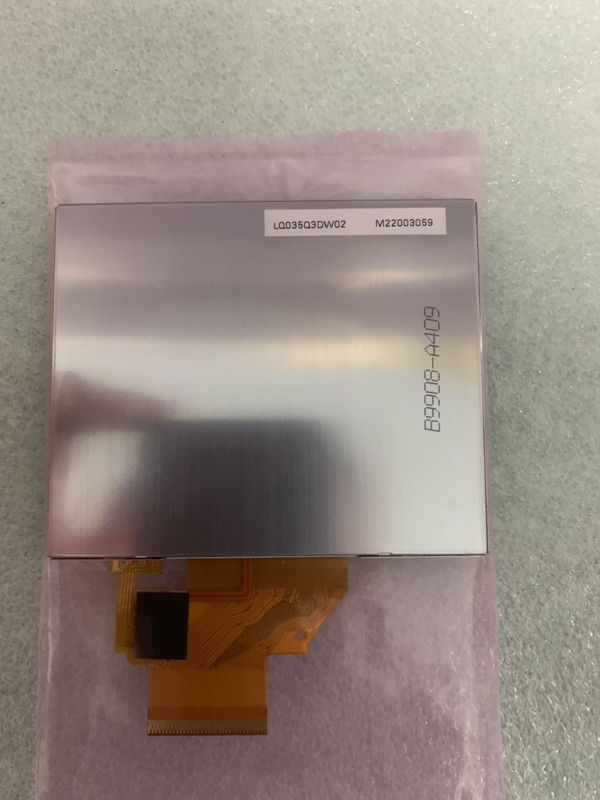

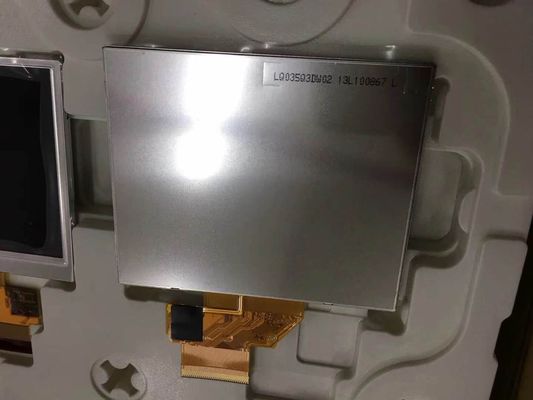

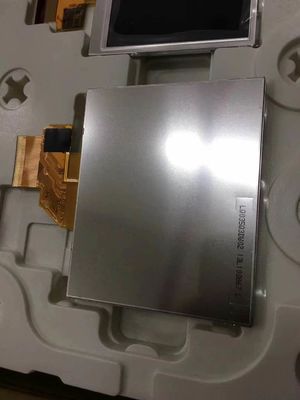

LQ035Q3DW02 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.56(W)×52.92(H) mm, outline size of 76.9(W)×63.9(H) mm, with surface treament of Antiglare, net weight of 33.0g (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ035Q3DW02 can provides 450 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.
