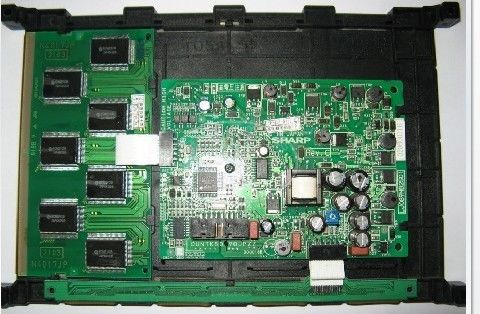

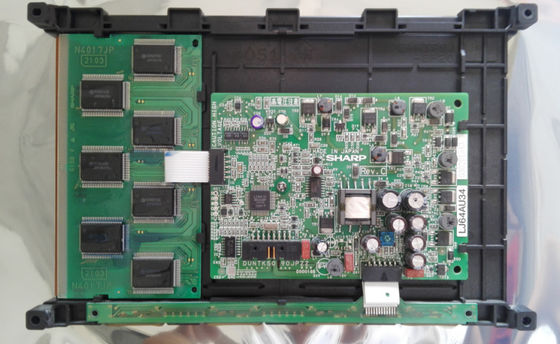

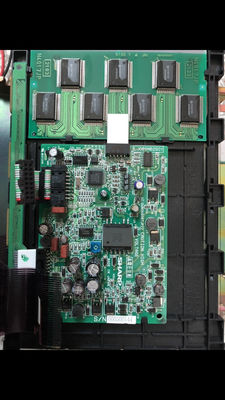

Product Details:
|
Panel Model: | LJ089MB2S01 | Panel Size: | 8.9" |
---|---|---|---|
Pixel Format: | Rectangle | Display Area: | 191.9(W)×119.9(H) Mm |
Resolution: | 640×400, 84PPI | Brightness: | 60 Cd/m² (Typ.) |
Lamp Type: | Self | Environment: | Operating Temp.: -5 ~ 55 °C ; Storage Temp.: -40 ~ 80 °C |
Highlight: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
Basic Info : | Panel Brand | SHARP | Panel Model | LJ089MB2S01 |
---|---|---|---|---|
Diagonal Size | 8.9" | Application | ||
Panel Type | EL , EL | Model Alias | - | |
Reliability : | Operating Temp. | -5 ~ 55 °C | Storage Temp. | -40 ~ 80 °C |
RoHS State | Vibration Rating | - |
Basic Information : | Brightness | 60 cd/m² (Typ.) | Contrast Ratio | - |
---|---|---|---|---|
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | - | |
Viewing Direction | - | Response Time | - | |
Color Performance : | Chromaticity | - | Color Numbers | Monochrome |
Pixel Features : | Pixel Format | 640×400 | Dot Pitch | 0.300×0.300 mm (H×V) |
---|---|---|---|---|
Configuration | Rectangle | Pixel Pitch | 0.300×0.300 mm (H×V) [84PPI] | |
Mechanical Size : | Display Area | 191.9×119.9 mm (H×V) | Bezel Area | - |
Outline Dim. | 246×158 mm (H×V) | Outline Depth | 26.0 (Typ.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:10 (H:V) | Shape Style | ||
Holes & Brackets : | Face mounting holes (4-Φ3.4) | |||
Other Features : | Weight | 390g (Typ.) | Surface | - |
