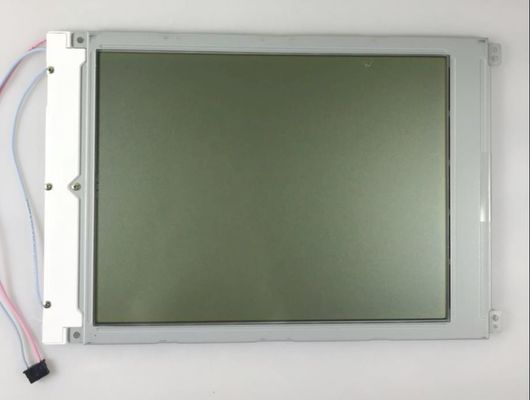

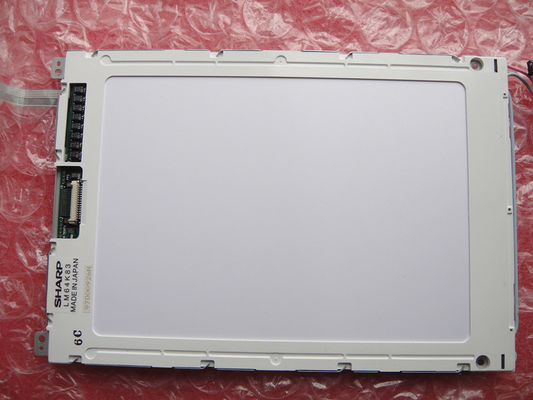

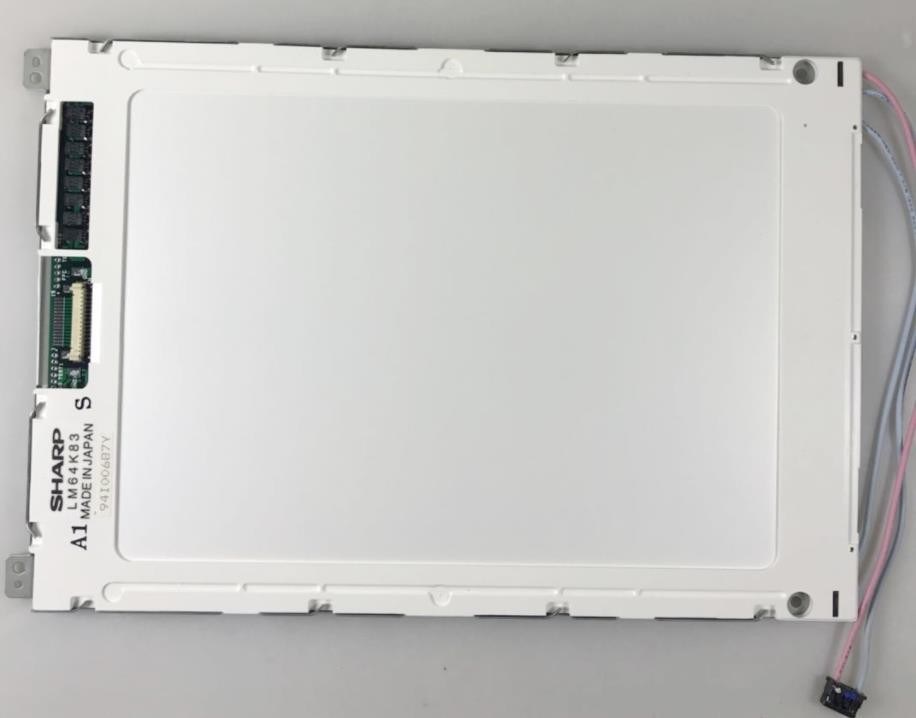

Product Details:
|
| Screen Size: | 9.4 Inch | Model Name: | LM64K83 |
|---|---|---|---|
| Manufacturer: | Sharp | Luminance: | 45 Cd/m² (Typ.) |
| Signal Type: | Parallel Data (4-bit) , 15 Pins Connector | Pixel Number: | 640×480 (VGA) 84PPI |
| Backlight: | 1 Pcs CCFL , No Driver | Max. Ratings: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 45 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Info : | Panel Brand | SHARP | Panel Model | LM64K83 |
|---|---|---|---|---|
| Diagonal Size | 9.4" | Application | ||
| Panel Type | FSTN-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 45 °C | Storage Temp. | -25 ~ 60 °C |
| Basic Information : | Brightness | 45 cd/m² (Typ.) | Contrast Ratio | 10:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 35/25/30/25 (Typ.)(CR≥2) | Optical Mode | STN, Black/White (Positive), Transflective | |
| Viewing Direction | - | Response Time | 100/150 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | Monochrome |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| Signal Systerm : | Parallel Data (4-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 22mA (Typ.) | ||
| Consumption | 430/650mW (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 53261-1510 | 1.25 mm | 15 pins | 1 pcs | ||
| Pixel Features : | Pixel Format | 640×480 [VGA] | Dot Pitch | 0.30×0.30 mm (H×V) |
|---|---|---|---|---|
| Configuration | Rectangle | Pixel Pitch | 0.30×0.30 mm (H×V) [84PPI] | |
| Mechanical Size : | Display Area | 191.97×143.97 mm (H×V) | Bezel Area | 201.4×153.4 mm (H×V) |
| Outline Dim. | 253×174 mm (H×V) | Outline Depth | 7.0 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4-Φ3.5) | |||
| Other Features : | Weight | 340g (Typ.) | Surface | - |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 390V (Typ.) | Current Input | 5/7mA (Typ./Max.) | ||
| Frequency | - | Kick-off Voltage | 1000V (Min.) | |||
| Consumption | 2W | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| MITSUMI | M63M83-04 | 2.5 mm | 4 pins | 1 pcs | BLL-4PINS-LNNH | |
LM64K83 supports display 640×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 191.97(W)×143.97(H) mm, outline size of 253(W)×174(H) mm, viewing area size of 201.4(W)×153.4(H) mm, net weight of 340g (Typ.). As a STN, Black/White (Positive), Transflective LCM product, LM64K83 can provides 45 cd/m² display brightness 10:1 transimissive contrast ratio, 8:1 (Typ.) reflective contrast ratio, 35/25/30/25 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 100/150 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side), external backlight driver is additionally needed.
