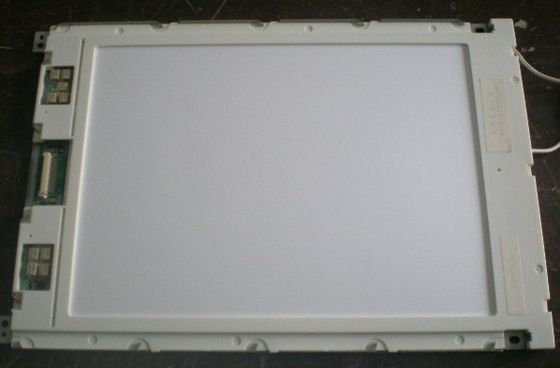

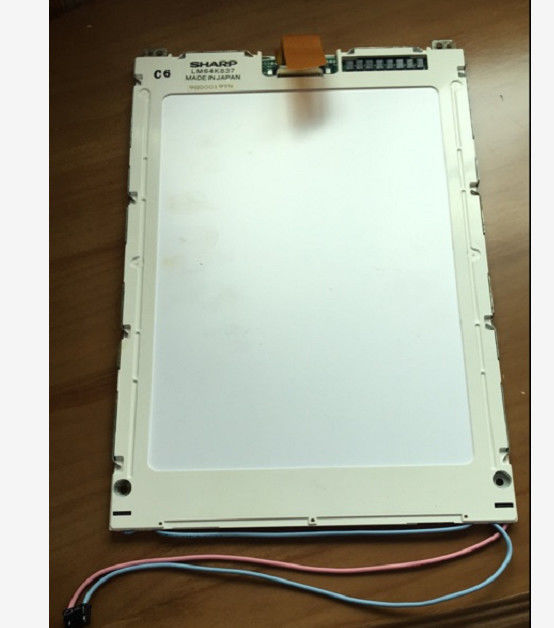

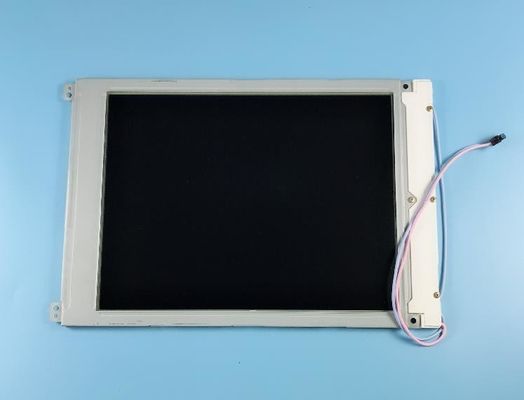

Product Details:
|
| Model Name: | LM64K837 | Screen Size: | 9.4 Inch |
|---|---|---|---|
| Screen Type: | LCM , FSTN-LCD | Pixel Number: | 640×480 (VGA) 84PPI |
| Luminance: | 45 (Typ.)(cd/m²) | Signal Type: | Parallel Data (4-bit) , 15 Pins Connector |
| Backlight: | 1 Pcs CCFL , No Driver | Max. Ratings: | Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 50 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Detail : | Manufacturer | SHARP | Model Name | LM64K837 |
|---|---|---|---|---|
| Panel Type | FSTN-LCD , LCM | Another Name | - | |
| Panel Size | 9.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -25 ~ 70 °C |
| Pixel Features : | Number of Pixel | 640×480 [VGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.30×0.30 mm | Pixel Pitch(W×H) | 0.30×0.30 mm [84PPI] | |
| Physical Size : | Active Viewing | 191.97(W)×143.97(H) mm | Overall Dim. | 253(W)×174(H) mm |
| Bezel Opening | 201.4(W)×153.4(H) mm | Overall Depth | 7.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-Φ3.5) | |||
| Other Detail : | Mass | 340g (Typ.) | Surface | - |
| Basic Information : | Luminance | 45 cd/m² (Typ.) | Contrast Ratio | 10 : 1 (Typ.) (Transmissive) 10:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 200/300 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 35/25/30/25 (Typ.)(CR≥2) | Operating Mode | STN, Black/White (Positive), Transflective | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | - | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| MITSUMI | M63M83-04 | 1 pcs | 2.5 mm | 4 pins | BLL-4PINS-LNNH | |
| Backlight Driver : | No | |||||
| Signal Electrical : | Input Current | 227mA (Typ.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 420/630mW (Typ./Max.) | Signal Interface | Parallel Data (4-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 53261-1510 | 1 pcs | 1.25 mm | 15 pins | ||
LM64K837 supports display 640×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 191.97(W)×143.97(H) mm, outline size of 253(W)×174(H) mm, viewing area size of 201.4(W)×153.4(H) mm, net weight of 340g (Typ.). As a STN, Black/White (Positive), Transflective LCM product, LM64K837 can provides 45 cd/m² display brightness 10:1 transimissive contrast ratio, 10:1 (Typ.) reflective contrast ratio, 35/25/30/25 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 200/300 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side), external backlight driver is additionally needed.
