Product Details:
|
| Brand: | Sharp | Model: | LM64P10 |
|---|---|---|---|
| Luminance: | 70cd/m² | Diagonal Size: | 7.2 Inch |
| Light Source: | CCFL [1 Pcs] , W/O Driver | Pixel Format: | 640×480 [VGA] 110PPI |
| Interface Type: | Parallel Data (4-bit) , 15 Pins Connector | Environment: | Operating Temperature: 0 ~ 45 °C ; Storage Temperature: -25 ~ 60 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Pixel Features : | Resolution | 640×480, VGA | Dot Pitch(mm) | 0.23×0.23 (H×V) |
|---|---|---|---|---|
| Pixel Format | Rectangle | Pixel Pitch(mm) | 0.23×0.23 (H×V) [110PPI] | |
| Mechanical Size : | Active Area(mm) | 147.18(H) × 110.38(V) | Bezel Area(mm) | 153.0(H) × 115.4(V) |
| Outline Dim.(mm) | 200.5(H) × 141(V) | Depth(mm) | 7.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.0, 2-R1.5) | |||
| Other Spec : | Weight | 260g (Typ.) | Treatment | - |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 25/35mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 480/630mW (Typ./Max.) | |||||
| Signal Type : | Parallel Data (4-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| molex | 53261-1510 | 1 pcs | 15 pins | 1.25 mm | ||
| Basic Information : | Luminance(cd/m²) | 70 (Typ.) | Contrast Ratio | 18:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 25/25/20/10 (Typ.)(CR>4) | Display Mode | STN, Black/White (Negative), Transmissive | |
| Best View on | - | Response(ms) | 70/80 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | - | Display Colors | Monochrome |
| Backlight Features: | Shape | - | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 320V (Typ.) | Current Supply | 5.0mA (Typ.) | ||
| Frequency | - | Startup Voltage | 1000V (Min.) | |||
| Consumption | 1.60W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| MITSUMI | M63M83-04 | 1 pcs | 4 pins | 2.5 mm | BLL-4PINS-LNNH | |
| Backlight Driver : | No | |||||

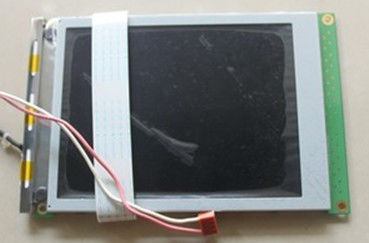

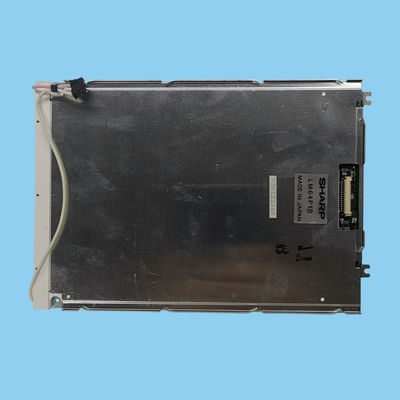

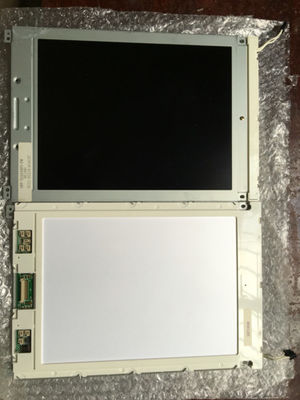

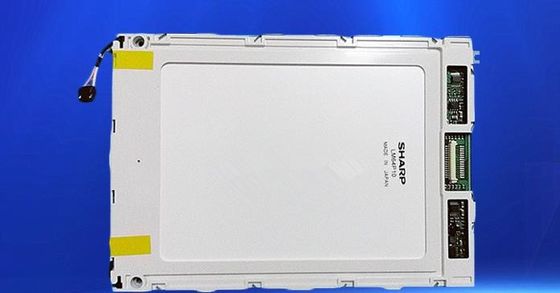

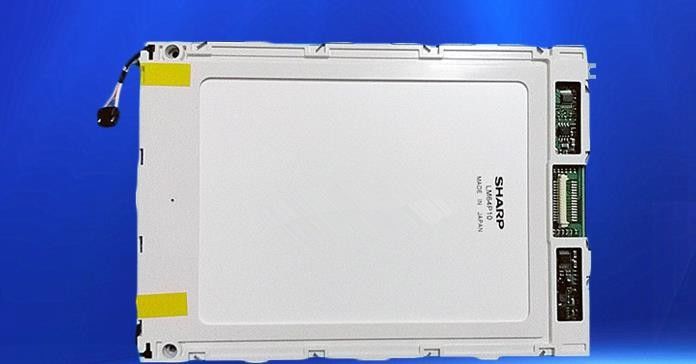

LM64P10 supports display 640×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 147.18(W)×110.38(H) mm, outline size of 200.5(W)×141(H) mm, viewing area size of 153.0(W)×115.4(H) mm, net weight of 260g (Typ.). As a STN, Black/White (Negative), Transmissive LCM product, LM64P10 can provides 70 cd/m² display brightness 18:1 transimissive contrast ratio, 25/25/20/10 (Typ.)(CR>4) (L/R/U/D) viewing angle , and response time of 70/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
