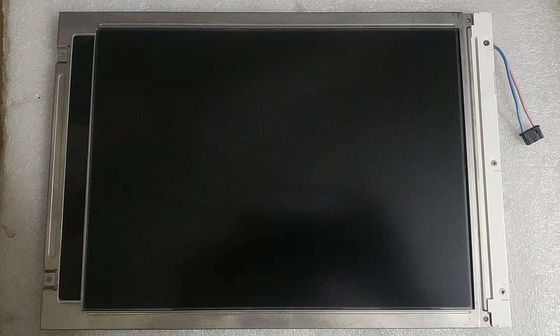

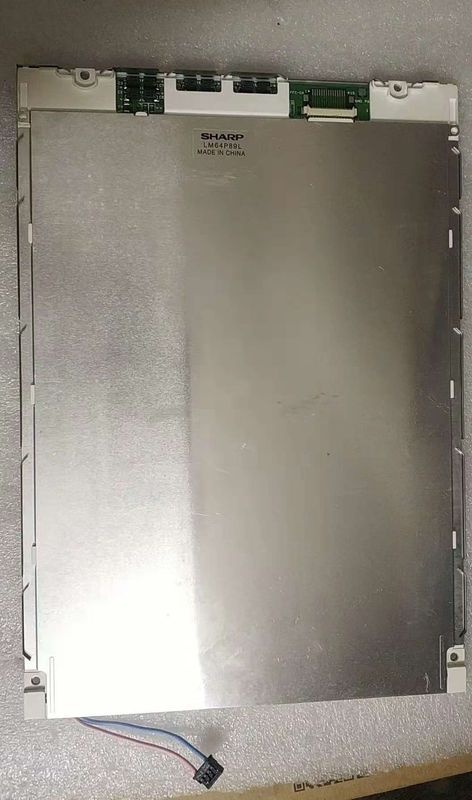

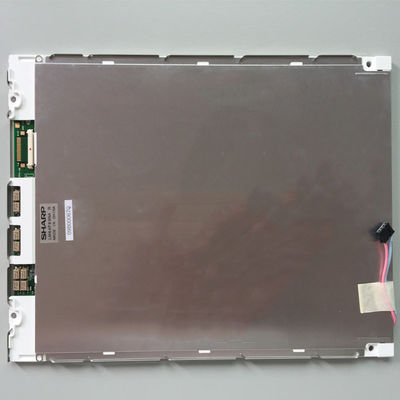

Product Details:
|
| Screen Size: | 10.4 Inch | Model Name: | LM64P89L |
|---|---|---|---|
| Manufacturer: | Sharp | Luminance: | 500cd/m² |
| Backlight: | 1 Pcs CCFL , 25K Hours , No Driver | Signal Type: | Parallel Data (4-bit) , 15 Pins Connector |
| Pixel Number: | 640×480 (VGA) 76PPI | Max. Ratings: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 45 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Luminance | 75 cd/m² (Typ.) | Contrast Ratio | 18 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 200/150 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 25/25/20/10 (Typ.)(CR>4) | Operating Mode | STN, Black/White (Positive), Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
| Signal Electrical : | Input Current | 24/36mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 450/680mW (Typ./Max.) | Signal Interface | Parallel Data (4-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 53261-1510 | 1 pcs | 1.25 mm | 15 pins | ||
| Pixel Features : | Number of Pixel | 640×480 [VGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.330×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] | |
| Physical Size : | Active Viewing | 211.17(W)×158.37(H) mm | Overall Dim. | 268(W)×190(H) mm |
| Bezel Opening | 223.0(W)×169.0(H) mm | Overall Depth | 7.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4 pcs) on left, right bezel | |||
| Other Detail : | Mass | 340g (Typ.) | Surface | - |
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 25K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 5.0/6.0mA (Typ./Max.) | Input Voltage | 500V (Typ.) | ||
| Frequency | 50KHz (Typ.) | Turn-on Voltage | 1000/1500V (Typ./Max.) | |||
| Consumption | 2.1W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| MITSUMI | M63M83-04 | 1 pcs | 2.5 mm | 4 pins | BLL-4PINS-LNNH | |
| Backlight Driver : | No | |||||
