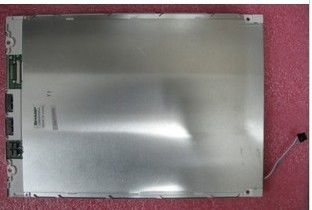

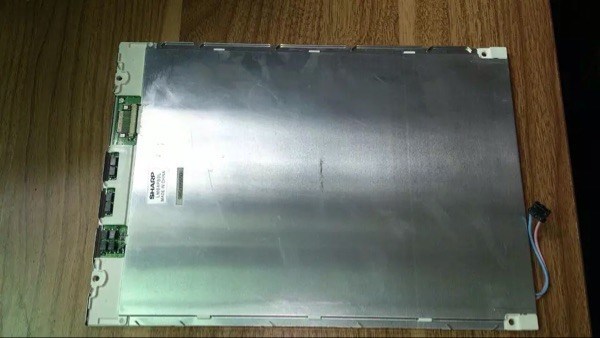

Product Details:
|
| Model: | LM64P89N | Brand: | Sharp |
|---|---|---|---|
| Type: | FSTN-LCD , LCM | Luminance: | 75 Cd/m² (Typ.) |
| Diagonal Size: | 10.4 Inch | Pixel Format: | 640×480 [VGA] 76PPI |
| Light Source: | CCFL [1 Pcs] , 25K Hours , W/O Driver | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LM64P89N | FSTN-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -25 ~ 60 °C | - |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 75 cd/m² (Typ.) | STN, Black/White (Positive), Transmissive | 18:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 20/25/20/10 (Typ.)(CR≥4) | - | 200/150 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | Monochrome | - |
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640×480, VGA | Rectangle | 0.330×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.17×158.37 mm | 223.0×169.0 mm | 286×190 mm | 7.0 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (4-Φ3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 450g (Typ.) | Antiglare, Hard coating (3H) | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | - | 1 pcs | 25K(Typ.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 5.0/6.0mA (Typ./Max.) | 500V (Typ.) | 2.1W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1000/1500V (Min./Max.) | ||||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| MITSUMI | M63M83-04 | 1 pcs | 2.5 mm | 4 pins | BLL-4PINS-HNNL | |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 24/36mA (Typ./Max.) | 5.0V (Typ.) | 450/680mW (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel Data (4-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| molex | 53261-1510 | 1 pcs | 1.25 mm | 15 pins | ||
LM64P89N supports display 640×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 211.17(W)×158.37(H) mm, outline size of 286(W)×190(H)×7(D) mm, viewing area size of 223.0(W)×169.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 450g (Typ.). As a STN, Black/White (Positive), Transmissive LCM product, LM64P89N can provides 75 cd/m² display brightness 18:1 transimissive contrast ratio, 20/25/20/10 (Typ.)(CR≥4) (L/R/U/D) viewing angle , and response time of 200/150 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, external backlight driver is additionally needed.
