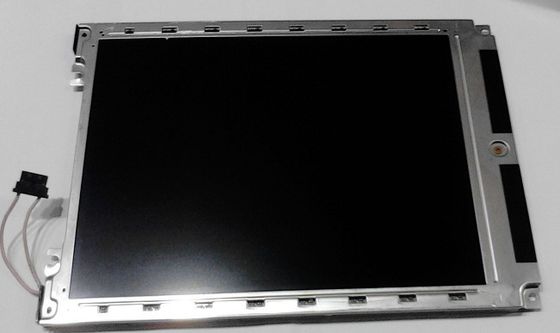

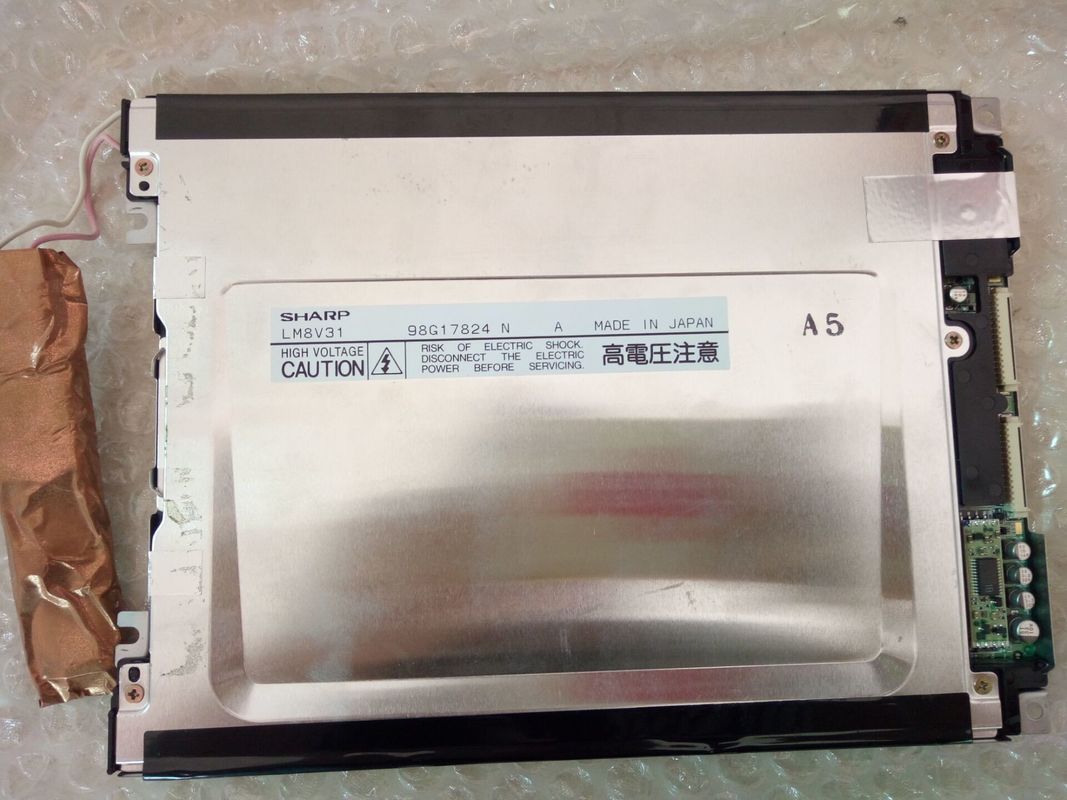

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LM8V31 |
|---|---|---|---|
| Screen Size: | 7.7 Inch | Luminance: | 55cd/m² |
| Signal Type: | Parallel Data (8-bit) , 29 Pins Connector | Backlight: | 1 Pcs CCFL , 25K Hours , No Driver |
| Pixel Number: | 640(RGB)×480 (VGA) 103PPI | Max. Ratings: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 40 °C |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Screen Size : | 7.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.082×0.246 mm | 0.246×0.246 mm [103PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 157.42×118.06 mm | 162.4×123.1 mm | 197×142.5 mm | 9.5 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| - | - | - | 4-wire Resistive Touch, F/G | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 310g (Typ.) | - | - | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 25K(Min.) | 1 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 490/539V (Typ./Max.) | 3.0/5.0mA (Typ./Max.) | 1.47W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 30/70KHz (Min./Max.) | 700/1050V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HONDA | QZ-19-3F01 | 1 pcs | 3 pins | BLL-3PINS-LNH | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 55 cd/m² (Typ.) | STN, Normally Black, Transmissive | 30:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 30/30/25/15 (Typ.)(CR≥5) | 270/80 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8841K | Color | X:0.275; Y:0.330 |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 40/60mA (Typ./Max.) | 130/200mW (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel Data (8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| molex | 53261-1510 | 1 pcs | 15 pins | 1.25 mm | ||
| molex | 53261-1410 | 1 pcs | 14 pins | 1.25 mm | ||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
