Product Details:
|

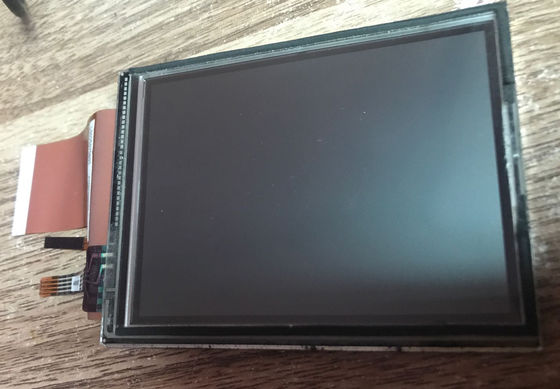

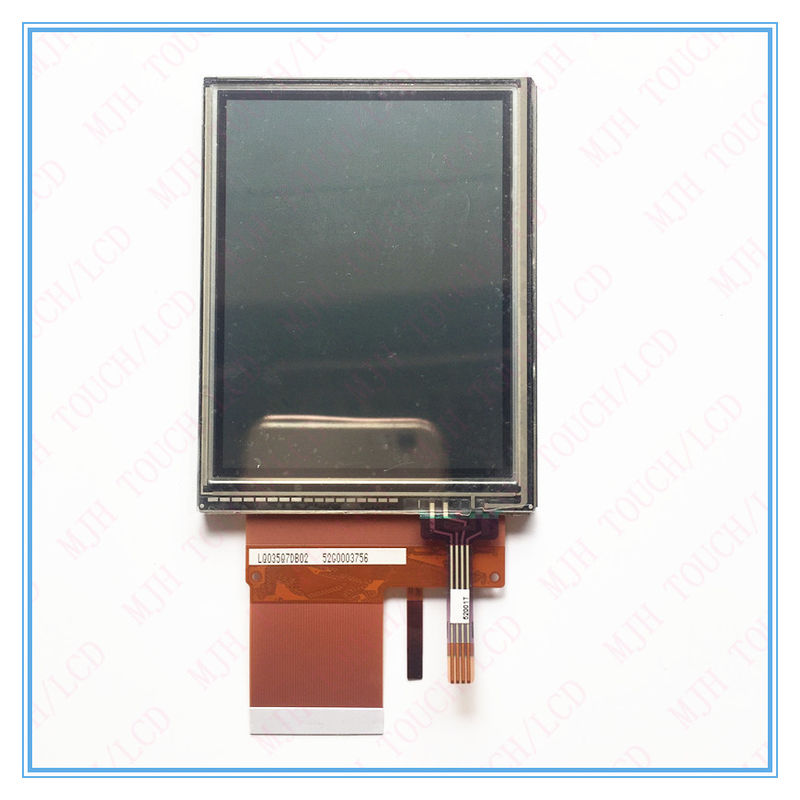

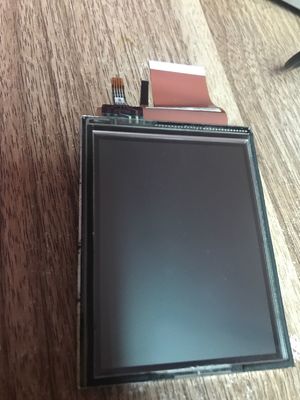

| Manufacturer: | Sharp | Model Name: | LQ035Q7DB02 |
|---|---|---|---|
| Luminance: | 50 (Typ.)(cd/m²) | Screen Size: | 3.5INCH |
| Viewing Angle: | 40/40/40/50 | Pixel Number: | 240(RGB)×320 (QVGA) 113PPI |
| Backlight: | 6S1P WLED , 10K Hours , No Driver | Max. Ratings: | Storage Temp.: -25 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| High Light: | QVGA 113PPI Industrial Lcd Display,3.5" LCM Industrial Lcd Display,240×320RGB Sharp LCD Panel |
||
LQ035 Series LQ035Q7DB03R LQ035Q7DB03F LQ035Q7DB03 LQ035Q7DB02R LQ035Q7DB02
| Pixel Features : | Resolution | 240(RGB)×320, QVGA | Dot Pitch(mm) | 0.0745×0.2235 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2235×0.2235 (H×V) [113PPI] | |
| Mechanical Size : | Active Area(mm) | 53.64(H) × 71.52(V) | Bezel Area(mm) | 57.4(H) × 75.2(V) |
| Outline Dim.(mm) | 65(H) × 85(V) | Depth(mm) | 4.5±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 3:4 (H:V) | Orientation | Portrait type | |
| Touch Panel : | Touch Points | 1 point | Touch Panel | 4-wire Resistive Touch |
| TP Controller | Without touch controller | Touch Signal | - | |
| Other Spec : | Weight | 50.0g (Typ.) | Treatment | Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 50 (Typ.) | Contrast Ratio | 70:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2) | Display Mode | TN, Normally White, Transflective | |
| Best View on | 6 o'clock | Response(ms) | 30/50 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.320; Y:0.340 | Display Colors | 262K (6-bit) |
| Color Temperature | 6066K | White Uniformity | - | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Type | - | Reflectance | 7/11% (Min./Typ.) |
| Signal Electrical : | Voltage Supply | 5.0/3.3/15.0/-15.0V (Typ.)(VSHA/VSHD/VDD/VEE) | Current Supply | 6.0/3.5/0.10/-0.10mA (Typ.)(ISHA/ISHD/IDD/IEE) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | ||||
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6S1P | Life Time | 10K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 21.6V (Typ.), 24V (Max.) | Current Supply | 15/20mA (Typ./Max.) | ||
| Consumption | 324mW (Typ.) | |||||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 5 pins | 0.5 mm | BLE-5PINS-ANNCN | |||
| Backlight Driver : | No | |||||
