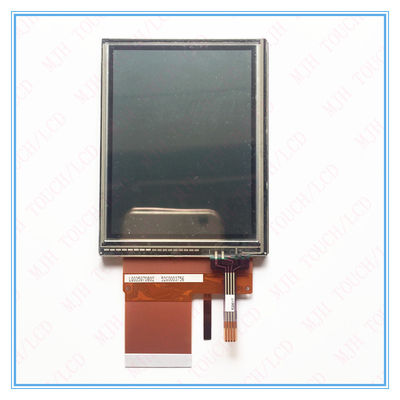

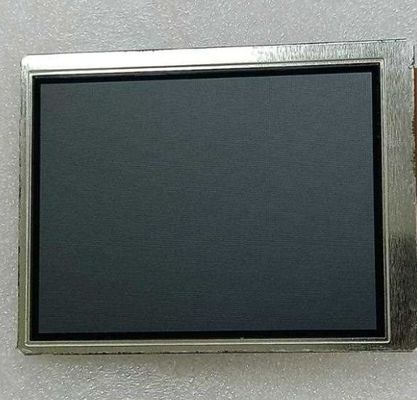

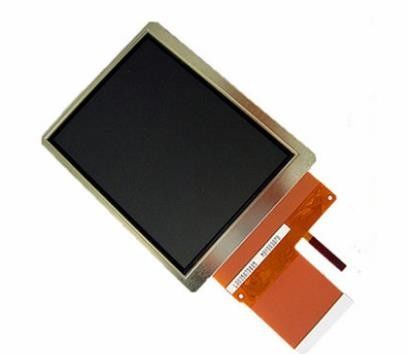

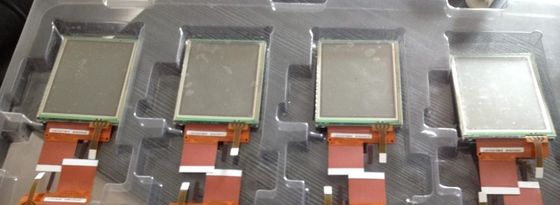

Product Details:
|
| Panel Model: | LQ035Q7DB02R | Panel Brand: | Sharp |
|---|---|---|---|
| Panel Size: | 3.5INCH | Resolution: | 240(RGB)×320, QVGA, 113PPI |
| Brightness: | 50 Cd/m² (Typ.) | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 50 Pins FPC |
| Lamp Type: | WLED , 10K Hours , Without Driver | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -25 ~ 70 °C |
| Highlight: | LCM 240×320RGB Sharp TFT LCD Panel,50nits Sharp TFT LCD Panel,LQ035Q7DB02R |
||
LQ035 Series LQ035Q7DB03R LQ035Q7DB03F LQ035Q7DB03 LQ035Q7DB02R LQ035Q7DB02
| Screen Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 240(RGB)×320, QVGA | RGB Vertical Stripe | 0.0745×0.2235 mm | 0.2235×0.2235 mm [113PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 53.64×71.52 mm | 57.4×75.2 mm | 65×85 mm | 4.5±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:4 | Portrait type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| 1 point | - | Without touch controller | 4-wire Resistive Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 50.0g (Typ.) | - | Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 50 cd/m² (Typ.) | TN, Normally White, Transflective | 70:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 40/40/40/50 (Typ.)(CR≥2) | 30/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6476K | 262K (6-bit) | X:0.310; Y:0.350 | |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 7/11% (Min./Typ.) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10K(Typ.) | - | - | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 21.6V (Typ.), 24V (Max.) | 15/20mA (Typ./Max.) | 324mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | FPC | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 5 pins | 0.5 mm | BLE-5PINS-ANNCN | |||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) | 3.0/2.0/0.10/-0.10mA (Typ.)(ISHA/ISHD/IDD/IEE) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | ||||
LQ035Q7DB02R supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.64(W)×71.52(H) mm, outline size of 65(W)×85(H)×4.8(D) mm, viewing area size of 57.4(W)×75.2(H) mm, with surface treament of Hard coating (3H), net weight of 50.0g (Typ.). As a TN, Normally White, Transflective LCM product, LQ035Q7DB02R can provides 50 cd/m² display brightness 70:1 transimissive contrast ratio, 8:1 (Typ.) reflective contrast ratio, 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
