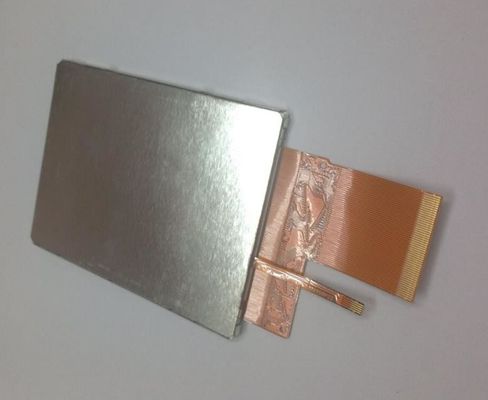

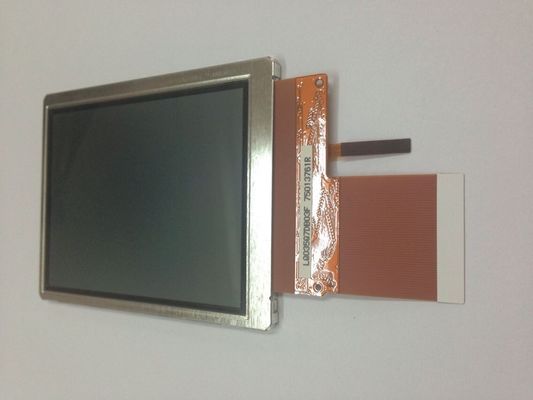

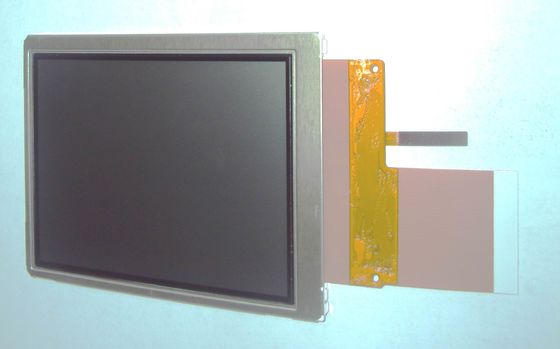

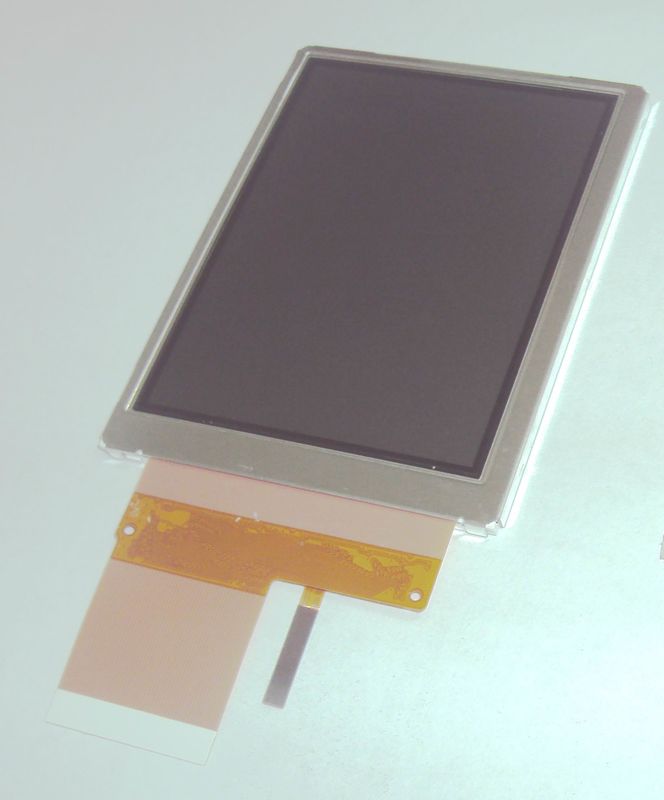

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ035Q7DB03F |
|---|---|---|---|
| Luminance: | 55cd/m² | Screen Size: | 3.5 Inch |
| Signal Type: | Parallel RGB (1 Ch, 6-bit) , 50 Pins FPC | Pixel Number: | 240(RGB)×320 (QVGA) 113PPI |
| Backlight: | WLED , 10K Hours , No Driver | Max. Ratings: | Storage Temp.: -25 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| High Light: | 240×320RGB Sharp TFT LCD Screen,55cd/m2 Sharp TFT LCD Screen,LQ035Q7DB03F |
||
LQ035 Series LQ035Q7DB03R LQ035Q7DB03F LQ035Q7DB03 LQ035Q7DB02R LQ035Q7DB02
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 55 (Typ.) | 40/40/40/50 (Typ.)(CR≥2) | 30/50 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transflective | 85 : 1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6066K | 262K (6-bit) | X:0.320; Y:0.340 | |
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | 8/13% (Min./Typ.) |
| Panel Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 240(RGB)×320 [QVGA] | RGB Vertical Stripe | 0.2235×0.2235 [113PPI] | 0.0745×0.2235 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 53.64(H) × 71.52(V) | 57.4(H) × 75.2(V) | 65(H) × 85(V) | 3.4±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:4 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 40.0g (Typ.) | - | Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 10K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 21.6V (Typ.), 24V (Max.) | 15/20mA (Typ./Max.) | 324mW (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 5 pins | 1 pcs | BLE-5PINS-ANNCN | |||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) | 3.0/2.0/0.05/-0.05mA (Typ.)(ISHA/ISHD/IDD/IEE) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
LQ035Q7DB03F supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.64(W)×71.52(H) mm, outline size of 65(W)×85(H)×3.7(D) mm, viewing area size of 57.4(W)×75.2(H) mm, with surface treament of Hard coating (3H), net weight of 40.0g (Typ.). As a TN, Normally White, Transflective LCM product, LQ035Q7DB03F can provides 55 cd/m² display brightness 85:1 transimissive contrast ratio, 15:1 (Typ.) reflective contrast ratio, 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
