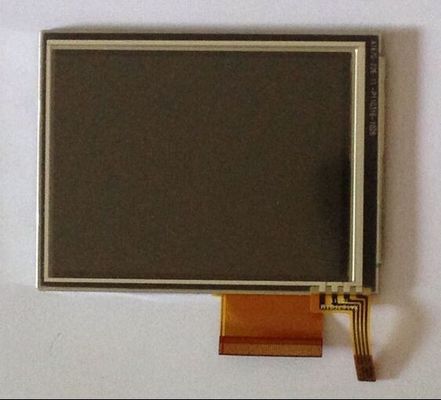

Product Details:
|
| Model: | LQ035Q7DH05 | Brand: | Sharp |
|---|---|---|---|
| Pixel Format: | 240(RGB)×320 [QVGA] 113PPI | Diagonal Size: | 3.5 Inch |
| Light Source: | WLED , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 61 Pins FPC |
| Luminance: | 110 Cd/m² (Typ.) | Environment: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C |
| Viewing Angle: | 50/50/50/50 (Typ.)(CR≥2) | ||
| Highlight: | 240×320RGB Sharp TFT LCD Display,110cd/m2 Sharp TFT LCD Display,LQ035Q7DH05 |
||
LQ035 Series LQ035Q7DH08 LQ035Q7DH07 LQ035Q7DH06 LQ035Q7DH05 LQ035Q7DH04
| Panel Size : | 3.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 240(RGB)×320, QVGA | RGB Vertical Stripe | 0.0745×0.2235 mm | 0.2235×0.2235 mm [113PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 53.64×71.52 mm | 57.4×75.2 mm | 65×86.2 mm | 4.0±0.2 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:4 (W : H) | Portrait type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| 1 point | Without touch controller | - | 4-wire Resistive Touch | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 45.0g (Typ.) | Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 110 cd/m² (Typ.) | TN, Normally White, Transflective | 95:1 (Typ.) (Transmissive) 3:1 (Typ.) (Reflective) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 50/50/50/50 (Typ.)(CR≥2) | 6 o'clock | 15/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 262K (6-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 29% | 39% | 30% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 30% | 22% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 2.5/4% (Min./Typ.) | |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 3.0/1.5/0.05/-0.05mA (Typ.)(ISHA/ISHD/IDD/IEE) | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.3 mm | 61 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 15/20mA (Typ./Max.) | 22.2/25.2V (Typ./Max.) | 333mW (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
LQ035Q7DH05 supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.64(W)×71.52(H) mm, outline size of 65(W)×86.2(H)×4.2(D) mm, viewing area size of 57.4(W)×75.2(H) mm, with surface treament of Hard coating (3H), net weight of 45.0g (Typ.). As a TN, Normally White, Transflective LCM product, LQ035Q7DH05 can provides 110 cd/m² display brightness 95:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 50/50/50/50 (Typ.)(CR≥2) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 29% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
