LQ035Q7DH07 Sharp 3.5" LCM 240×320RGB  250cd/m² INDUSTRIAL LCD DISPLAY

LQ035Q7DH07  Sharp  3.5"  LCM  240×320RGB  250cd/m²  INDUSTRIAL LCD DISPLAY
LQ035Q7DH07  Sharp  3.5"  LCM  240×320RGB  250cd/m²  INDUSTRIAL LCD DISPLAY LQ035Q7DH07  Sharp  3.5"  LCM  240×320RGB  250cd/m²  INDUSTRIAL LCD DISPLAY LQ035Q7DH07  Sharp  3.5"  LCM  240×320RGB  250cd/m²  INDUSTRIAL LCD DISPLAY LQ035Q7DH07  Sharp  3.5"  LCM  240×320RGB  250cd/m²  INDUSTRIAL LCD DISPLAY LQ035Q7DH07  Sharp  3.5"  LCM  240×320RGB  250cd/m²  INDUSTRIAL LCD DISPLAY

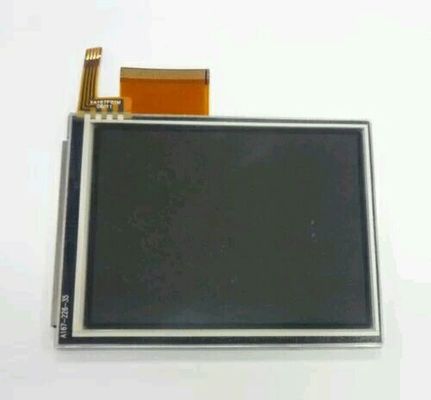

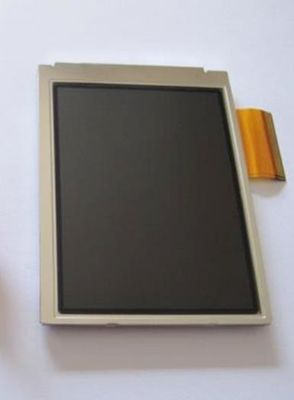

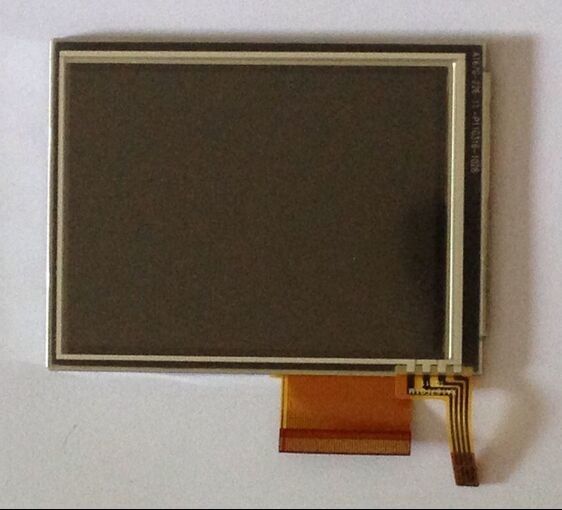

Large Image :  LQ035Q7DH07 Sharp 3.5" LCM 240×320RGB  250cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ035Q7DH07
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 100 pcs / box 7.45 Kgs 575×332×209 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 1000PCS

LQ035Q7DH07 Sharp 3.5" LCM 240×320RGB  250cd/m² INDUSTRIAL LCD DISPLAY

Description
Panel Brand: Sharp Panel Model: LQ035Q7DH07
Resolution: 240(RGB)×320, QVGA, 113PPI Panel Size: 3.5"
Brightness: 250cd/m² Lamp Type: 6S1P WLED , 5K Hours , Without Driver
Signal Interface: Parallel RGB (1 Ch, 6-bit) , 50 Pins FPC Environment: Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -25 ~ 70 °C
High Light:

LVDS TFT LCD Panel

,

WLED LVDS TFT Touch Panel

LQ035 Series LQ035Q7DH08 LQ035Q7DH07 LQ035Q7DH06 LQ035Q7DH05 LQ035Q7DH04



Sharp LQ035Q7DH07 Mechanical Details

Pixel Features : Resolution 240(RGB)×320, QVGA Dot Pitch(mm) 0.0745×0.2235 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2235×0.2235 (H×V) [113PPI]
Mechanical Size : Active Area(mm) 53.64(H) × 71.52(V) Bezel Area(mm) 57.4(H) × 75.2(V)
Outline Dim.(mm) 65(H) × 86.2(V) Depth(mm) 3.2±0.2
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 3:4 (H:V) Orientation Portrait type
Other Spec : Weight 34.0g (Typ.) Treatment Hard coating (3H)





Sharp LQ035Q7DH07 Interface Details

Signal Electrical : Voltage Supply 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) Current Supply 3.0/1.5/0.05/-0.05mA (Typ.)(ISHA/ISHD/IDD/IEE)
Signal Type : Parallel RGB (1 ch, 6-bit) Signal Voltage -
Interface Features : Position - Type FPC
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
    1 pcs 50 pins 0.5 mm





Sharp LQ035Q7DH07 Optical Details

Basic Information : Luminance(cd/m²) 250 (Typ.) Contrast Ratio 80:1 (Typ.) (Transmissive) 3:1 (Typ.) (Reflective)
Viewing Angle 40/40/40/50 (Typ.)(CR≥2)  Display Mode TN, Normally White, Transflective
Best View on 6 o'clock Response(ms) 30/50 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.300; Y:0.330 Display Colors 262K (6-bit)
Color Temperature 7203K White Uniformity -
1931 Color Gamlt : NTSC Ratio 26% sRGB 35% coverage
Adobe RGB 27% coverage DCI-P3 26% coverage
Rec.2020 19% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -
3D Type - Reflectance 2.5/4.0% (Min./Typ.)





Sharp LQ035Q7DH07 Backlight Details

Backlight Features: Shape 1 string Type WLED Position Edge light type
Replacement - Quantity 6S1P Life Time 5K(Typ.) (Hours)
Lamp Electrical : Voltage Supply 19.2/21.6V (Typ./Max.) Current Supply 20/22mA (Typ./Max.)
Consumption 384mW (Typ.)
Interface Features : Position - Type Included in panel signal interface
Backlight Driver : No
