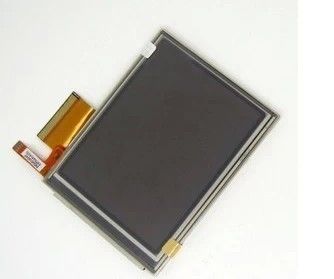

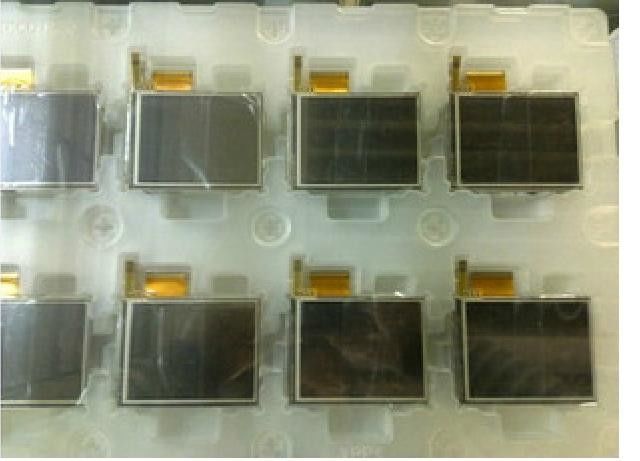

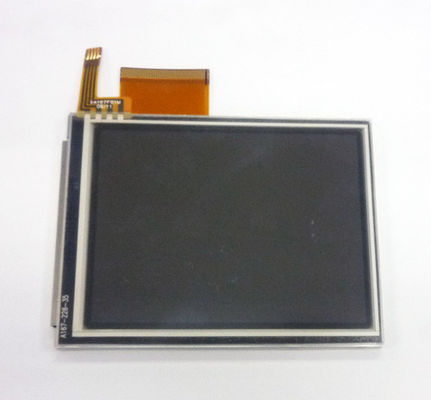

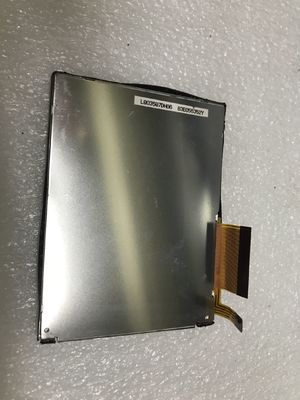

Product Details:
|
| Panel Model: | LQ035Q7DH08 | Panel Brand: | Sharp |
|---|---|---|---|
| Brightness: | 225 Cd/m² (Typ.) | Panel Size: | 3.5inch |
| Resolution: | 240(RGB)×320, QVGA, 113PPI | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 50 Pins FPC |
| Lamp Type: | 6S1P WLED , 10K Hours , Without Driver | Environment: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -25 ~ 70 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ035 Series LQ035Q7DH08 LQ035Q7DH07 LQ035Q7DH06 LQ035Q7DH05 LQ035Q7DH04
| Pixel Features : | Resolution | 240(RGB)×320, QVGA | Dot Pitch(mm) | 0.0745×0.2235 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2235×0.2235 (H×V) [113PPI] | |
| Mechanical Size : | Active Area(mm) | 53.64(H) × 71.52(V) | Bezel Area(mm) | 57.4(H) × 75.2(V) |
| Outline Dim.(mm) | 65(H) × 86.2(V) | Depth(mm) | 4.0±0.2 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 3:4 (H:V) | Orientation | Portrait type | |
| Touch Panel : | Touch Points | 1 point | Touch Panel | 4-wire Resistive Touch |
| TP Controller | Without touch controller | Touch Signal | - | |
| Other Spec : | Weight | 45.0g | Treatment | Antiglare, Hard coating (2H) |
| Basic Information : | Luminance(cd/m²) | 225 (Typ.) | Contrast Ratio | 80:1 (Typ.) (Transmissive) 3:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 45/45/65/40 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transflective | |
| Best View on | 6 o'clock | Response(ms) | 30/50 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.330 | Display Colors | 262K (6-bit) |
| Color Temperature | 7203K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Type | - | Reflectance | 2.5/4.0% (Min./Typ.) |
| Signal Electrical : | Voltage Supply | 5.0/3.3/15.0/-10V (Typ.)(VSHA/VSHD/VDD/VEE) | Current Supply | 3.0/1.5/0.05/-0.05mA (Typ.)(ISHA/ISHD/IDD/IEE) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.2VSHD; 0.8VSHD≤VIH≤VSHD | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 50 pins | |||||
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6S1P | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 19.2/21.6V (Typ./Max.) | Current Supply | 20/22mA (Typ./Max.) | ||
| Consumption | 0.384W (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
LQ035Q7DH08 supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.64(W)×71.52(H) mm, outline size of 65(W)×86.2(H)×4.2(D) mm, viewing area size of 57.4(W)×75.2(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 45.0g. As a TN, Normally White, Transflective LCM product, LQ035Q7DH08 can provides 225 cd/m² display brightness 80:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 45/45/65/40 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
