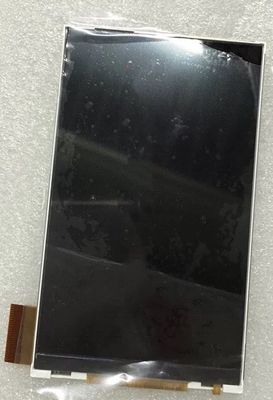

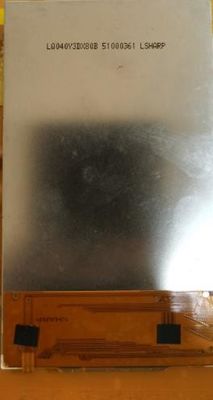

Product Details:
|
| Brand: | Sharp | Model: | LQ040Y3DX80B |
|---|---|---|---|
| Diagonal Size: | 4.0 Inch | Luminance: | 600 Cd/m² (Typ.) |
| Pixel Format: | 480(RGB)×800 [WVGA] 235PPI | Light Source: | WLED |
| Interface Type: | Parallel RGB (1 Ch, 8-bit) + SPI , 51 Pins FPC | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ040 Series LQ040Y3DX80B LQ040Y3DX80A LQ040Y3DX80
| Screen Size : | 4.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×800, WVGA | RGB Vertical Stripe | 0.036×0.108 mm | 0.108×0.108 mm [235PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 51.84×86.4 mm | - | 57.14×96.85 mm | 1.85±0.15 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:5 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 20.0g (Typ.) | - | - | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | New Mode2, Normally Black, Transmissive | 650:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7351K | 16.7M (8-bit) | X:0.300; Y:0.320 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 1 string | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 20.8/25.6V (Min./Max.) | 20mA (Typ.) | 720mW (Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 2.8/1.8V (Typ.)(VCI/IOVCC) | - | 75mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3IOVCC; 0.7IOVCC≤VIH≤IOVCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 8-bit) + SPI | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 51 pins | 0.3 mm | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
