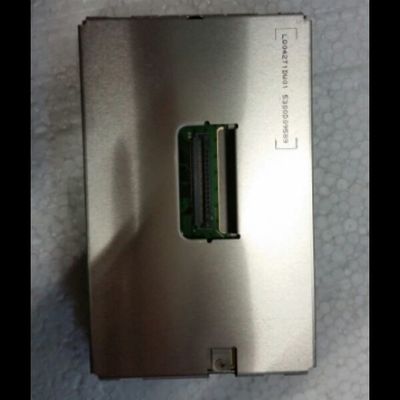

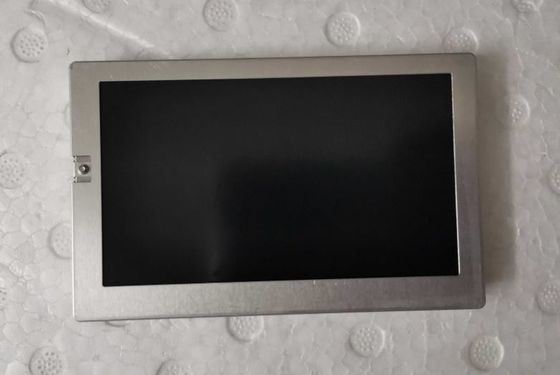

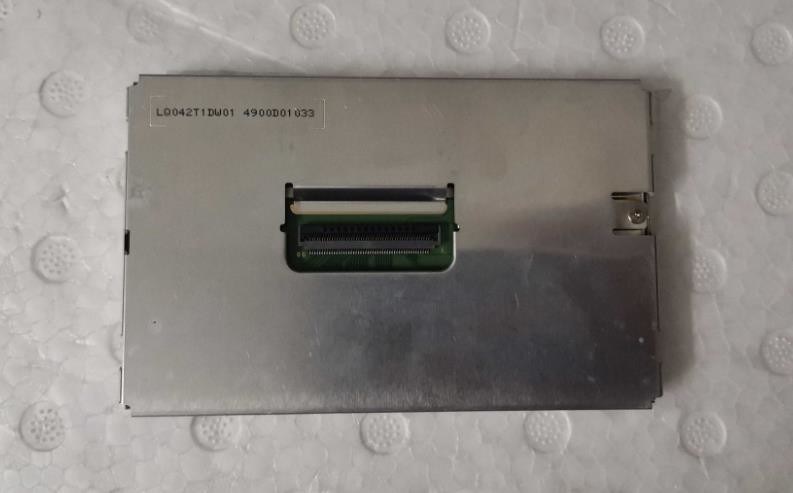

Product Details:
|
| Panel Model: | LQ042T1DW01 | Panel Brand: | Sharp |
|---|---|---|---|
| Resolution: | 480×272(RGB), WQVGA, 131PPI | Brightness: | 400 Cd/m² (Typ.) |
| Panel Size: | 4.2INCH | Signal Interface: | CMOS (1 Ch, 8-bit) , 50 Pins Connector |
| Lamp Type: | WLED , 50K Hours , With LED Driver | Environment: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ042 Series LQ042T5DZ04 LQ042T5DZ01 LQ042T1DW01
| Screen Size : | 4.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480×272(RGB), WQVGA | RGB Horizontal Stripe | 0.1935×0.0645 mm | 0.1935×0.1935 mm [131PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 92.88×52.632 mm | 94.48×54.272 mm | 109.5×69 mm | 9.6±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 85.0g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | ASV, Normally Black, Transmissive | 1300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9006K | 16.2M (6-bit + FRC) | X:0.285; Y:0.300 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 65% | 88% | 68% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 68% | 49% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in panel signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0±1.2V | 200/300mA (Typ./Max.) | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 15/50mA (Typ./Max.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | FH52-50S-0.5SH | 1 pcs | 50 pins | 0.5 mm | ||
LQ042T1DW01 supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 92.88(W)×52.632(H) mm, outline size of 109.5(W)×69(H)×10.1(D) mm, viewing area size of 94.48(W)×54.272(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 85.0g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ042T1DW01 can provides 400 cd/m² display brightness 1300:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 64% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver.
