Product Details:
|

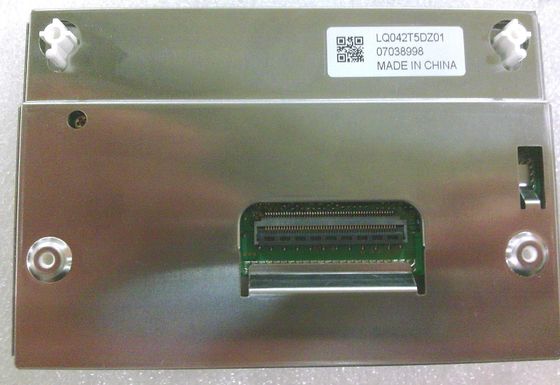

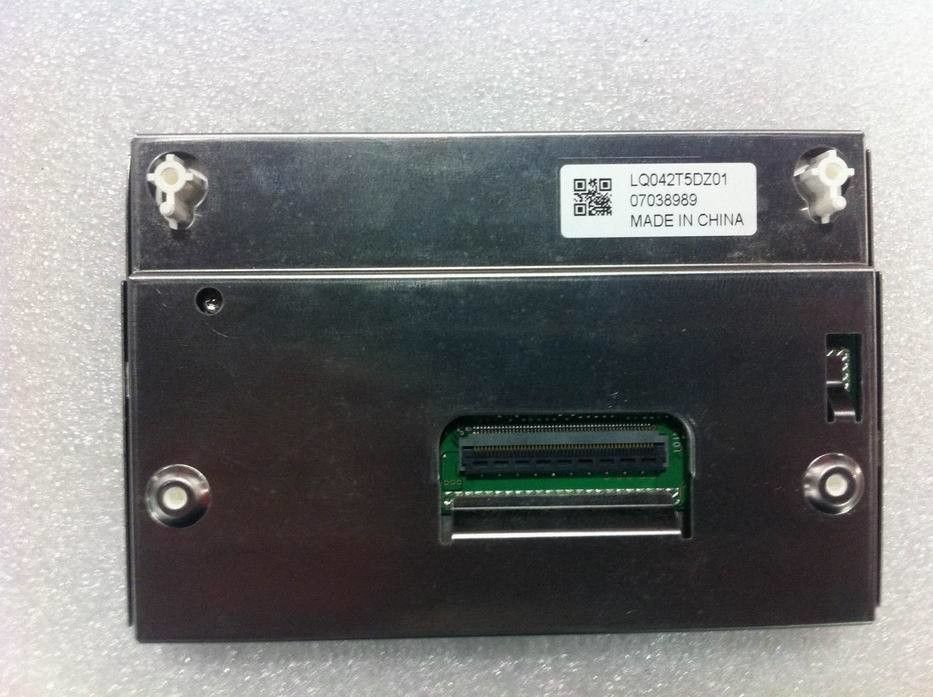

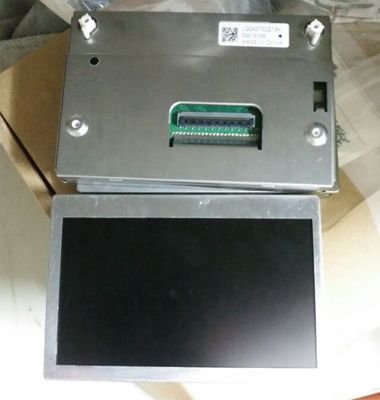

| Model: | LQ042T5DZ01 | Brand: | Sharp |
|---|---|---|---|
| Luminance: | 500 Cd/m² (Typ.) | Diagonal Size: | 4.2 Inch |
| Light Source: | WLED | Interface Type: | CMOS (1 Ch, 6-bit) |
| Pixel Format: | 480(RGB)×272 [WQVGA] 131PPI | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ042 Series LQ042T5DZ04 LQ042T5DZ01 LQ042T1DW01
| Pixel Features : | Resolution | 480(RGB)×272, WQVGA | Dot Pitch(mm) | 0.066×0.198 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.198×0.198 (H×V) [131PPI] | |
| Mechanical Size : | Active Area(mm) | 92.88(H) × 52.632(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 102.5(H) × 69(V) | Depth(mm) | 12.0 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 120g (Typ.) | Treatment | - |
| Basic Information : | Brand | SHARP | Model | LQ042T5DZ01 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 4.2" | Alias | - | |
| Environment : | Storage Temp. | -40 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | - |
|---|---|---|---|---|
| Viewing Angle | - | Display Mode | ASV, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | - | |
| Color Performance : | White Coordinate | - | Display Colors | 262K (6-bit) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
