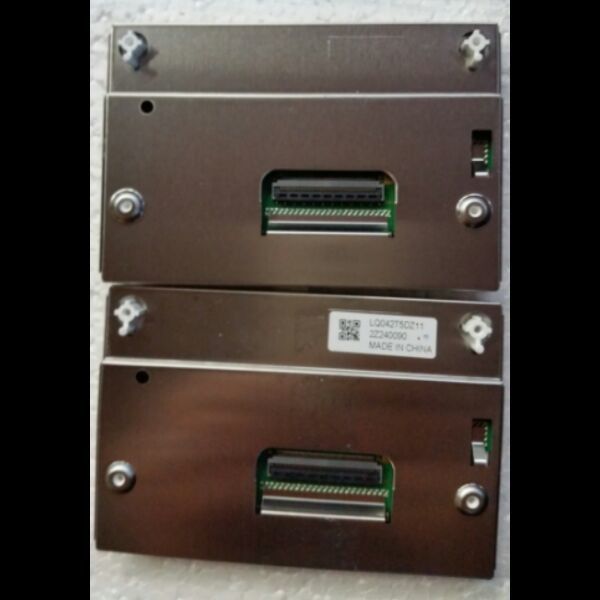

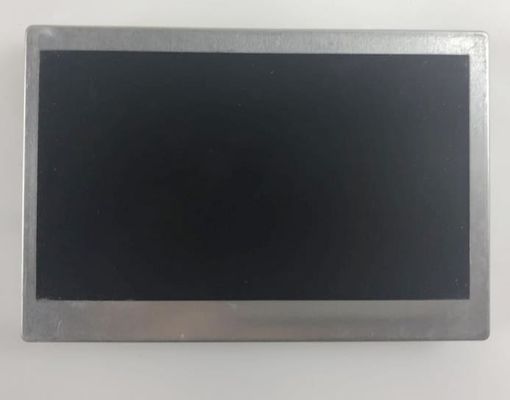

Product Details:
|
| Brand: | Sharp | Model: | LQ042T5DZ11 |
|---|---|---|---|
| Luminance: | 500cd/m² | Diagonal Size: | 4.2 Inch |
| Light Source: | WLED , 10K Hours , With LED Driver | Interface Type: | CMOS (1 Ch, 6-bit) , 50 Pins Connector |
| Pixel Format: | 480×272RGB | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ042 Series LQ042T5DZ13K LQ042T5DZ13A LQ042T5DZ11 LQ042T5DZ07
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ042T5DZ11 | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 15/5 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transmissive | 2000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 8022K | 262K (6-bit) | X:0.290; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 64% | 86% | 67% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 67% | 48% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : |
1.18 (Typ)(9 points) |
||
| Panel Size : | 4.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480×272(RGB) [WQVGA] | RGB Horizontal Stripe | 0.1935×0.1935 [131PPI] | 0.1935×0.0645 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 92.88(H) × 52.632(V) | - | 102.5(H) × 69(V) | 12.0 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Mounting : | Rear mounting holes (4-Ф2.0) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 120g (Typ.) | - | Antiglare, Reflection 1.5% (Typ.) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 10K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 7.0/13.5/18.0V (Min./Typ./Max.) | 150/400mA (Typ./Max.) | |||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 10/60mA (Typ./Max.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | CMOS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | FH41-50S-0.5SH(05) | 0.5 mm | 50 pins | 1 pcs | ||
LQ042T5DZ11 supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 92.88(W)×52.632(H) mm, outline size of 102.5(W)×69(H) mm, with surface treament of Antiglare, Reflection 1.5% (Typ.), net weight of 120g (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ042T5DZ11 can provides 500 cd/m² display brightness 2000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 64% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With LED Driver.
