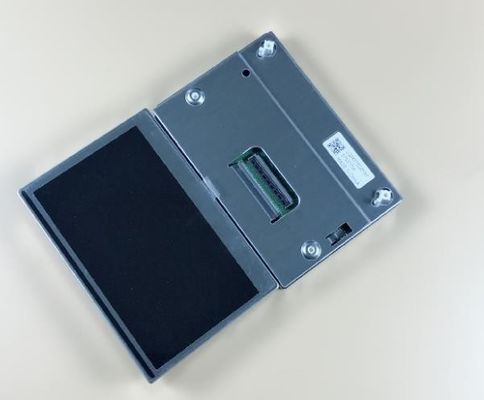

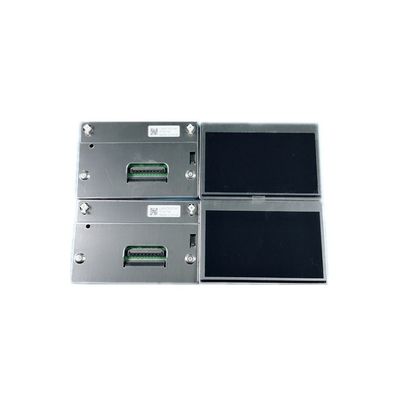

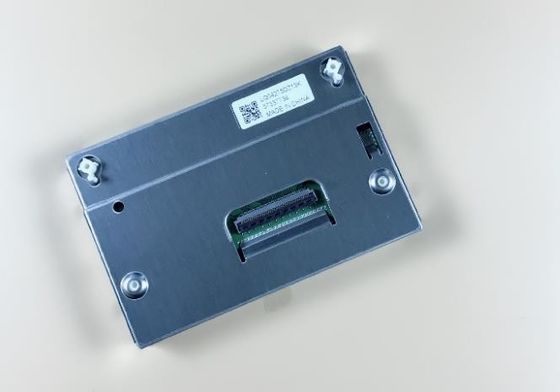

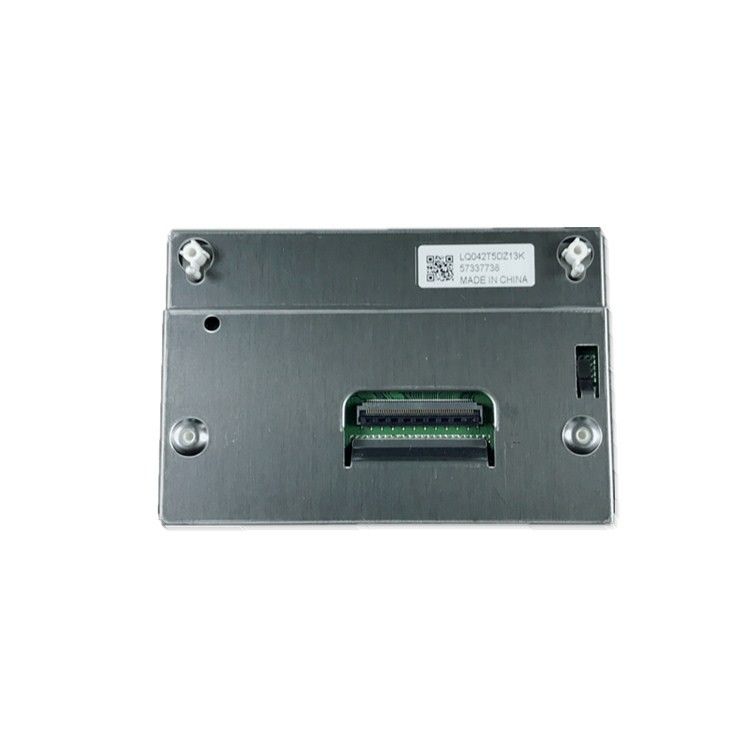

Product Details:
|
| Panel Model: | LQ042T5DZ13K | Panel Brand: | Sharp |
|---|---|---|---|
| Resolution: | 480×272(RGB), WQVGA, 131PPI | Brightness: | 500 Cd/m² (Typ.) |
| Panel Size: | 4.2INCH | Pixel Format: | RGB Horizontal Stripe |
| Lamp Type: | WLED | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ042 Series LQ042T5DZ13K LQ042T5DZ13A LQ042T5DZ11 LQ042T5DZ07
| Screen Size : | 4.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480×272(RGB), WQVGA | RGB Horizontal Stripe | 0.1935×0.0645 mm | 0.1935×0.1935 mm [131PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 92.88×52.632 mm | 94.48×54.27 mm | 102.5×69 mm | 12±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 120g (Typ.) | - | Antiglare, Antireflection | ||
| Holes & Brackets : | Rear mounting Poles (4-Φ2) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | ASV, Normally Black, Transmissive | 2000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 15/5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8022K | 262K (6-bit) | X:0.290; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 65% | 86% | 67% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 67% | 48% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.18 (Typ.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in panel signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 7.0/13.5/18.0V (Min./Typ./Max.) | 150/400mA (Typ./Max.) | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 10/60mA (Typ./Max.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | FH41-50S-0.5SH(05) | 1 pcs | 50 pins | 0.5 mm | ||
LQ042T5DZ13K supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 92.88(W)×52.632(H) mm, outline size of 102.5(W)×69(H)×12.3(D) mm, viewing area size of 94.48(W)×54.27(H) mm, with surface treament of Antiglare, Antireflection, net weight of 120g (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ042T5DZ13K can provides 500 cd/m² display brightness 2000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/5 (Typ.)(Tr/Td) ms.
