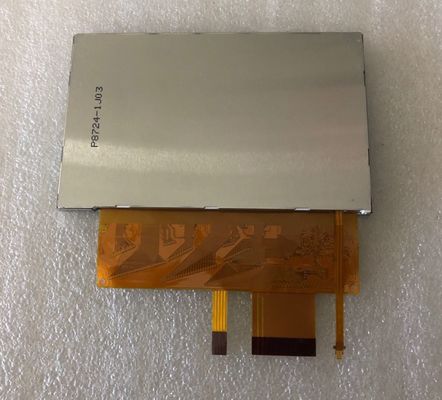

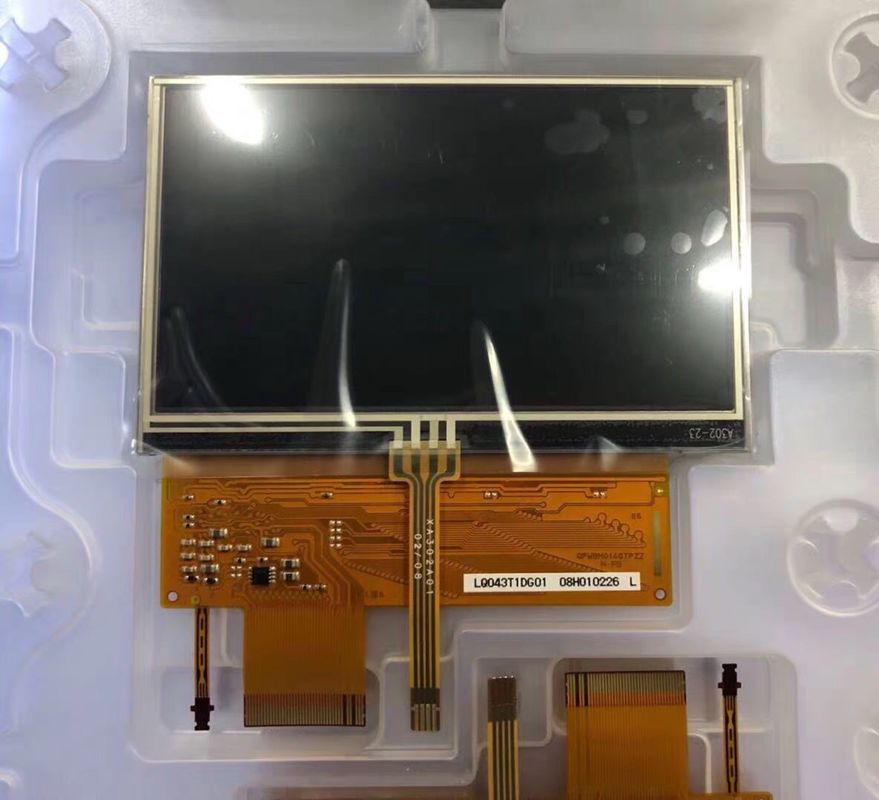

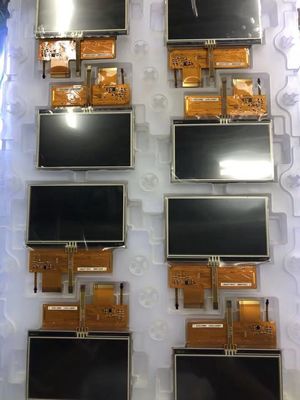

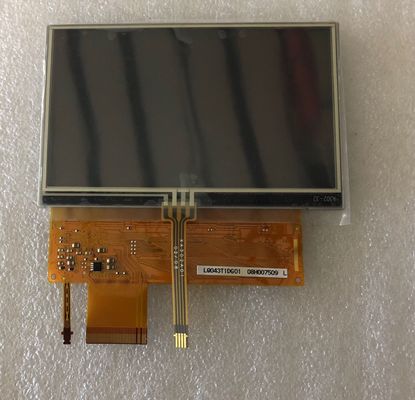

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ043T1DG01 |
|---|---|---|---|
| Screen Size: | 4.3 Inch | Luminance: | 500 Cd/m² (Typ.) |
| Pixel Number: | 480(RGB)×272 (WQVGA) 128PPI | Signal Type: | Parallel RGB (1 Ch, 8-bit) , FPC 40 Pins |
| Backlight: | 9S1P WLED , No Driver | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T1DG03B LQ043T1DG03A LQ043T1DG03 LQ043T1DG02 LQ043T1DG01
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ043T1DG01 | a-Si TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 85 °C | - |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 60/60/40/60 (Typ.)(CR≥10) | 30/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6551K | 16.7M (8-bit) | X:0.310; Y:0.340 | |
| White Uniformity : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Screen Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×272, WQVGA | RGB Vertical Stripe | 0.066×0.198 mm | 0.198×0.198 mm [128PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 95.04×53.856 mm | - | 105.5×67.2 mm | 5.05 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| 1 point | - | Without touch controller | 4-wire Resistive Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 62.0g (Typ.) | - | Antiglare, Hard coating (2H) | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC/AVDD) | 0.5/8.0mA (Typ.)(ICC/IAVDD) | - | ||||
| Voltage for Display Signals : | VIL≤0.2VCC; VIH≥0.8VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 8-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | DRGB-40P1C8B-060B | |||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 9S1P | 1 string | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 28.3/31.5V (Typ./Max.) | 20mA (Typ.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | FPC | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 4 pins | 0.5 mm | BLE-4PINS-CNNA | |||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
