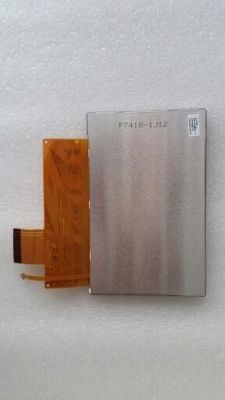

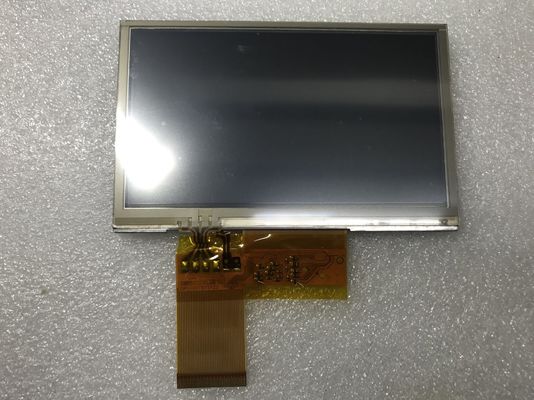

Product Details:
|
| Panel Model: | LQ043T1DG02 | Panel Brand: | Sharp |
|---|---|---|---|
| Viewing Angle: | 60/60/40/60 | Panel Size: | 4.3" |
| Brightness: | 600 Cd/m² (Typ.) | Resolution: | 480(RGB)×272, WQVGA, 128PPI |
| Lamp Type: | 9S1P WLED , Without Driver | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 85 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T1DG03B LQ043T1DG03A LQ043T1DG03 LQ043T1DG02 LQ043T1DG01
| Pixel Features : | Resolution | 480(RGB)×272, WQVGA | Dot Pitch(mm) | 0.066×0.198 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.198×0.198 (H×V) [128PPI] | |
| Mechanical Size : | Active Area(mm) | 95.04(H) × 53.856(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 105.5(H) × 67.2(V) | Depth(mm) | 3.95 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 48.5g (Typ.) | Treatment | - |
| Basic Information : | Luminance(cd/m²) | 600 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 30/30 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.320; Y:0.340 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6066K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.)(VCC/AVDD) | Current Supply | 0.5/8.0mA (Typ.)(ICC/IAVDD) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 8-bit) | Signal Voltage | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | DRGB-40P1C8B-060B | |||
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 9S1P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 28.3/31.5V (Typ./Max.) | Current Supply | 20mA (Typ.) | ||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 4 pins | 0.5 mm | BLE-4PINS-CNNA | |||
| Backlight Driver : | No | |||||
