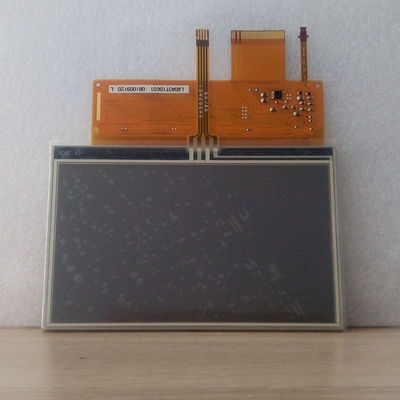

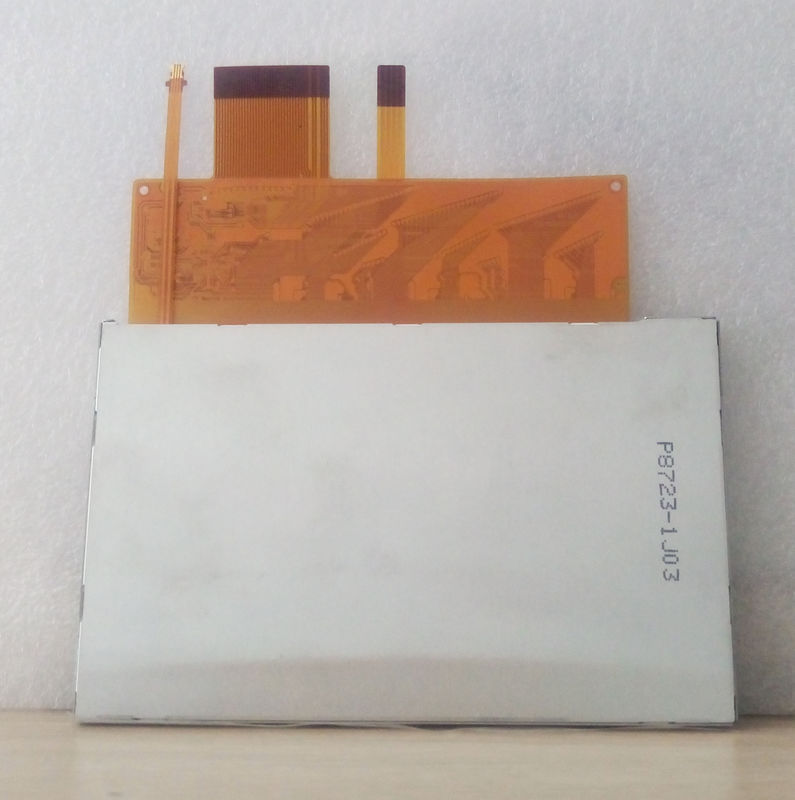

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ043T1DG03A |
|---|---|---|---|
| Brightness: | 500 Cd/m² (Typ.) | Panel Size: | 4.3INCH |
| Resolution: | 480(RGB)×272, WQVGA, 128PPI | Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 40 Pins FPC |
| Lamp Type: | 9S1P WLED , 7K Hours , Without Driver | Environment: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 85 °C |
| High Light: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T1DG03B LQ043T1DG03A LQ043T1DG03 LQ043T1DG02 LQ043T1DG01
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ043T1DG03A | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -10 ~ 70 °C | -30 ~ 85 °C | - |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/20/55 (Typ.)(CR≥10) | 6 o'clock | 30/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6551K | 16.7M (8-bit) | X:0.310; Y:0.340 | |
| Luminance Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 4.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 480(RGB)×272, WQVGA | RGB Vertical Stripe | 0.066×0.198 mm | 0.198×0.198 mm [128PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 95.04×53.856 mm | 98.7×57.5 mm | 105.5×67.2 mm | 5.05±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| 1 point | Without touch controller | - | 4-wire Resistive Touch | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 62.0g (Typ.) | Antiglare, Hard coating (2H) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.5/8.0mA (Typ.)(ICC/IAVDD) | 3.3/5.0V (Typ.)(VCC/AVDD) | - | ||||
| Voltage for Display Signals : | VIL≤0.2VCC; VIH≥0.8VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | DRGB-40P1C8B-060B | |||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 9S1P | 7K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 28.8/31.5V (Typ./Max.) | 123mW (Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | FPC | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 4 pins | BLE-4PINS-CNNA | |||
LQ043T1DG03A supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×5.35(D) mm, viewing area size of 98.7(W)×57.5(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 62.0g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ043T1DG03A can provides 500 cd/m² display brightness 300:1 transimissive contrast ratio, 45/45/20/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 7K hours, external backlight driver is additionally needed.
