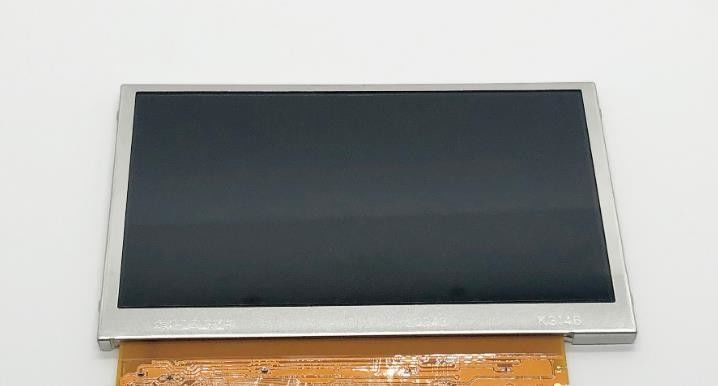

Product Details:
|
| Manufacturer: | SHARP | Model Name: | LQ043T1DG03B |
|---|---|---|---|
| Screen Size: | 4.3 Inch | Pixel Number: | 480(RGB)×272 (WQVGA) 128PPI |
| Backlight: | 9S1P WLED , 7K Hours , No Driver | Signal Type: | Parallel RGB (1 Ch, 8-bit) , 40 Pins FPC |
| Luminance: | 500 Cd/m² (Typ.) | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -10 ~ 70 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T1DG03B LQ043T1DG03A LQ043T1DG03 LQ043T1DG02 LQ043T1DG01
| Pixel Features : | Number of Pixel | 480(RGB)×272 [WQVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.066×0.198 mm | Pixel Pitch(W×H) | 0.198×0.198 mm [128PPI] | |
| Physical Size : | Active Viewing | 95.04(W)×53.856(H) mm | Overall Dim. | 105.5(W)×67.2(H) mm |
| Bezel Opening | 98.7(W)×57.5(H) mm | Overall Depth | 5.05±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||

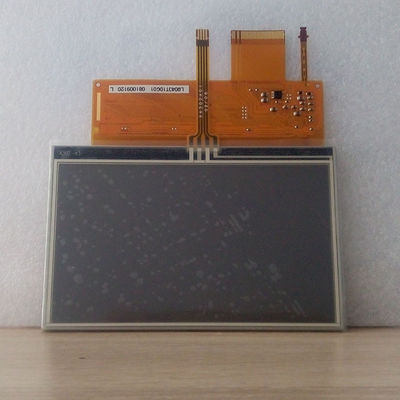

| Touchscreen : | TP Controller | Without touch controller | TP Interface | - |
| Touch Points | 1 point | TP Technology | 4-wire Resistive Touch | |
| Other Detail : | Mass | 62.0g (Typ.) | Surface | Antiglare, Hard coating (2H) |
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 30/30 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 45/45/20/55 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.340 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6551K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| Signal Electrical : | Input Current | 0.5/8.0mA (Typ.)(ICC/IAVDD) | Input Voltage | 3.3/5.0V (Typ.)(VCC/AVDD) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 8-bit) | |||
| Logic Voltage for Signals : | VIL≤0.2VCC; VIH≥0.8VCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | DRGB-40P1C8B-060B | |||
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 9S1P | Life | 7K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 28.8/31.5V (Typ./Max.) | ||
| Consumption | 123mW (Max.) | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 4 pins | BLE-4PINS-CNNA | |||
| Backlight Driver : | No | |||||
