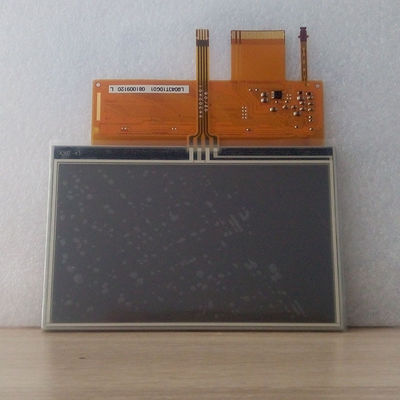

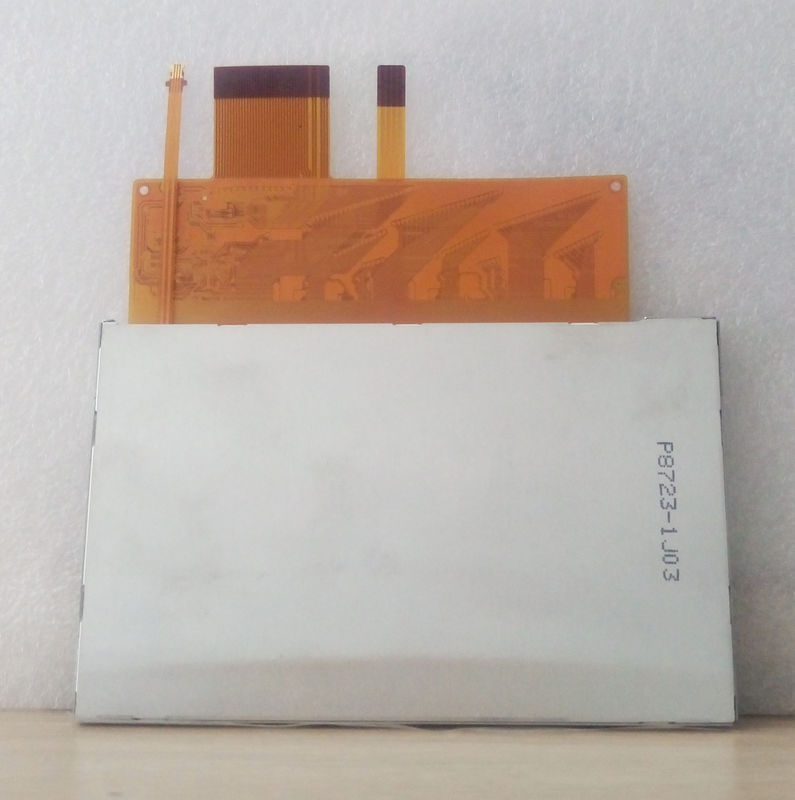

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ043T1DG03 |
|---|---|---|---|
| Resolution: | 480(RGB)×272, WQVGA, 128PPI | Panel Size: | 4.3INCH |
| Lamp Type: | 9S1P WLED , 7K Hours , Without Driver | Brightness: | 500 Cd/m² (Typ.) |
| Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 40 Pins FPC | Environment: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 85 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T1DG03B LQ043T1DG03A LQ043T1DG03 LQ043T1DG02 LQ043T1DG01
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 45/45/20/55 (Typ.)(CR≥10) | 30/30 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6551K | 16.7M (8-bit) | X:0.310; Y:0.340 | |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480(RGB)×272 [WQVGA] | RGB Vertical Stripe | 0.198×0.198 [128PPI] | 0.066×0.198 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 95.04(H) × 53.856(V) | 98.7(H) × 57.5(V) | 105.5(H) × 67.2(V) | 5.05±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| Without touch controller | 1 point | - | 4-wire Resistive Touch | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 62.0g (Typ.) | - | Antiglare, Hard coating (2H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 9S1P | 1 string | 7K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 28.8/31.5V (Typ./Max.) | 20mA (Typ.) | 123mW (Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 4 pins | 1 pcs | BLE-4PINS-CNNA | |||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC/AVDD) | 0.5/8.0mA (Typ.)(ICC/IAVDD) | - | ||||
| Voltage for Display Signals : | VIL≤0.2VCC; VIH≥0.8VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 8-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C8B-060B | |||
LQ043T1DG03 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×5.35(D) mm, viewing area size of 98.7(W)×57.5(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 62.0g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ043T1DG03 can provides 500 cd/m² display brightness 300:1 transimissive contrast ratio, 45/45/20/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 7K hours, external backlight driver is additionally needed.
