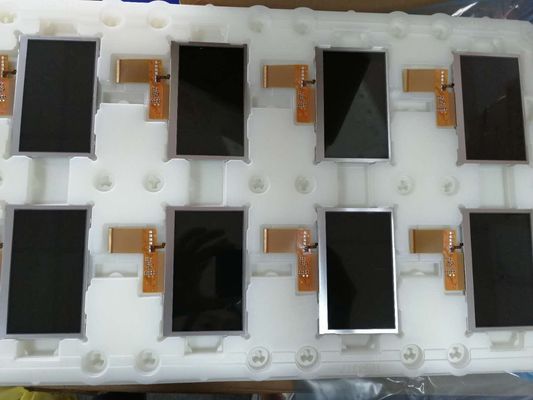

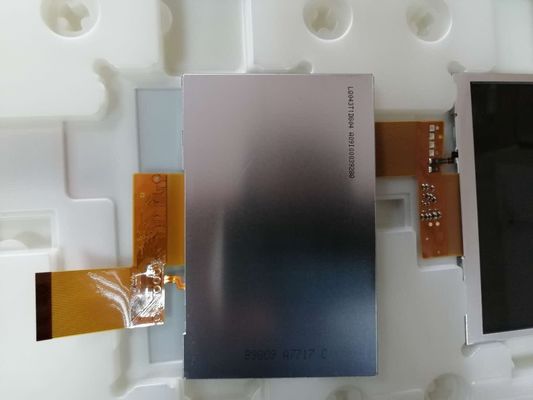

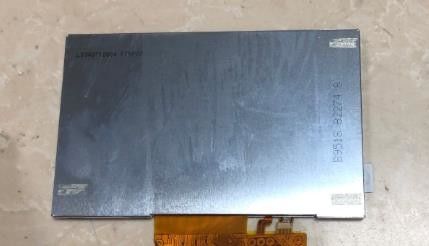

Product Details:
|
| Panel Model: | LQ043T1DG04 | Panel Size: | 4.3INCH |
|---|---|---|---|
| Brightness: | 350 Cd/m² (Typ.) | Resolution: | 480×272(RGB), WQVGA, 128PPI |
| Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 40 Pins FPC | Lamp Type: | 9S1P WLED , Without Driver |
| Viewing Angle: | 80/80/60/80 | Environment: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T1DG28 LQ043T1DG04 LQ043T1DG03B LQ043T1DG03A
| Pixel Features : | Resolution | 480×272(RGB), WQVGA | Dot Pitch(mm) | 0.198×0.066 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Horizontal Stripe | Pixel Pitch(mm) | 0.198×0.198 (H×V) [128PPI] | |
| Mechanical Size : | Active Area(mm) | 95.04(H) × 53.856(V) | Bezel Area(mm) | 98.7(H) × 57.5(V) |
| Outline Dim.(mm) | 105.5(H) × 67.2(V) | Depth(mm) | 2.95 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 8/20 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.340 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6551K | White Uniformity | - |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.)(VCI) | Current Supply | 15/25mA (Typ./Max.)(IVCI) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 8-bit) | Signal Voltage | 0≤VIL≤0.2VCI; 0.8VCI≤VIH≤VCI | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | DRGB-40P1C8B-130A | |||
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 9S1P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 28.8/31.5V (Typ./Max.) | Current Supply | 24mA (Typ.) | ||
| Consumption | 691mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
LQ043T1DG04 supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H) mm, viewing area size of 98.7(W)×57.5(H) mm. As a TN, Normally White, Transmissive LCM product, LQ043T1DG04 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 8/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
