Product Details:
|

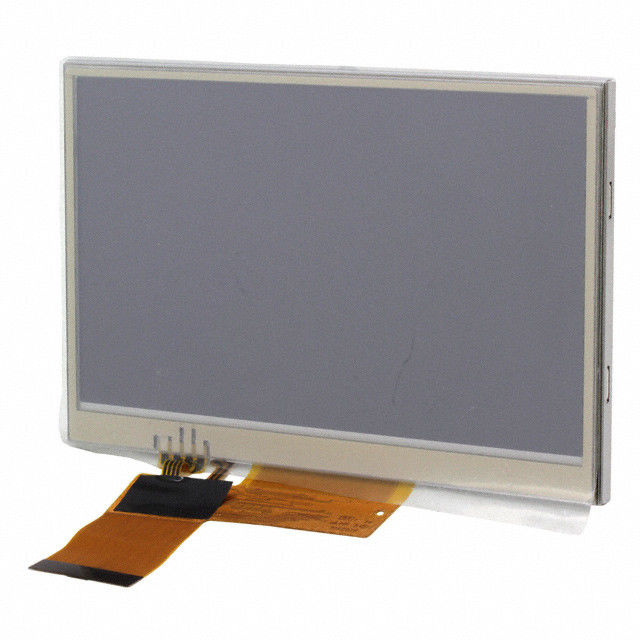

| Brand: | Sharp | Model: | LQ043T1DG28 |
|---|---|---|---|
| Luminance: | 300 Cd/m² (Typ.) | Diagonal Size: | 4.3 Inch |
| Light Source: | WLED [9S1P] , 10K Hours , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 6-bit) + SPI , 67 Pins FPC |
| Pixel Format: | 480×272(RGB) [WQVGA] 128PPI | Environment: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T1DG28 LQ043T1DG04 LQ043T1DG03B LQ043T1DG03A
| Screen Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480×272(RGB), WQVGA | RGB Horizontal Stripe | 0.198×0.066 mm | 0.198×0.198 mm [128PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 95.04×53.856 mm | - | 105.5×67.2 mm | 4.2±0.25 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| - | - | Without touch controller | 4-wire Resistive Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 51.0g | - | Antiglare, Hard coating (2H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 80/80/55/80 (Typ.)(CR≥10) | 22/8 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6551K | 262K (6-bit) | X:0.310; Y:0.340 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10K(Min.) | 9S1P | 1 string | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 28.8/31.5 (Typ./Max.) | 20mA (Typ.) | 576mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/3.3V (Typ.)(IOVCC/VCC) | 0.1/16mA (Typ.)(IOICC/ICC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2IOVCC; 0.8IOVCC≤VIH≤IOVCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) + SPI | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 67 pins | 0.3 mm | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
