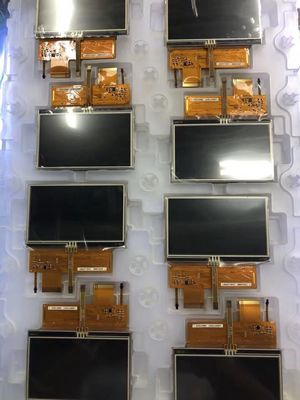

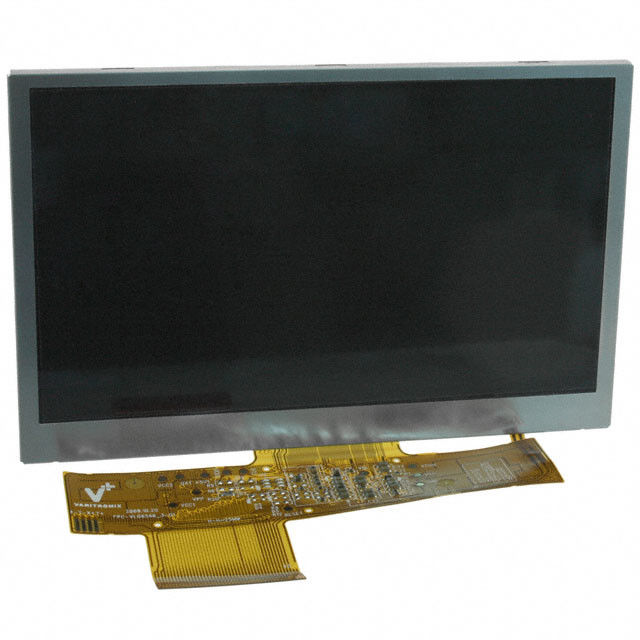

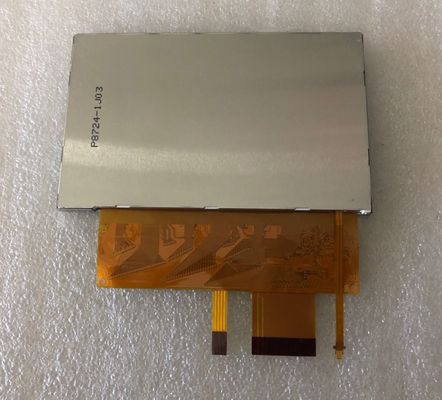

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ043T1DG29 |
|---|---|---|---|
| Resolution: | 480×272(RGB), WQVGA, 128PPI | Panel Size: | 4.3INCH |
| Lamp Type: | 9S1P WLED , 10K Hours , Without Driver | Signal Interface: | Parallel RGB (1 Ch, 6-bit) + SPI , 67 Pins FPC |
| Brightness: | 360 Cd/m² (Typ.) | Environment: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 85 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T3DG02 LQ043T3DG01 LQ043T1DG59 LQ043T1DG29
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 360 (Typ.) | 80/80/55/80 (Typ.)(CR≥10) | 22/8 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6551K | 262K (6-bit) | X:0.310; Y:0.340 |
| Panel Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480×272(RGB) [WQVGA] | RGB Horizontal Stripe | 0.198×0.198 [128PPI] | 0.198×0.066 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 95.04(H) × 53.856(V) | - | 105.5(H) × 67.2(V) | 3.1±0.2 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 36.0g (Typ.) | - | Antiglare, Hard coating (2H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 9S1P | 1 string | 10K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 28.8/31.5 (Typ./Max.) | 20mA (Typ.) | 576mW (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/3.3V (Typ.)(IOVCC/VCC) | 0.1/16mA (Typ.)(IOICC/ICC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2IOVCC; 0.8IOVCC≤VIH≤IOVCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) + SPI | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.3 mm | 67 pins | 1 pcs | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
