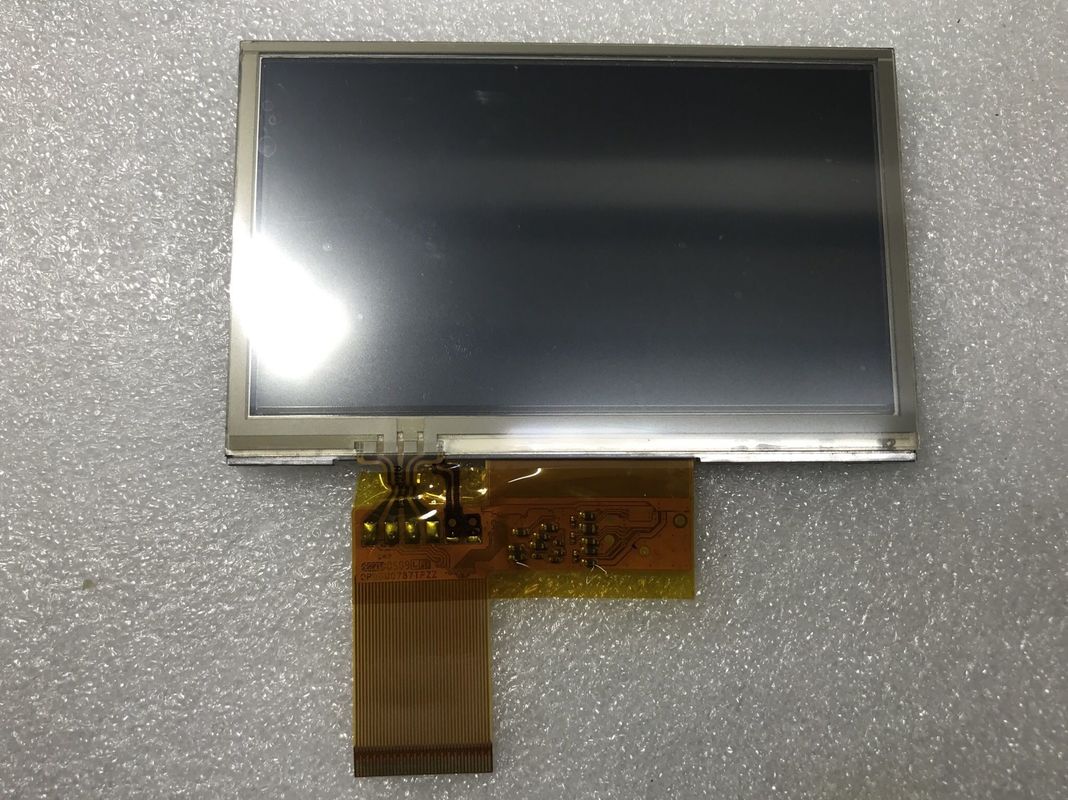

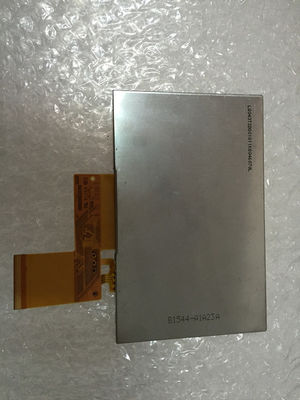

Product Details:
|
| Brand: | Sharp | Model: | LQ043T1DG59 |
|---|---|---|---|
| Diagonal Size: | 4.3 Inch | Luminance: | 500 Cd/m² (Typ.) |
| Light Source: | WLED [9S1P] , 15K Hours , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 8-bit) , 45 Pins FPC |
| Pixel Format: | 480(RGB)×272 [WQVGA] 128PPI | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| High Light: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T3DG02 LQ043T3DG01 LQ043T1DG59 LQ043T1DG29
| Basic Detail : | Manufacturer | SHARP | Model Name | LQ043T1DG59 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | XR0430010 | |
| Panel Size | 4.3 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
| Pixel Features : | Number of Pixel | 480(RGB)×272 [WQVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.066×0.198 mm | Pixel Pitch(W×H) | 0.198×0.198 mm [128PPI] | |
| Physical Size : | Active Viewing | 95.04(W)×53.856(H) mm | Overall Dim. | 105.5(W)×67.2(H) mm |
| Bezel Opening | 100.8(W)×57.5(H) mm | Overall Depth | 2.9±0.2 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | TBD | Surface | Antiglare, Hard coating (2H) |
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | No | Amount | 9S1P | Life | 15K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 28.8/31.5V (Min./Max.) | ||
| Consumption | 576mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 16 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 65/65/50/55 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| Signal Electrical : | Input Current | 18/22mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 72.6mW (Typ.) | Signal Interface | Parallel RGB (1 ch, 8-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 45 pins | ||||
LQ043T1DG59 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×3.1(D) mm, viewing area size of 100.8(W)×57.5(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, LQ043T1DG59 can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 65/65/50/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 42% (NTSC). This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed.
