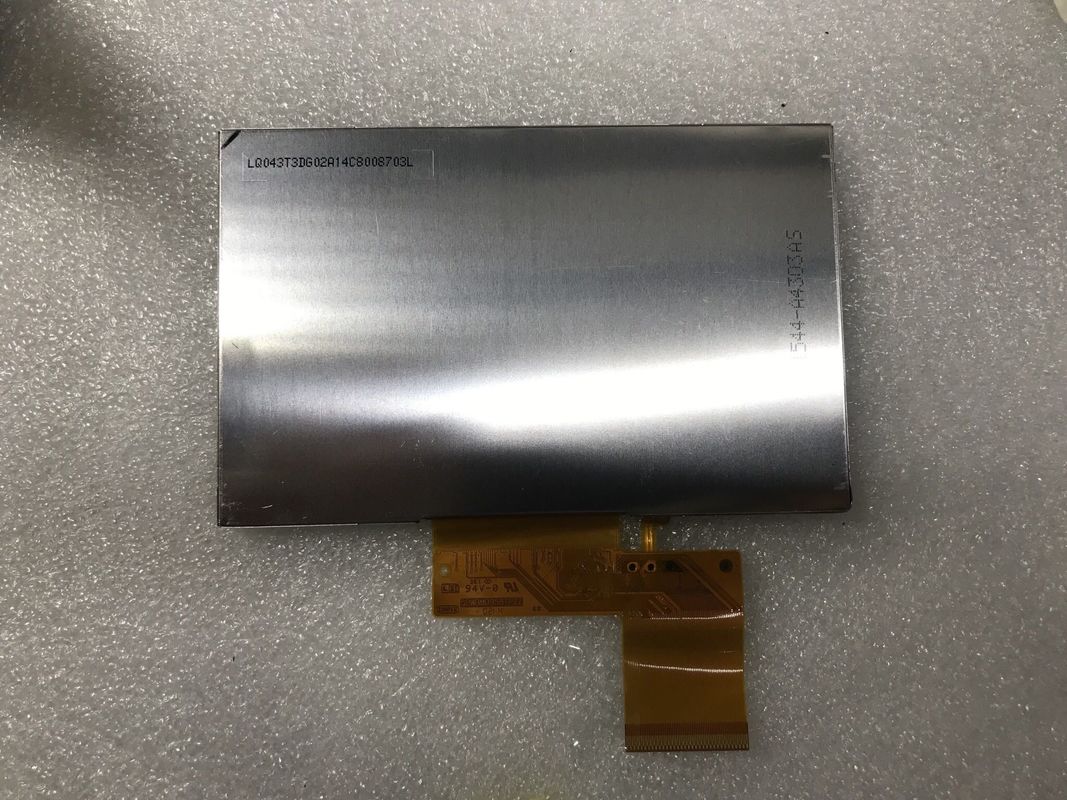

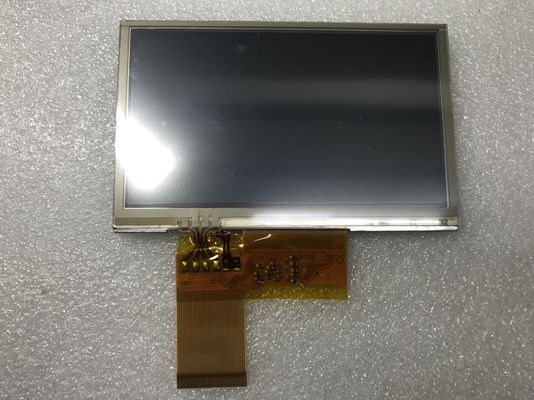

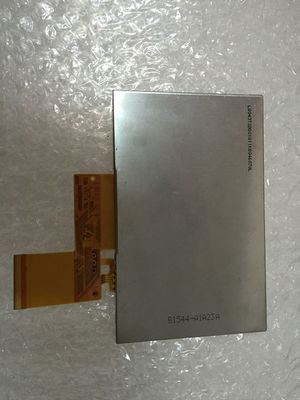

Product Details:
|
| Model Name: | LQ043T3DG02 | Manufacturer: | Sharp |
|---|---|---|---|
| Luminance: | 480 (Typ.)(cd/m²) | Pixel Number: | 480×272(RGB) |
| Screen Size: | 4.3 Inch | Signal Type: | Parallel RGB (1 Ch, 6-bit) + SPI , 67 Pins FPC |
| Backlight: | 9S1P WLED | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -10 ~ 70 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T3DG02 LQ043T3DG01 LQ043T1DG59 LQ043T1DG29
| Basic Information : | Luminance | 480 cd/m² (Typ.) | Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 8/21 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.340 | Support Color | 262K (6-bit) |
| Color Temperature | 6551K | White Uniformity | - |
| Pixel Features : | Number of Pixel | 480×272(RGB) [WQVGA] | Arrangement | RGB Horizontal Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.198×0.066 mm | Pixel Pitch(W×H) | 0.198×0.198 mm [128PPI] | |
| Physical Size : | Active Viewing | 95.04(W)×53.856(H) mm | Overall Dim. | 105.5(W)×67.2(H) mm |
| Bezel Opening | - | Overall Depth | 3.95 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 55.0g (Typ.) | Surface | Antiglare, Hard coating (2H) |
| Signal Electrical : | Input Current | 1.0/12.5 mA (Typ.)(IVDDIO/IVCI) | Input Voltage | 3.15/3.15V (Typ.)(VDDIO/VCI) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 67 pins | |||||
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 9S1P | Life | - | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 28.8/31.5V (Typ./Max.) | ||
| Consumption | 576mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
LQ043T3DG02 supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 55.0g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ043T3DG02 can provides 480 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 8/21 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type.
