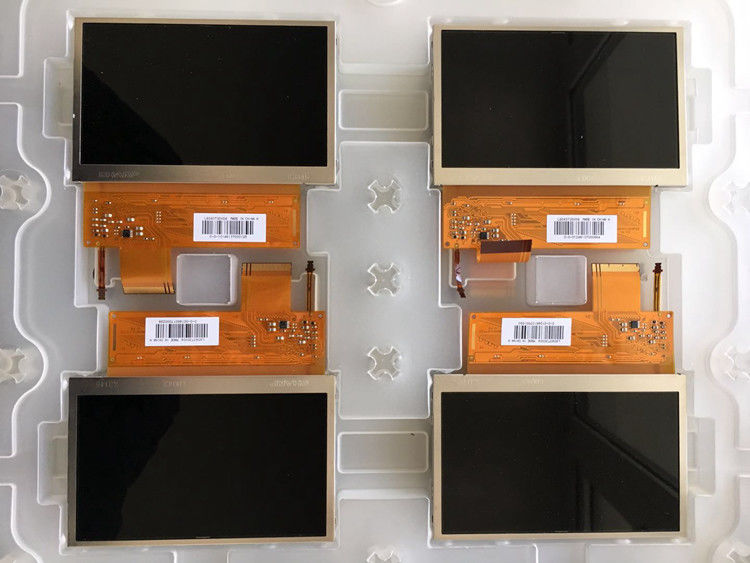

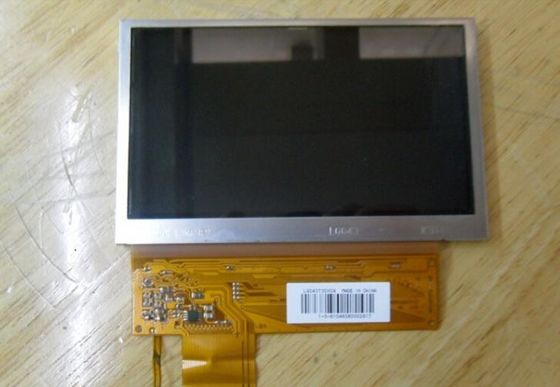

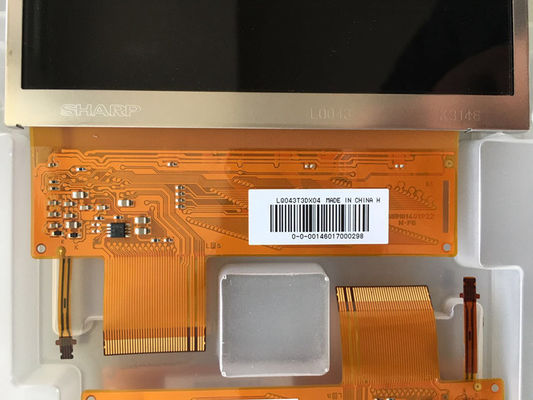

Product Details:
|
| Model Name: | LQ043T3DX04 | Manufacturer: | Sharp |
|---|---|---|---|
| Luminance: | 230 Cd/m² (Typ.) | Screen Size: | 4.3 Inch |
| Pixel Number: | 480(RGB)×272 (WQVGA) 128PPI | Backlight: | 7S1P WLED , No Driver |
| Signal Type: | Parallel RGB (1 Ch, 8-bit) , FPC 40 Pins | Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ043 Series LQ043T3DX0C LQ043T3DX0A LQ043T3DX04 LQ043T3DX03 LQ043T3DX02
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 230 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 30/30 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transmissive | 400 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6546K | 16.7M (8-bit) | X:0.309; Y:0.347 |
| Panel Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480(RGB)×272 [WQVGA] | RGB Vertical Stripe | 0.198×0.198 [128PPI] | 0.066×0.198 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 95.04(H) × 53.856(V) | 98.7(H) × 57.5(V) | 105.5(H) × 67.2(V) | 3.95 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 50.0g (Typ.) | - | Clear, Hard coating | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 7S1P | 1 string | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 24.5/25.8V (Typ./Max.) | 18/28mA (Typ./Max.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 4 pins | 1 pcs | BLE-4PINS-CNNA | |||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 2.5/5.0V (Typ.)(VCC/AVDD) | 1.2/10mA (Typ.)(ICC/AIDD) | - | ||||
| Voltage for Display Signals : | VIL≤0.2VCC; VIH≥0.8VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 8-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C8B-060B | |||
LQ043T3DX04 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H) mm, viewing area size of 98.7(W)×57.5(H) mm, with surface treament of Clear, Hard coating, net weight of 50.0g (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ043T3DX04 can provides 230 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
