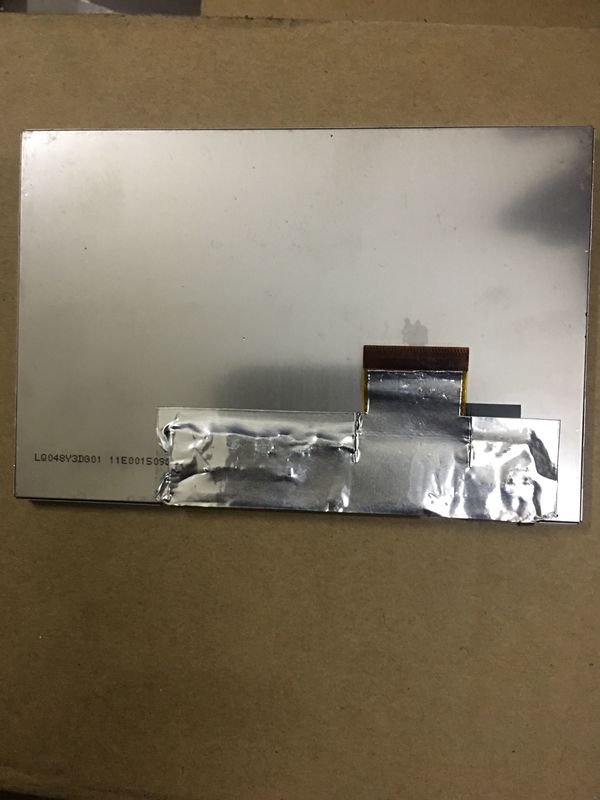

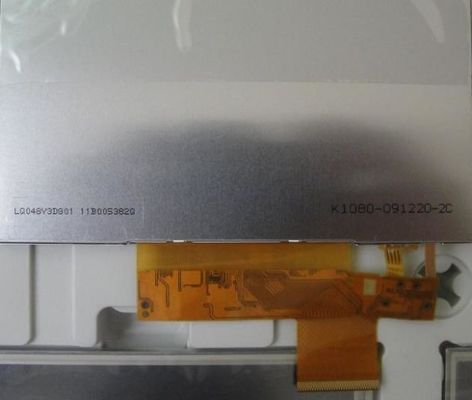

Product Details:
|
| Brand: | Sharp | Model: | LQ048Y3DG01 |
|---|---|---|---|
| Luminance: | 400 Cd/m² (Typ.) | Diagonal Size: | 4.8 Inch |
| Pixel Format: | 800×480(RGB) [WVGA] 194PPI | Light Source: | WLED [9S2P] , W/O Driver |
| Interface Type: | Parallel RGB (1 Ch, 8-bit) + SPI 67 Pins FPC | Environment: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C |
| Highlight: | LVDS TFT LCD Panel,WLED LVDS TFT Touch Panel |
||
LQ048 Series LQ048Y3DH01 LQ048Y3DG02 LQ048Y3DG01
| Basic Information : | Brand | SHARP | Model | LQ048Y3DG01 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 4.8" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -10 ~~ 70 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 800×480(RGB), WVGA | Dot Pitch(mm) | 0.1305×0.0435 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Horizontal Stripe | Pixel Pitch(mm) | 0.1305×0.1305 (H×V) [194PPI] | |
| Mechanical Size : | Active Area(mm) | 104.4(H) × 62.64(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 116.5(H) × 77.9(V) | Depth(mm) | 4.35 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch |
| Other Spec : | Weight | 76.0g | Treatment | Antiglare, Hard coating (2H) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/55/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 30/30 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.340 | Display Colors | 16.2M (6-bit + FRC) |
| Color Temperature | 6551K | White Uniformity | TBD |
| Signal Electrical : | Voltage Supply | 1.8/2.85V (Typ.)(VDDIO/VCI) | Current Supply | 0.02/20.0mA (Typ.)(IDDIO/ICI) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 8-bit) + SPI | Signal Voltage | 0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDIO | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 67 pins | 0.3 mm | ||||
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 9S2P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 28.8/31.5V (Typ./Max.) | Current Supply | 20mA (Typ.) | ||
| Consumption | 1.15W (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
LQ048Y3DG01 supports display 800×480(RGB) (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 104.4(W)×62.64(H) mm, outline size of 116.5(W)×77.9(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 76.0g. As a TN, Normally White, Transmissive LCM product, LQ048Y3DG01 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/55/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors. This product adopted 9S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
