Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ050A5BS01 |
|---|---|---|---|
| Resolution: | 320(RGB)×234, 79PPI | Brightness: | 320 Cd/m² (Typ.) |
| Panel Size: | 5.0" | Signal Interface: | Analog RGB + Composite Video (NTSC/PAL) , 20 Pins Connector |
| Lamp Type: | 1 Pcs CCFL , 10K Hours , Without Driver | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ050 Series LQ050A5BS03 LQ050A5BS02A LQ050A5BS02 LQ050A5BS01
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 320 (Typ.) | 45/45/10/30 (Min.)(CR≥10) | 30/50 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 60 : 1 (Min.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | Full color | X:0.313; Y:0.329 |
| Panel Size : | 5.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×234 | RGB Vertical Stripe | 0.3195×0.3195 [79PPI] | 0.1065×0.3195 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 102.2(H) × 74.8(V) | 107.5(H) × 79.9(V) | 119.4(H) × 89(V) | 12.2/12.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 135±10g | - | - | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | - | 10K(Min.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 610±60V | 6.5/7.0mA (Typ./Max.) | 4.0W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 20/70KHz (Min./Max.) | 1450/1500V (Max.)(Ta=+25/-30℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-02(8.0)VS-1N | 8.0 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.3/13.0/-16.0V (Typ.)(VSH/VGH/VGL) | 50/1.5/7.0mA (Typ.)(ISH/IGH/IGL) | 396.5/624.5mW (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Analog RGB + Composite Video (NTSC/PAL) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 20 pins | 1 pcs | |||||

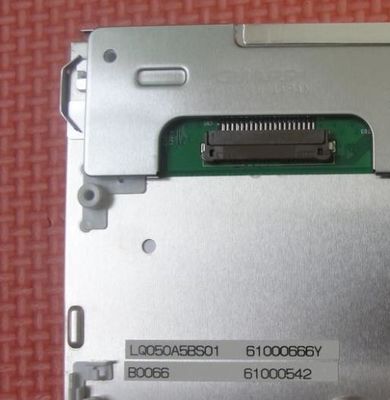

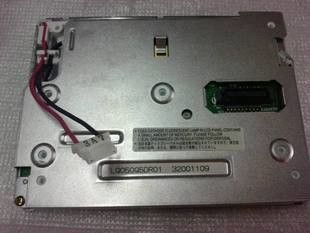

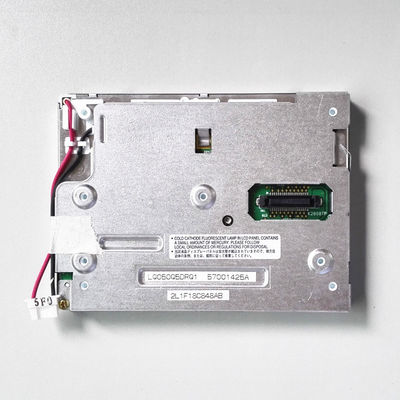

LQ050A5BS01 supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 102.2(W)×74.8(H) mm, outline size of 119.4(W)×89(H)×12.5(D) mm, viewing area size of 107.5(W)×79.9(H) mm, net weight of 135±10g. As a TN, Normally White, Transmissive LCM product, LQ050A5BS01 can provides 320 cd/m² display brightness 60:1 transimissive contrast ratio, 45/45/10/30 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
